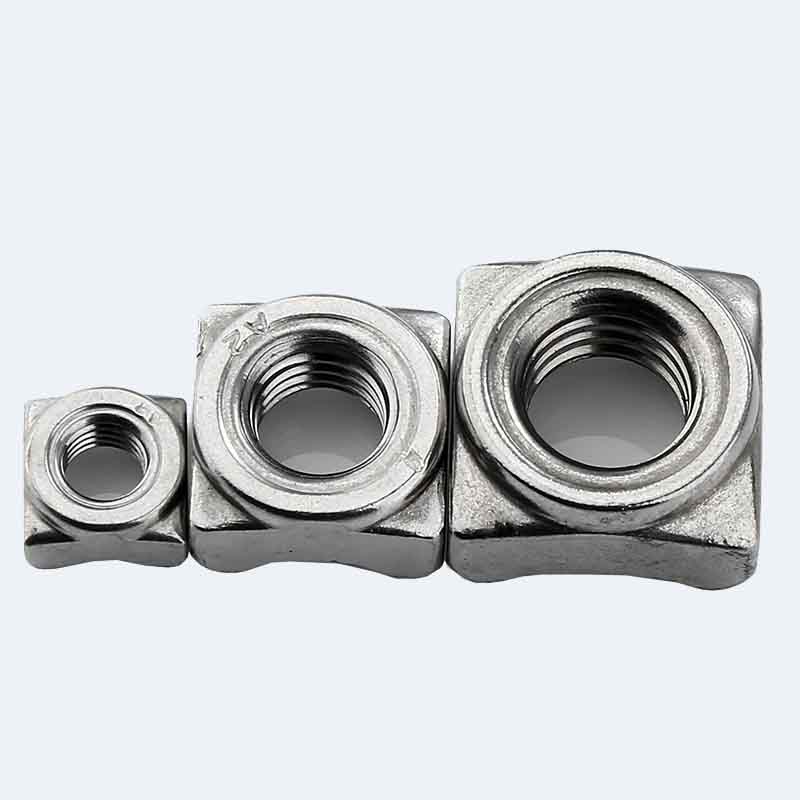

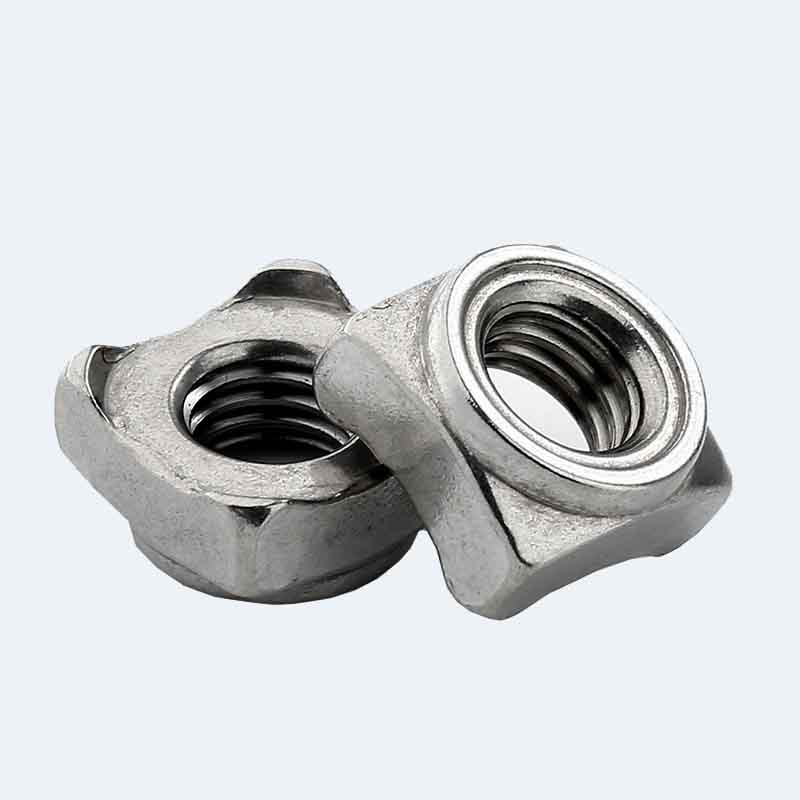

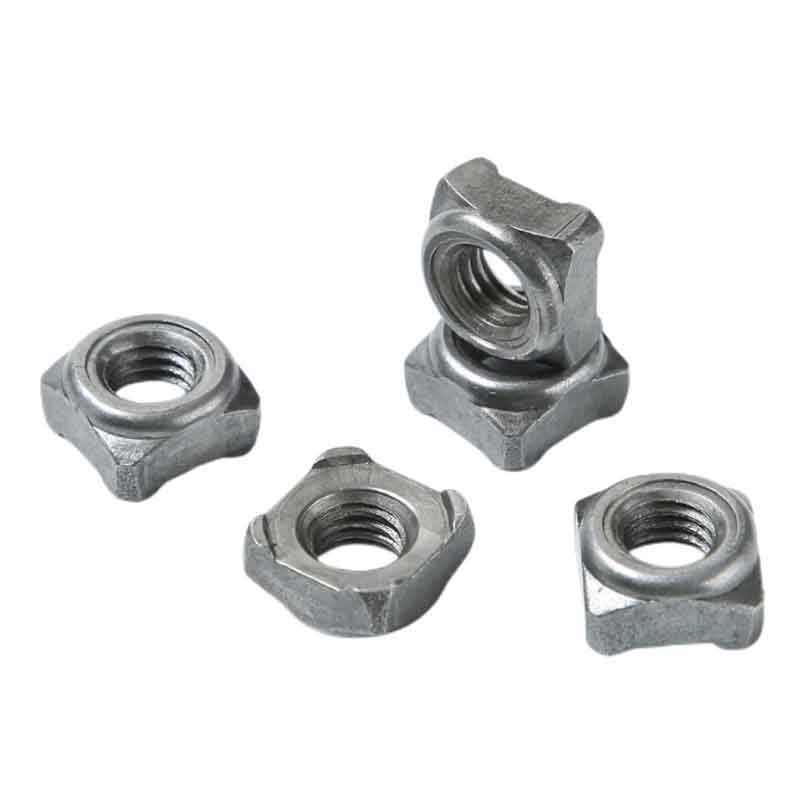

Type A Square Weld Nut

Type A square weld nuts are a type of special welding nuts. They have a square shape and four welding protrusions, which make the welding process more secure. The threads are also standard, allowing them to fit well with the bolts.

Welding installation

A-type square weld nut is easy to weld Just place it at the spot to be welded and use the welding equipment to weld it. Moreover, its four protruding points design ensures uniform force distribution during the welding process, making the weld extremely strong and less likely to loosen.

Type A square weld nuts are very common when welding steel plates using MIG or spot welding methods. Their flat base helps keep them stable during the welding process, while the four small protrusions (sometimes holes) are where they are pressed into the base material. It can quickly establish a strong connection.

The installation of A-type square weld nut is very simple. Clean the position on the metal plate where the nuts need to be installed. Position the nuts correctly. Use the welding gun and weld on the four corners of the nuts or through the base hole (if there is one). The heat will fuse the nut base to the metal plate. After cooling, the internal threads can be used for bolt connections.

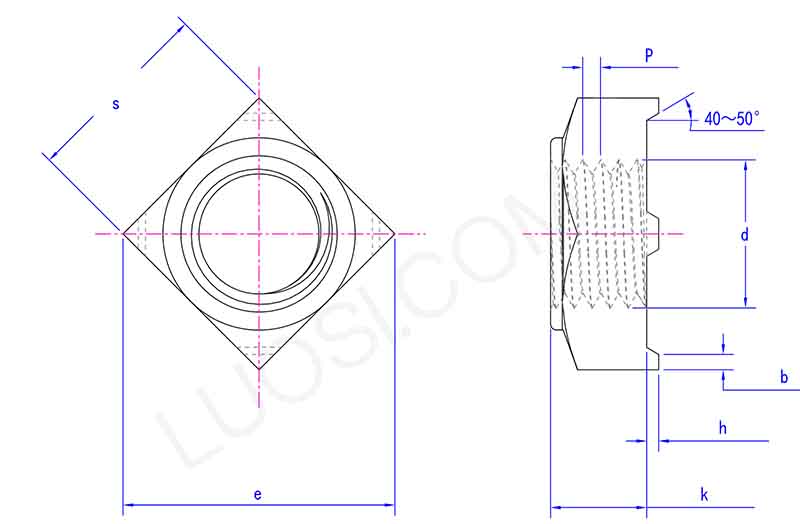

Product parameters

Product Features

The square appearance of type A square weld nuts makes it easier to locate during installation and they are unlikely to rotate. The four welding protrusions have the same height and size, ensuring the quality of the welding. Moreover, its thread accuracy is high and the bolt can be screwed in smoothly without any issues such as not being able to be screwed in or loosening.
