Superior Grip Hexagon Head Bolt

Superior Grip Hexagon Head Bolt can be found in hardware stores, online shops, or industrial supply places—they’re one of the most widely available fasteners out there. Xiaoguo® focuses on durable materials and consistent quality in every product, a commitment that aligns with the reliability standards manufacturers seek for such essential components.

Model:GB/T 1228-2006

Send Inquiry

Product Description

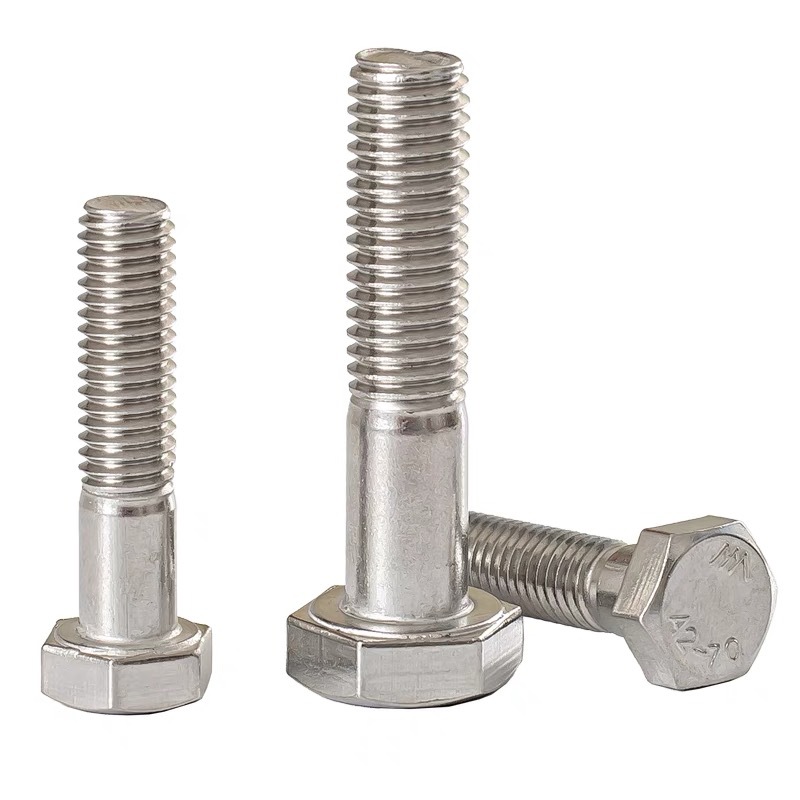

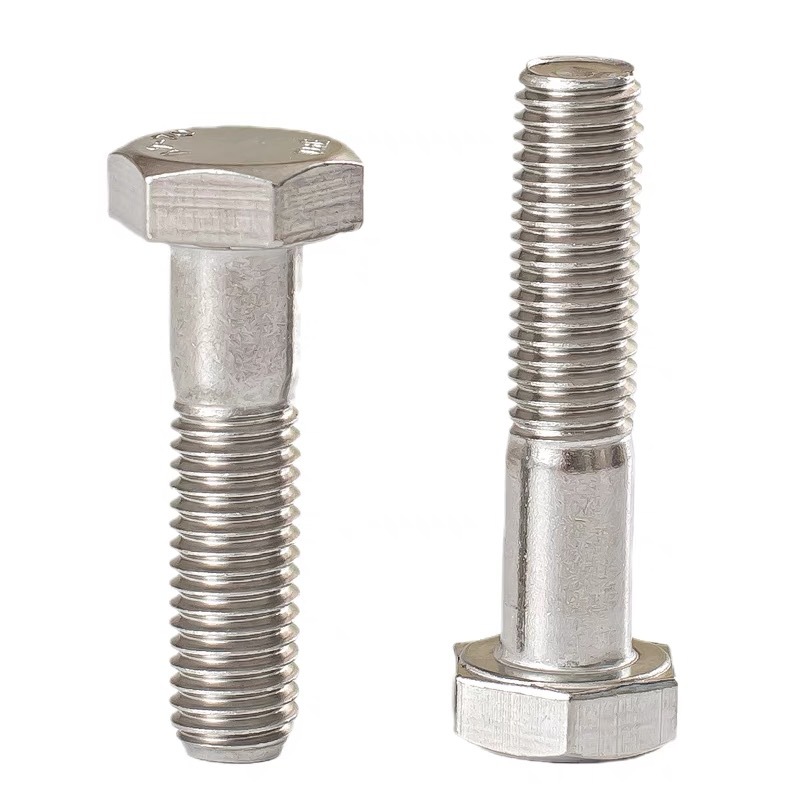

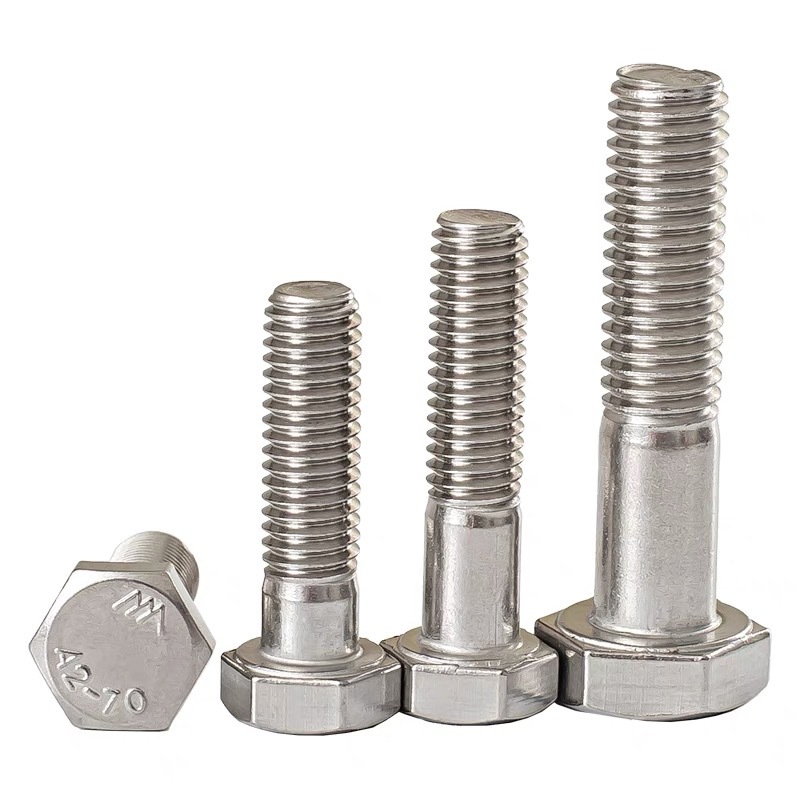

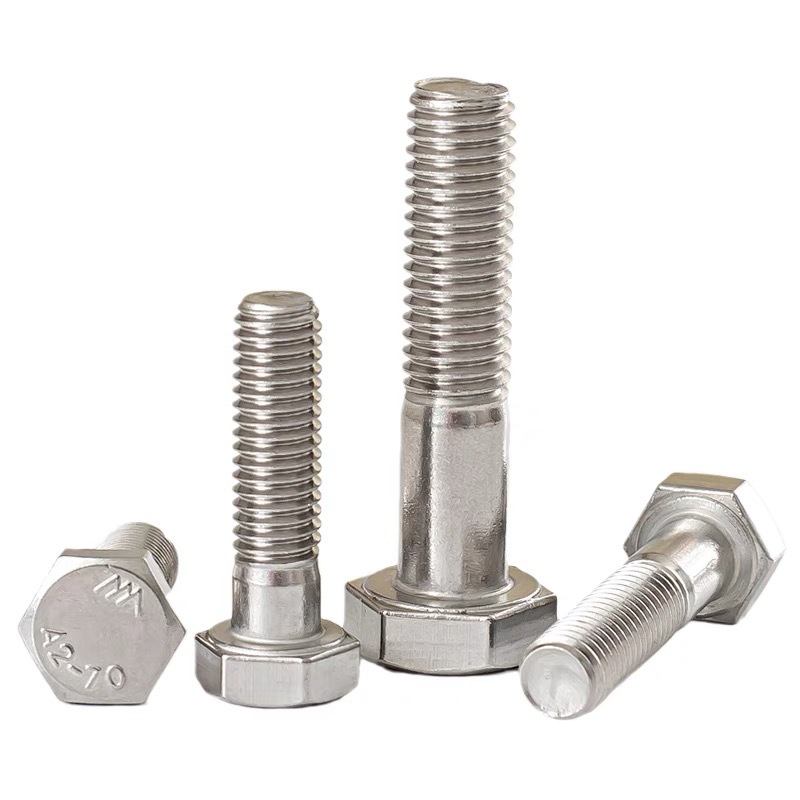

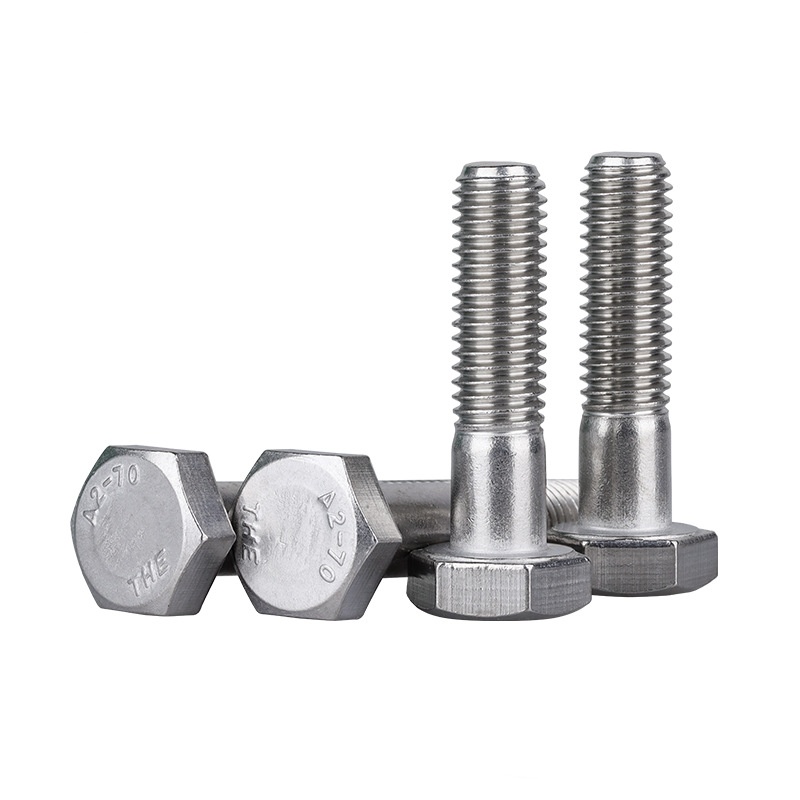

The design of the Superior Grip Hexagon Head Bolt is quite simple: it is basically a threaded rod with a hexagonal head at one end. Most of the rod body is threaded to enable it to be screwed into nuts or threaded holes. The head is slightly wider than the rod body, which makes it easier for a wrench to grip. Some heads have flat sections below them to distribute pressure; others have sloping edges to avoid piercing the material. This design is simple in structure, low in production cost, and convenient to use - that's why you can find this type of bolt being used almost everywhere.

Product details

Superior Grip Hexagon Head Bolt come in different colors depending on their coating. The surface of galvanized bolts is glossy, the main body is silver-gray, and in some cases it has a slight yellowish tint. Compared with pure steel bolts, the zinc coating on its surface can provide better moisture resistance and has a wider range of applicability. For outdoor or areas near water sources, hot-dip galvanized bolts have a rough, dark gray surface and can maintain their appearance for a longer time.The surface also has a black oxide layer, giving it a dark gray or black appearance. This reduces glare and provides some rust resistance. Therefore, the color of the bolt is not only for aesthetics but also indicates its optimal location and estimated service life.

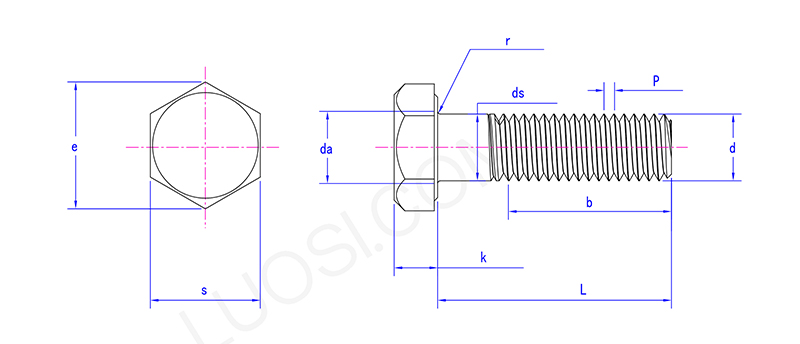

Mon	M12	M16	M20	M22	M24	M27	M30
P	1.75	2	2.5	2.5	3	3	3.5
da max	15.23	19.23	24.32	26.32	28.32	32.84	35.84
ds max	12.43	16.43	20.52	22.52	24.52	27.84	30.84
ds min	11.57	15.57	19.48	21.48	23.48	26.16	29.16
e min	22.78	29.56	37.29	39.55	45.2	50.85	55.37
k max	7.95	10.75	13.4	14.9	15.9	17.9	19.75
k min	7.05	9.25	11.6	13.1	14.1	16.1	17.65
r min	1	1	1.5	1.5	1.5	2	2
s max	21	27	34	36	41	46	50
s min	20.16	26.16	33	35	40	45	49

Comply with international standards

We have been producing Superior Grip Hexagon Head Bolt that comply with major international standards for some time now. These standards include DIN 933/931 (which is the same as ISO 4014/4017), ANSI B18.2.1, and the performance levels mentioned in ISO 898-1.Please specify the standard and specific specifications you require, such as "DIN 933 M10 x 50 - 8.8", which includes the standard number, model, size and performance level, so that you can accurately match your needs.

We ensure that these Superior-Grip Hexagon head bolt fully meet all dimensions and strength requirements. This is crucial for your export quality inspection and to ensure their safety in the final assembly.
