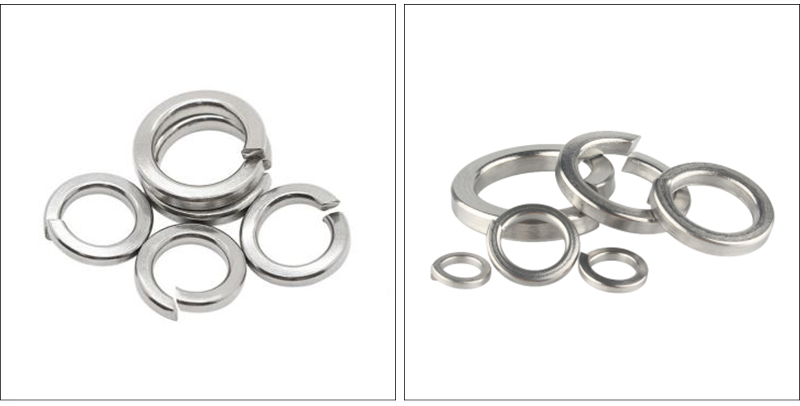

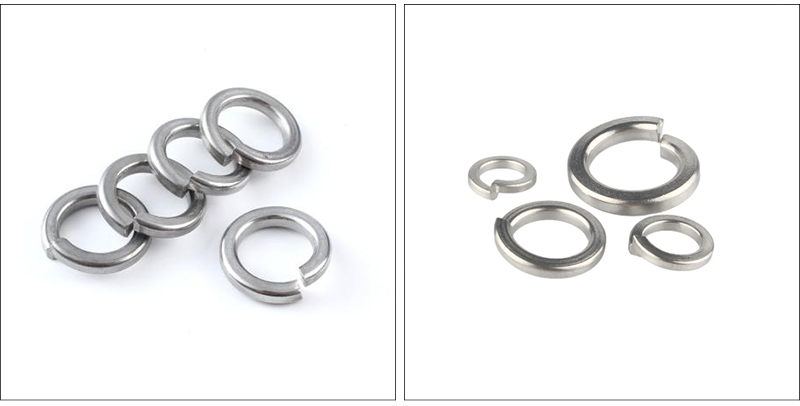

Split Lock Spring Washer

Xiaoguo® of excellence in product quality, and has passed ISO9001 . Split Lock Spring Washer generates continuous tension through elastic deformation to maintain the preload of fasteners and ensure stable connection.

Main functions of the product

Anti-loosening: Split Lock Spring Washer can prevents fasteners from loosening through elastic tension.

Vibration damping: absorbs vibrations and reduces impacts on connecting parts.

Compensation: Compensates for gaps caused by temperature changes or material deformation.

Appearance characteristics

1. Single-turn spring washers

Shape: Helical, usually with an opening.

Section: Rectangular or circular in section.

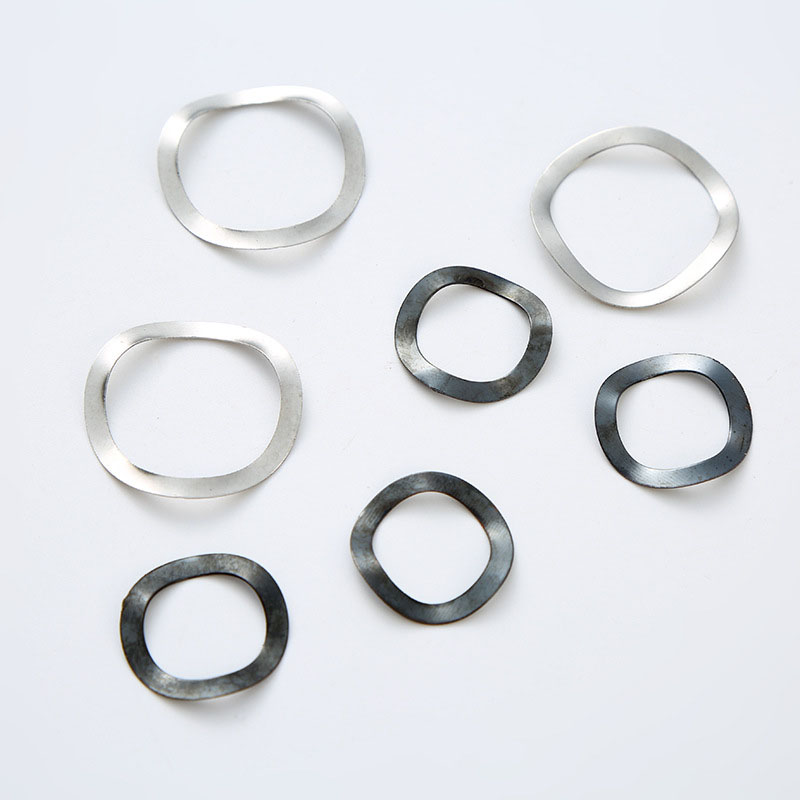

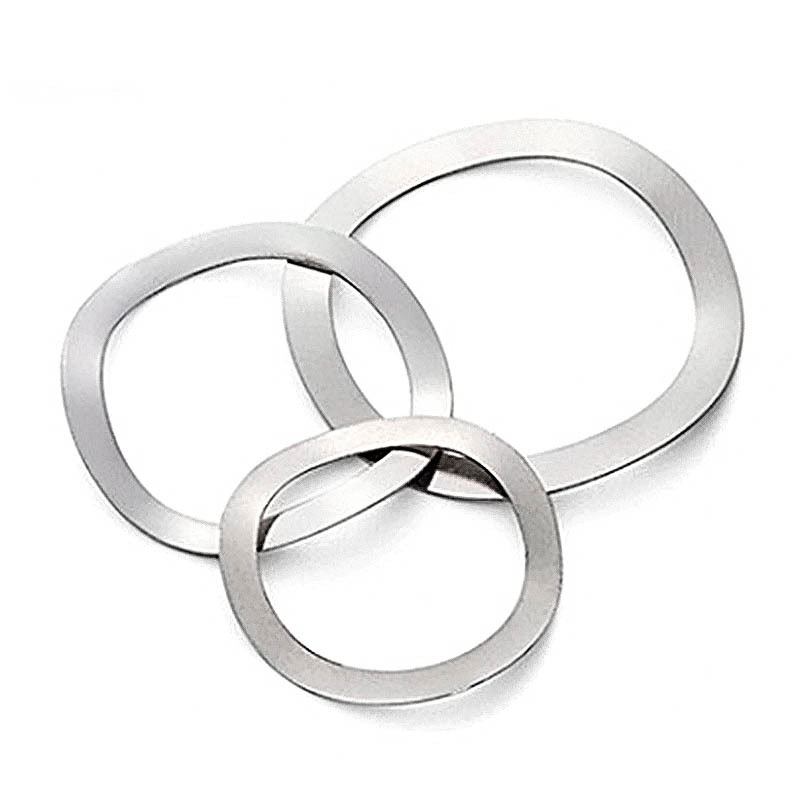

2. Wave spring washers

Shape: wavy, with multiple crests and valleys.

Section: The section is usually rectangular.

3. Toothed lock washers

Shape: Circular washers with a toothed inner or outer ring.

Section: Rectangular in cross-section, the toothed portion can be inner, outer or both inner and outer teeth.

4. Tapered spring washers

Shape: Tapered, usually multi-turn spiral.

Section: Rectangular in cross-section.

5. Disc spring washers

Shape: Disc-shaped, similar to a flat cone.

Section: Trapezoidal in cross-section.

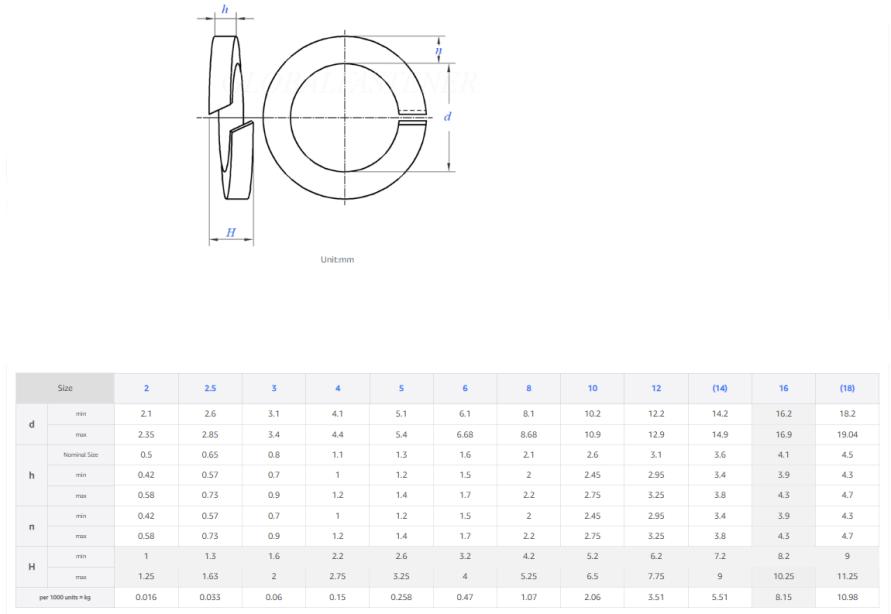

Product specification grade

For the specification grade of Split Lock Spring Washer, we follow common industrial standards. There are different specifications according to the size, which are mainly distinguished by the inner diameter, outer diameter and thickness. The inner diameter of the washer matches the diameter of common bolts, so it can be used with most standard bolts. The specifications are marked clearly, so customers can choose the right one according to their own needs. As for the grade, we mainly have two types: standard grade and ordinary grade. The standard grade is suitable for industrial production and mechanical assembly that have certain requirements on size and performance. The ordinary grade is suitable for daily maintenance and simple assembly scenarios. The grade division is based on actual use needs, not on the quality level. Each specification and grade of washer is produced according to fixed processes, so the size and performance of each batch are basically consistent. Customers can choose the appropriate specification and grade according to their specific use scenarios, without worrying about mismatching problems.

Product advantages and details

The basic function of the Split Lock Spring Washer is to give a strength to the screws and bolts after they are tightened. It acts as an anti-loosening agent. Add the friction strength between the screw bolt and the material. So that the material in the vibration of the material to tighten the material, to prevent the screw bolt and the material between the loosening.

It is widely used in the load-bearing and non-load-bearing structures of general mechanical products, and is characterized by low cost, easy installation, and is suitable for parts that are frequently loaded and unloaded.
