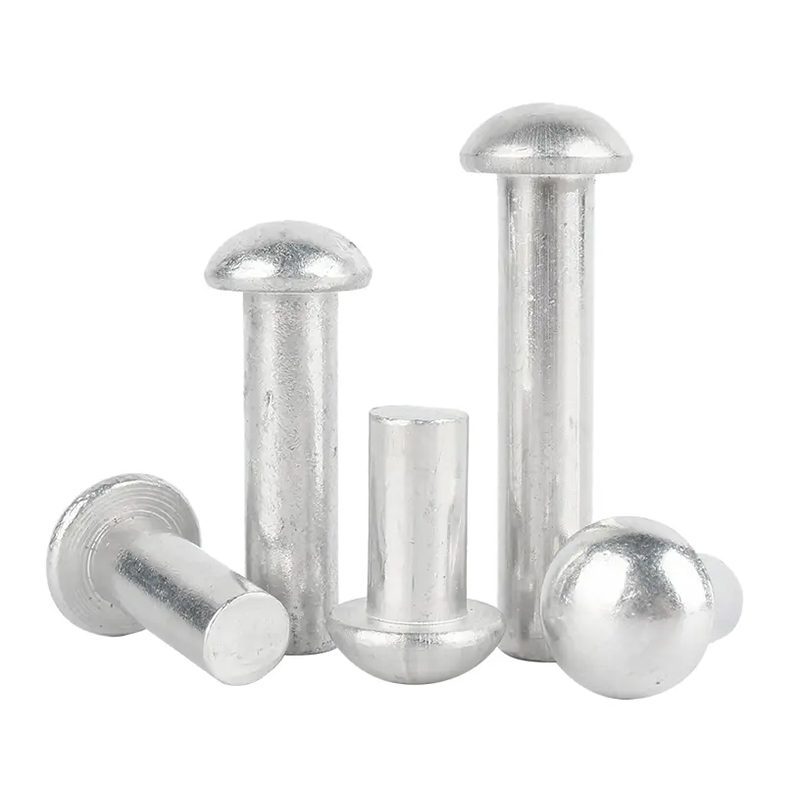

Solid Flat Round Head Rivet

A solid flat round head rivet is a mechanical fastener used to joint two or more work pieces. Rivet  is made of metal and has a cylindrical body with a shaped head at one side. When installation, Putting the round head rivet inserted into a drilled hole,then the other end is beating by hammering or crimping to form another head, which holds the work pieces together securely.

Features and uses

Permanent connection:Once installed, solid flat round head rivets are usually not easy to dismantle, forming a permanent connection, suitable for occasions requiring high strength and stability.

High strength:Rivet connections have high tensile and shear strength, suitable for structures subjected to large loads.

Applicable to a variety of materials:Rivets can be used to connect metal, plastic, composite materials and other materials.

Easy to install:Solid flat round head rivets are easy to install. Only need common tools like a rivet gun or hammer.

Application fields:Rivets are widely used like aerospace, automobile manufacturing, construction, bridges, ships, electronic equipment and other fields.

Installation

1. Preparation

Before riveting, we need to prepare the required tools:rivets, sockets, drilling tools, pliers, hammers, and so on. Guarantee the tools are good quality to ensure the riveted joint reliability .

2. Drilling

We should drilled holes in the work piece before riveting. The diameter of the drilled holes should suit the diameter of the solid flat round head rivets. To ensure that the rivets pass smoothly through the work piece. The depth of the drilled hole depend on the length of the rivet and the required strength of the joint.

3. Installing the rivet

Insert the rivet into the drilled hole, then confirming it is flush with the surface of the work piece. After, put the sleeve over the head of the rivet and gently tap the sleeve with a hammer to expand and fill the gap between the drilled hole and the work piece. The force of the tap should keep moderate to avoid damage the work piece.

4. Inspection and Trimming

After finishing the riveting, we should carefully inspected the connection scope . Insure that the solid flat round head rivet is tightly connected to the work piece and that there are no signs of looseness or deformation. If problems are found, pliers or other tools can be used to trim to ensure the quality and reliability of the connection

Details

Solid flat round head rivet can be used to connect plastic shells, lightweight plates, insulating materials, circuit boards, or any other thin, lightweight, light-weight materials that are aesthetically pleasing, practical, and easy to use.

The flat round head design of the bolt is that the rivet is firmly fixed on the installed surface after installation, and is not easy to be pulled out, and is suitable for fixing between soft materials such as foam, wood, rubber, automobile interiors and so on. Solid flat round head rivet have excellent insulation, fire resistance, non-magnetic, heat insulation, light weight, high temperature resistance, high strength, corrosion resistance, widely used in various industrial fields.The flat round head design of the bolt is that the rivet is firmly fixed on the installed surface after installation, and is not easy to be pulled out, and is suitable for fixing between soft materials such as foam, wood, rubber, automobile interiors and so on. Solid flat round head rivet have excellent insulation, fire resistance, non-magnetic, heat insulation, light weight, high temperature resistance, high strength, corrosion resistance, widely used in various industrial fields.
