Smooth Running Steel Wire Rope

Smooth Running Steel Wire Rope is a complex mechanical assembly made by twisting multiple strands of metal wire around a central core. As a professional supplier, the technical team at Xiaoguo® offers expert guidance on selecting the right wire rope construction and grade for this specific type of rope.

Model:GB/T 20118-2006 EN 12385

Send Inquiry

Product Description

The packaging of the Smooth Running Steel Wire Rope is very sturdy - and it is actually an important part of the product.

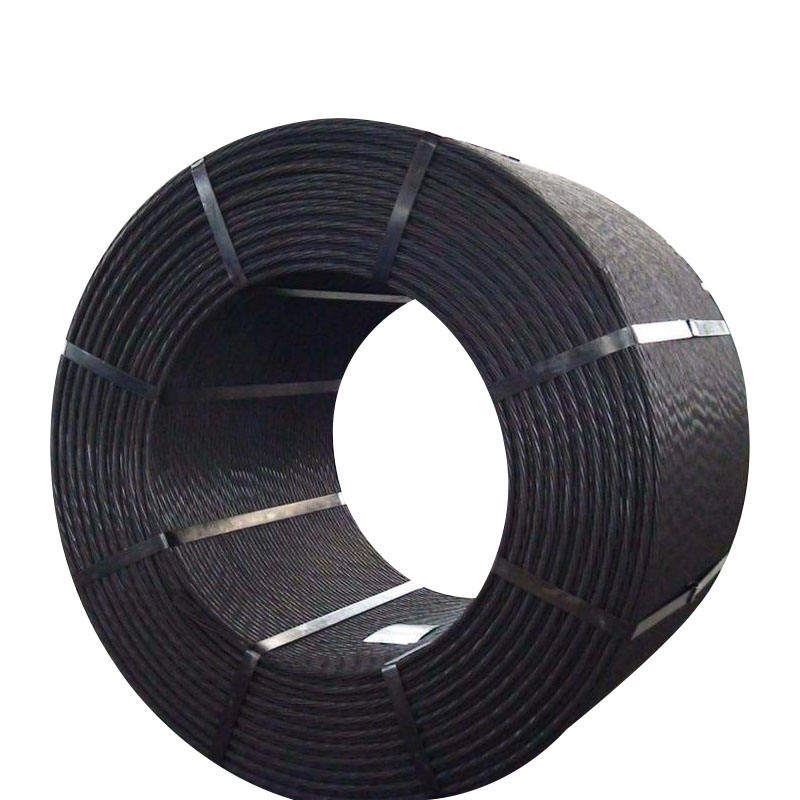

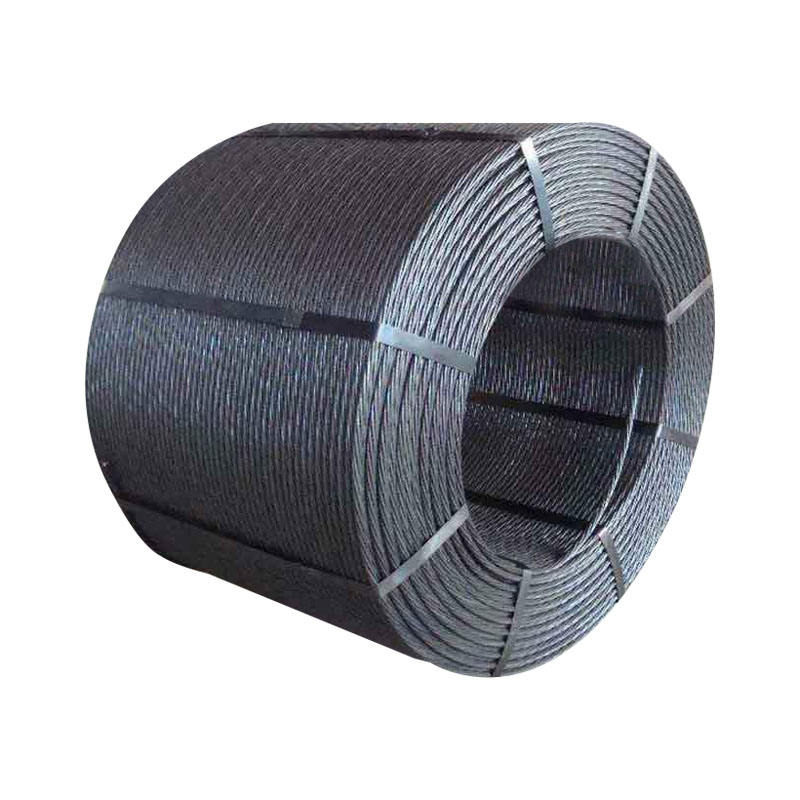

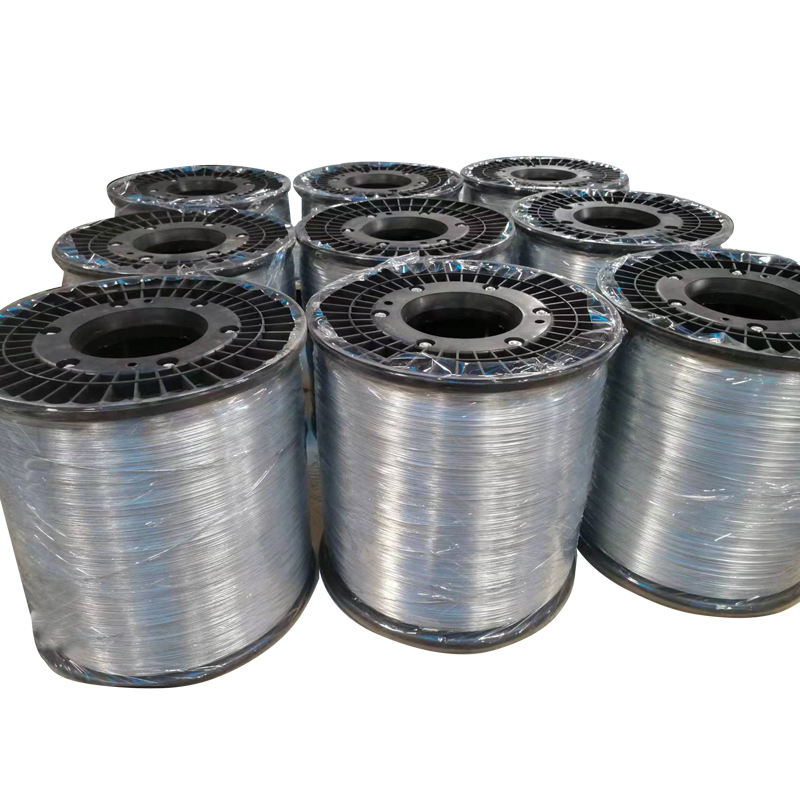

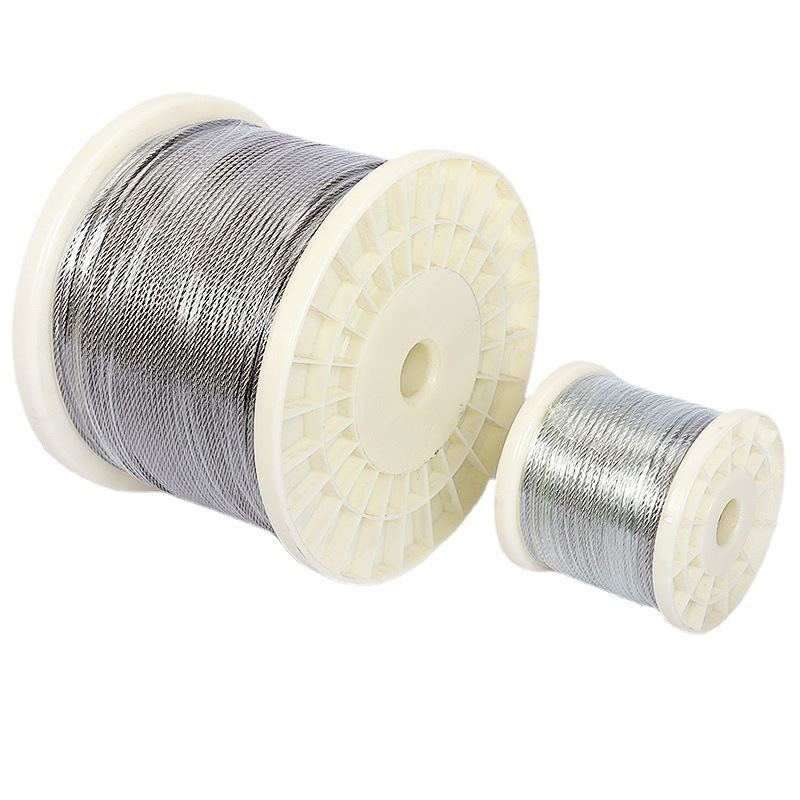

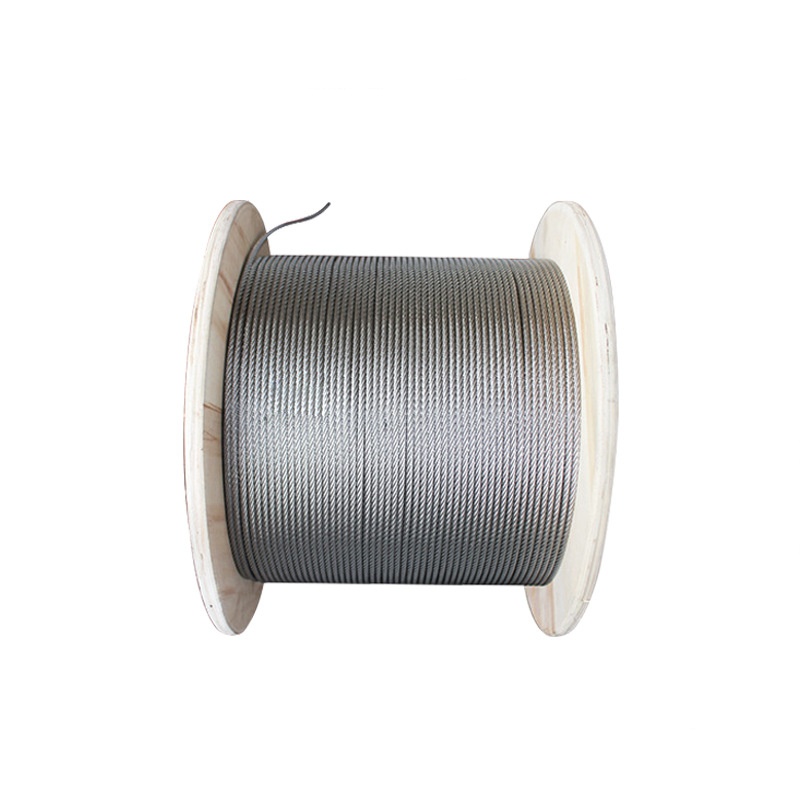

We tightly wind the rope around a sturdy wooden or steel reel. The design of these reels is capable of withstanding the huge tension and weight of the rope. Then we securely bind the reels together, and usually wrap them with protective plastic or paper. This ensures that the Smooth-Running Steel Wire Rope remains intact and undamaged during transportation, unaffected by factors such as weather.

As a result, when you receive the rope, it will be in perfect condition - completely without any distortion.

Product Parameters

Smooth-Running Steel Wire Rope

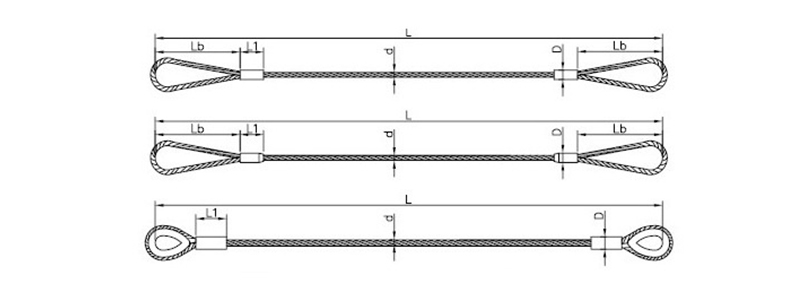

Connection number	Diameter of the steel wire rope	Total cross-sectional area of the steel wire		Length of the free ring gear		Compression joint diameter
Connection number	Diameter of the steel wire rope	min	max	min	max	Compression joint diameter
6	6.2	14.2	15.1	100	150	13
8	7.7	21.9	23.3	100	150	16
10	9.3	31.9	34.0	120	200	20
11	11.0	44.8	47.2	120	200	22
13	12.0	57.2	61.4	150	250	25
14	13.0	72.4	77.0	150	250	28
16	15.0	88.7	94.4	200	300	30
18	17.5	113.1	120.3	200	350	36
20	19.5	147.7	157.1	250	400	40
22	21.5	170.6	181.2	250	400	44
24	24.0	212.6	226.2	350	500	48
26	26.0	249.5	265.5	400	600	52
28	28.0	289.4	307.9	500	600	56
30	30.0	341.6	370.0	500	700	60
32	32.5	389.9	414.8	600	800	65
34	34.5	446.1	470.0	600	900	68
36	36.5	491.8	523.2	600	900	72
40	39.0	590.6	628.3	700	1000	80
44	43.0	682.5	726.1	700	1000	88
48	47.5	832.9	886.0	800	1200	96
52	52.0	998.2	1061.9	800	1200	104
56	56.0	1157.6	1231.5	1000	1500	112
60	60.5	1351	1437.4	1000	1500	120

Secure packaging method

If the Smooth Running Steel Wire Rope is properly packaged, it will suffer almost no damage during transportation.

The main possible problems are bending or rusting. However, the method we use for winding and securely bundling the rope can prevent it from bending, and the protective cover can also prevent water from entering. Besides, the Smooth-Running Steel Wire Rope itself is very durable.

So you can rest assured that your order will be delivered intact and ready for use at any time - all thanks to our specially tested packaging method.

FAQ

Q:What are the primary industries that use your Smooth Running Steel Wire Rope?

A:Our Smooth Running Steel Wire Rope is used in lots of industries because it’s strong and reliable.

Main sectors include construction and lifting—like for cranes and hoists. It’s also used in maritime and shipping, for things like mooring and towing. Other areas are mining and quarrying, oil and gas exploration, and bridge cable stays.

Smooth-Running Steel Wire Rope is versatile and safe, which is why it’s such a basic, must-have part for heavy-duty work and jobs where safety is critical, no matter where in the world.
