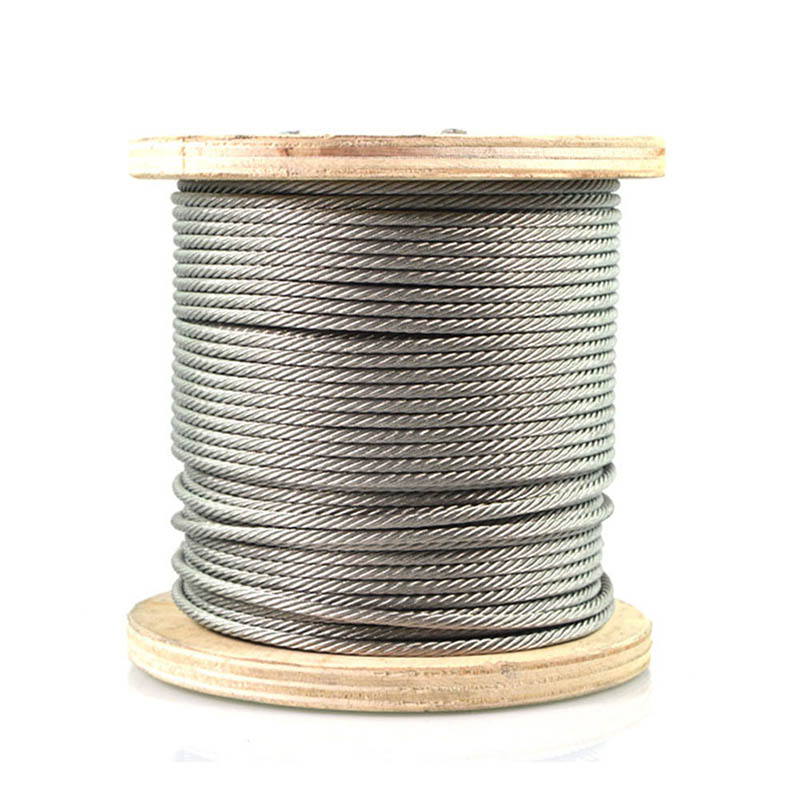

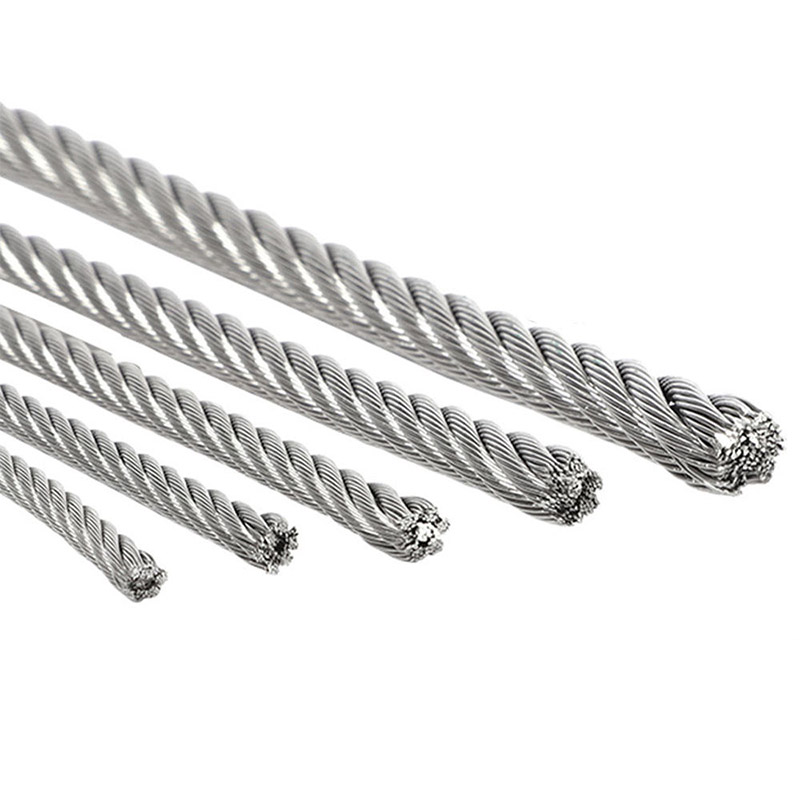

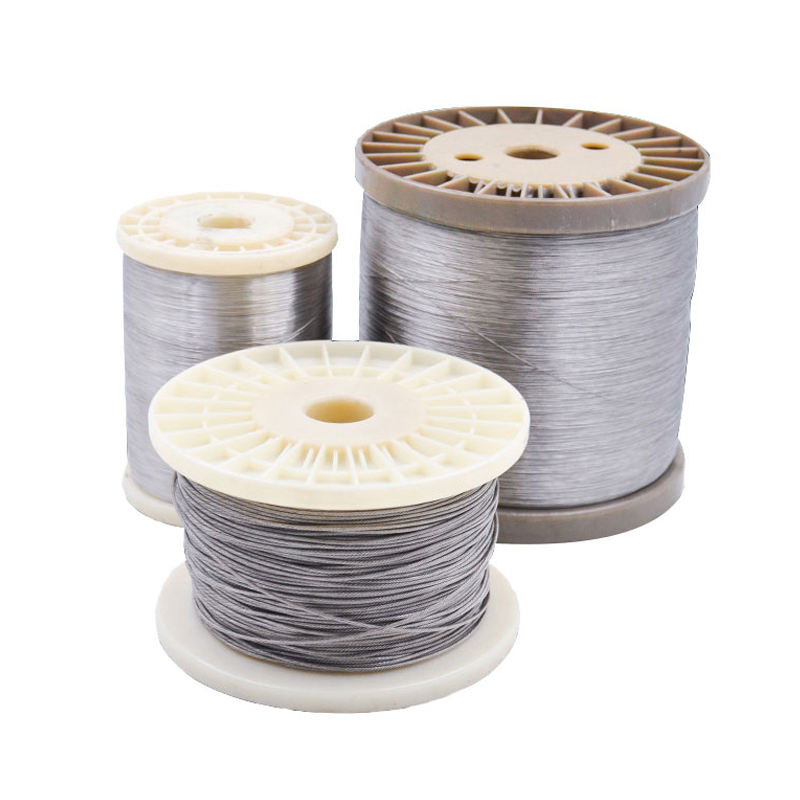

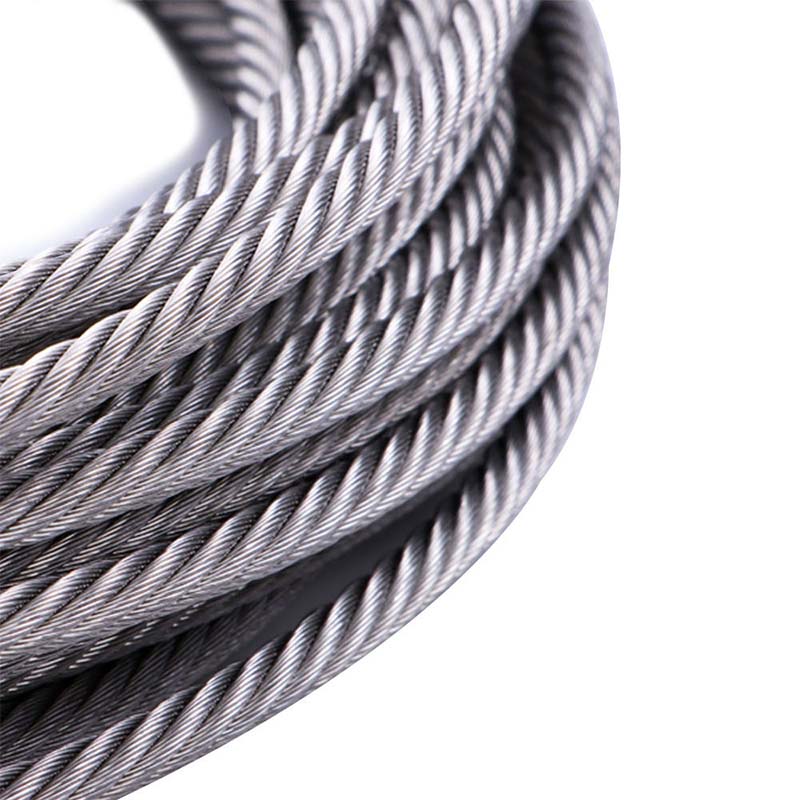

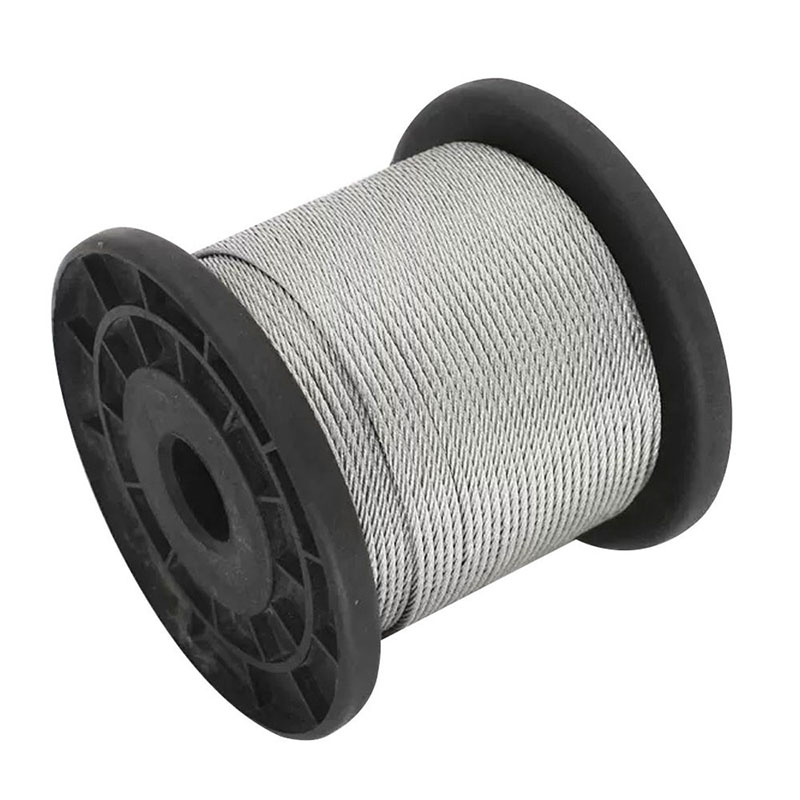

Flexible Steel Wire Rope

Flexible Steel Wire Rope: when it comes to reliable performance in tough conditions, industry pros pick Xiaoguo® as their supplier. Regular checks and lubrication help keep it strong and last longer.

Model:GB/T 20118-2006 EN 12385

Send Inquiry

Product Description

Yes, we conduct mandatory pre-delivery inspections for every batch of Flexible Steel Wire Rope - there are no exceptions.

This final inspection covers three main aspects: checking for any defects on the surface, re-verifying the dimensions to ensure they are accurate, and reviewing all production test records. For critical orders, we even take samples from the finished rolls and test them specifically for the force required to break.

This strict process ensures that the wire ropes we deliver fully meet your requirements and comply with international standards. Thus, you can be completely assured that it will work properly.

Comply with international standards

We produce Flexible Steel Wire Rope, and our manufacturing process has been certified by well-known international quality management systems - such as ISO 9001.

In addition, our products will undergo testing and obtain certifications to meet specific international standards. What are these standards? For example, ISO 2408, DIN or API - depending on the application of the Flexible Steel Wire Ropes.

If you need, we can provide you with these quality certificates for the Flexible Steel Wire Ropes. These certificates are strong evidence of the excellent quality, safety and reliability of the Flexible Steel Wire Ropes, and their suitability for use in various strict and complex industries all over the world.

Product Parameters

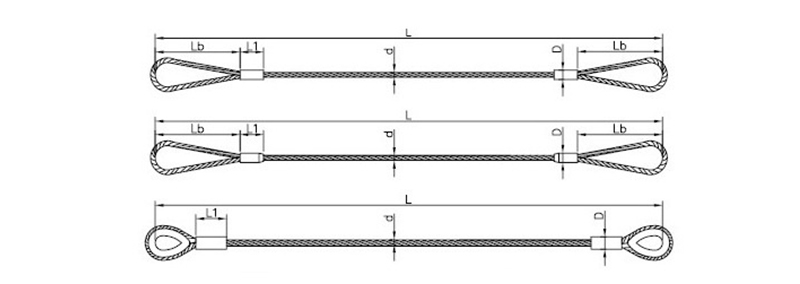

Flexible Steel Wire Rope

Connection number	Diameter of the steel wire rope	Total cross-sectional area of the steel wire		Length of the free ring gear		Compression joint diameter
Connection number	Diameter of the steel wire rope	min	max	min	max	Compression joint diameter
6	6.2	14.2	15.1	100	150	13
8	7.7	21.9	23.3	100	150	16
10	9.3	31.9	34.0	120	200	20
11	11.0	44.8	47.2	120	200	22
13	12.0	57.2	61.4	150	250	25
14	13.0	72.4	77.0	150	250	28
16	15.0	88.7	94.4	200	300	30
18	17.5	113.1	120.3	200	350	36
20	19.5	147.7	157.1	250	400	40
22	21.5	170.6	181.2	250	400	44
24	24.0	212.6	226.2	350	500	48
26	26.0	249.5	265.5	400	600	52
28	28.0	289.4	307.9	500	600	56
30	30.0	341.6	370.0	500	700	60
32	32.5	389.9	414.8	600	800	65
34	34.5	446.1	470	600	900	68
36	36.5	491.8	523.2	600	900	72
40	39.0	590.6	628.3	700	1000	80
44	43.0	682.5	726.1	700	1000	88
48	47.5	832.9	886.0	800	1200	96
52	52.0	998.2	1061.9	800	1200	104
56	56.0	1157.6	1231.5	1000	1500	112
60	60.5	1351	1437.4	1000	1500	120

FAQ

Q: Can you produce custom-designed Flexible Steel Wire Rope?

A:Yeah, we’re good at making custom Flexible Steel Wire Rope—specifically for those unique challenges your application might have.

We can tweak different things to get it right. Key wire parameters: wire gauge, strand structure, core category, lay direction, coating type. All to craft a unique Steel Wire Rope tailored to your needs. Just tell us what technical specs you need, and our engineering team will create a product that works best and stays safe for your specific project.
