Small Square Head Bolts
  • Small Square Head BoltsSmall Square Head Bolts
  • Small Square Head BoltsSmall Square Head Bolts
  • Small Square Head BoltsSmall Square Head Bolts

Small Square Head Bolts

The small square head bolts we produce are made of carbon steel, alloy steel and stainless steel, which can meet your daily usage requirements. Xiaoguo® can offer customized services to meet your needs. For detailed information, you can contact us and we will provide you with the best quotation.
Model:GB/T 35-1988

Send Inquiry

Product Description

Small square head bolts are compact in size. The heads of the bolts are square and you can easily tighten them with a wrench. They are not prone to slipping during installation, and the screw part is relatively thin, making it convenient for you to use in narrow Spaces.

Applications

Small square head bolts can be used to fix watch straps. Watches are small in size, so you can use them to precisely fix the strap. They won't affect the overall appearance and can be stably connected. You don't have to worry about the strap falling off when wearing them daily.

The square head bolts can also be used to fix the wobbling chair legs in the kitchen. Bolts can be used in conjunction with ordinary wrenches. They are small in size, so they can be hidden under furniture. When guests lean back, there is no need to worry about spilling anything anymore.

Some camping enthusiasts will use these square head bolts to fix loose tent poles. Because of their small size, campers will carry some spare ones in their backpacks. After you install them, you no longer need to worry about the tent poles collapsing.

Product selling point

The greatest advantage of small square head bolts is that they are small, flexible and practical. It is small in size and can be used in places with limited space. The square head makes it easier for you to tighten and remove them without much effort. Their prices are reasonable and they are very cost-effective for fixing small parts.

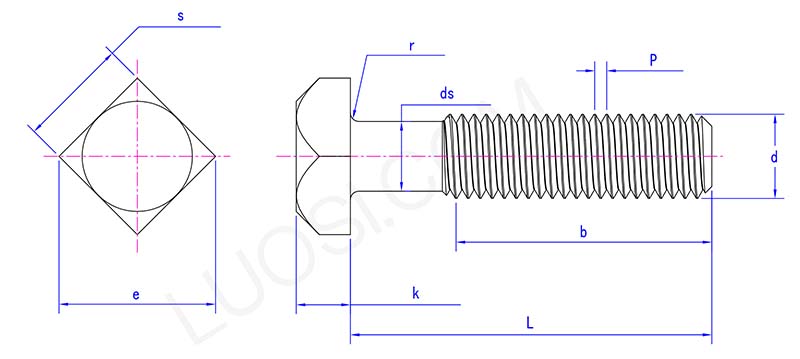

Small square head bolts

Mon
M5 M6 M8 M10 M12 M14 M16 M18 M20
P
0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
ds min
4.48 5.35 7.19 9.03 10.86 12.7 14.7 16.38 18.38
ds max
5 6 8 10 12 14 16 18 20
e min
9.93 12.53 16.34 20.24 22.84 26.21 30.11 34.01 37.91
k min
3.26 3.76 4.76 5.76 6.71 7.71 8.71 9.71 10.65
k max
3.74 4.24 5.24 6.24 7.29 8.29 9.29 10.29 11.35
r min
0.2 0.25 0.4
0.4 0.6 0.6 0.6 0.8 0.8
s max
8 10 13 16 18 21 24 27 30
s min
7.64 9.64 12.57 15.57 17.57 20.16 23.16 26.13 29.16

Hot Tags: Small Square Head Bolts, China, Manufacturer, Supplier, Factory
