If your purchase quantity of Secure Steel Wire Ropes reaches a certain volume, we will offer you a special discount. The exact discount rate can be discussed and confirmed based on your actual purchase volume. We hope to help you reduce your procurement costs through a flexible collaboration arrangement.
Generally speaking, if your single order length exceeds 5,000 meters or the weight exceeds several tons, you can enjoy our tiered discounts - the more you purchase, the more you save. For large projects that require a large amount of steel cables, simply contact our sales team. We can provide you with customized quotations for steel cables specifically.
We hope to offer you favorable prices and good terms for long-term cooperation. This way, you can obtain the maximum value from your investment.

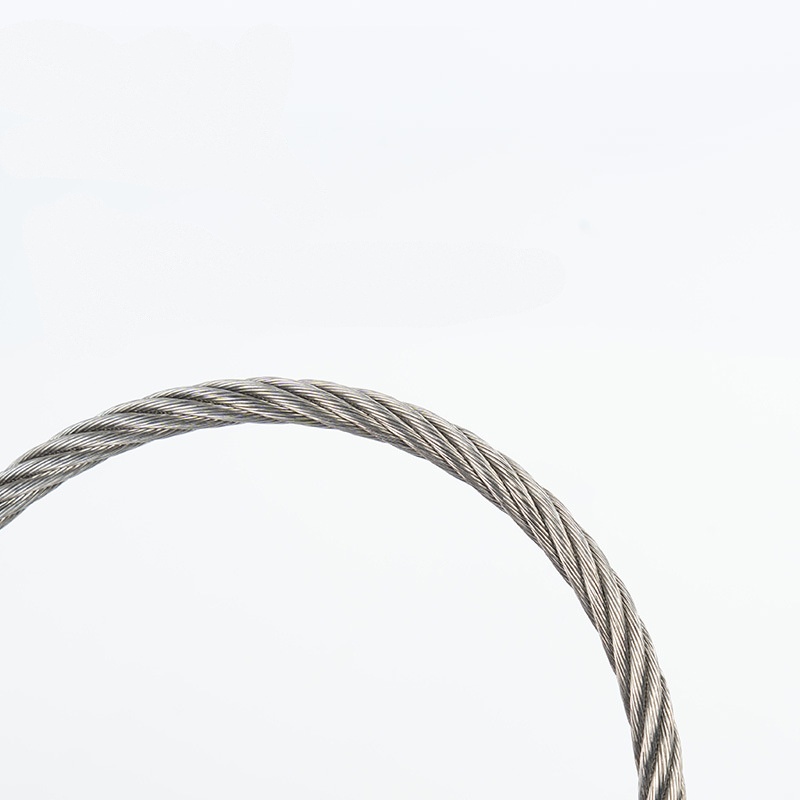

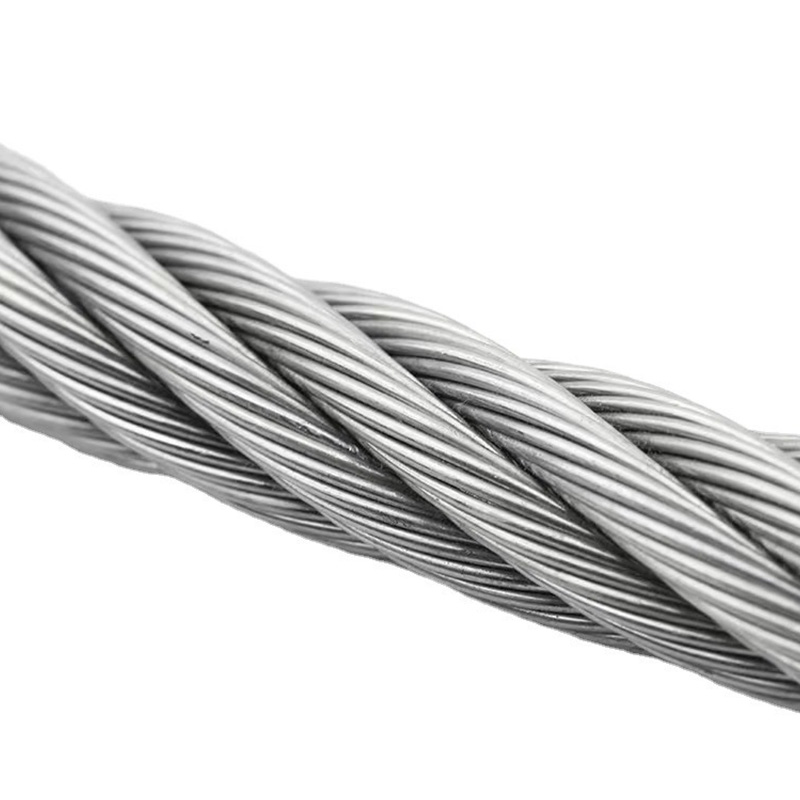

Secure Steel Wire Rope are usually a metallic grey color - this is the natural color of high-carbon steel.
To prevent rusting, we usually apply galvanization to it. This gives it a shiny silver-zinc appearance. Sometimes we also apply a layer of black polymer or plastic coating on its surface.

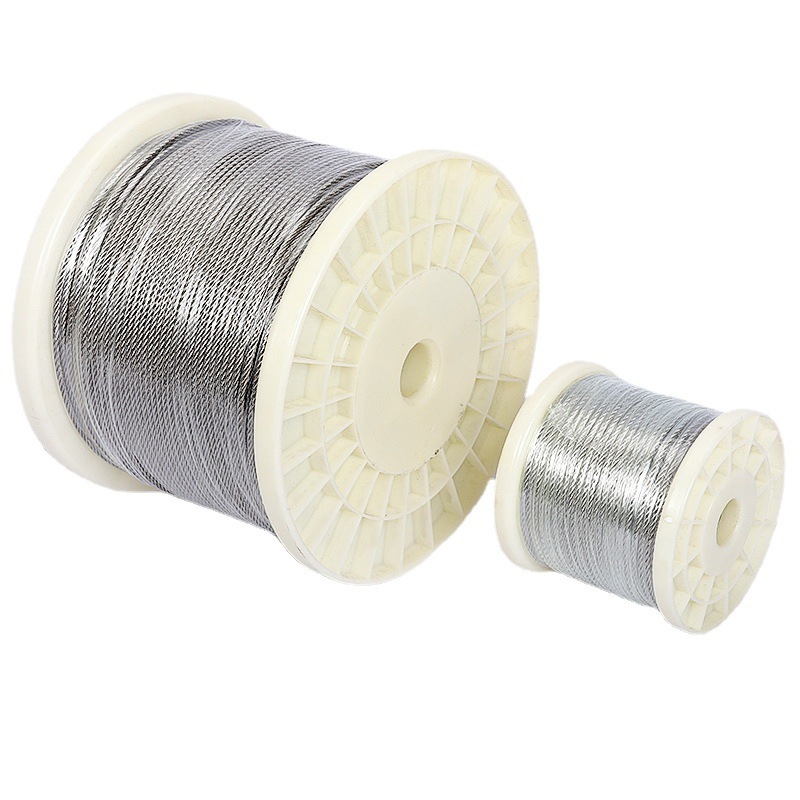

Safety wire rope is supplied wound onto large, sturdy wooden or steel drums (also known as spools) to ensure stability during storage and transport. This prevents it from bending and keeps its structure intact during storage or transportation. When you receive it, you can unfold it and use it immediately.

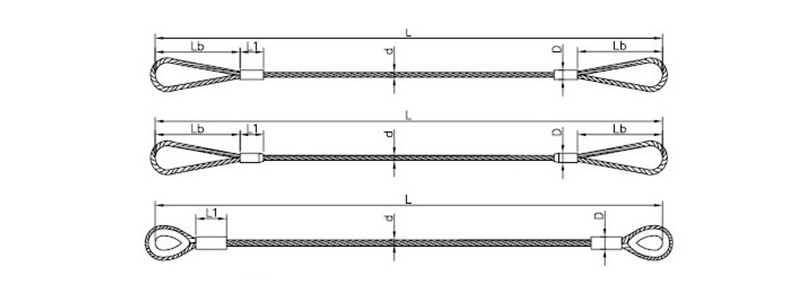

Connection number |
Diameter of the steel wire rope |
Total cross-sectional area of the steel wire |
Length of the free ring gear |
Compression joint diameter |
||
min | max | min | max | |||
6 | 6.2 | 14.2 | 15.1 | 100 | 150 | 13 |
8 | 7.7 | 21.9 | 23.3 | 100 | 150 | 16 |
10 | 9.3 | 31.9 | 34.0 | 120 | 200 | 20 |
11 | 11.0 | 44.8 | 47.2 | 120 | 200 | 22 |
13 | 12.0 | 57.2 | 61.4 | 150 | 250 | 25 |
14 | 13.0 | 72.4 | 77.0 | 150 | 250 | 28 |
16 | 15.0 | 88.7 | 94.4 | 200 | 300 | 30 |
18 | 17.5 | 113.1 | 120.3 | 200 | 350 | 36 |
20 | 19.5 | 147.7 | 157.1 | 250 | 400 | 40 |
22 | 21.5 | 170.6 | 181.2 | 250 | 400 | 44 |
24 | 24.0 | 212.6 | 226.2 | 350 | 500 | 48 |
26 | 26.0 | 249.5 | 265.5 | 400 | 600 | 52 |
28 | 28.0 | 289.4 | 307.9 | 500 | 600 | 56 |
30 | 30.0 | 341.6 | 370.0 | 500 | 700 | 60 |
32 | 32.5 | 389.9 | 414.8 | 600 | 800 | 65 |
34 | 34.5 | 446.1 | 470.0 | 600 | 900 | 68 |
36 | 36.5 | 491.8 | 523.2 | 600 | 900 | 72 |
40 | 39.0 | 590.6 | 628.3 | 700 | 1000 | 80 |
44 | 43.0 | 682.5 | 726.1 | 700 | 1000 | 88 |
48 | 47.5 | 832.9 | 886.0 | 800 | 1200 | 96 |
52 | 52.0 | 998.2 | 1061.9 | 800 | 1200 | 104 |
56 | 56.0 | 1157.6 | 1231.5 | 1000 | 1500 | 112 |
60 | 60.5 | 1351 | 1437.4 | 1000 | 1500 | 120 |
Q: What is the minimum breaking strength of your Secure Steel Wire Rope?
A:We precisely calculated and tested the minimum breaking strength of our Secure Steel Wire Rope - this depends on their diameter, type and grade.
For example: A 10-millimeter-thick, 6×36 IWRC grade 1770 steel cable has a minimum breaking strength of approximately 6.7 tons. We provide detailed technical data sheets for each product, including the certified strength values. This way, you can ensure that your design and work are always within the safe load range.
