Pliably Strong Steel Wire Rope

Pliably Strong Steel Wire Rope, with Xiaoguo® as the dedicated manufacturer, ensures every batch undergoes rigorous load testing and fatigue analysis; a critical component of this wire rope is its core, which can be fiber or steel, providing internal support and lubrication for the outer strands.

Model:YB/T098-2012

Send Inquiry

Product Description

We ensure that all Pliably Strong Steel Wire Rope orders can be delivered globally promptly and reliably.

If you urgently need the goods, we will cooperate with major logistics companies to use air transportation. For those large and heavy rolls, we have established efficient shipping routes by sea. Due to the large volume and size of Wire Ropes, our logistics team will find the fastest and most economical way to transport them. We will also provide you with tracking information so that you can ensure that the goods will arrive at your project site or warehouse on time.

Product Parameters

Pliably Strong Steel Wire Rope

pecification of stainless steel wire rope

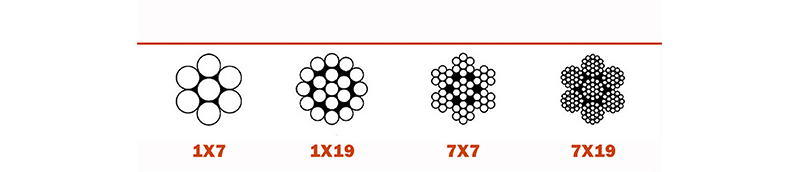

Product structure	Specification(mm)	Tension(kn)	Load-bearing(kg)	Reference weight(kg/100m)
1x7	2	4.11	440	2.2
	2.5	6.76	690	3.4
	3	9.81	1000	4.9
	3.5	13.33	1360	6.8
	4	17.46	1780	8.8

Product structure	Specification(mm)	Tension(kn)	Load-bearing(kg)	Reference weight(kg/100m)
1x19	4	17.46	1780	9.1
	5	25.49	2600	14.2
	6	35.29	3600	20.5
	7	49.02	5000	27.9
	8	61.76	6300	36.5
	10	98.04	10000	57
	12	143.15	14500	82.1

Product structure	Specification(mm)	Tension(kn)	Load-bearing(kg)	Reference weight(kg/100m)
7x7	1	0.56	57	0.38
	1.2	1.13	115	0.5
	1.5	1.26	128	0.86
	1.8	1.82	186	1.3
	2	2.24	228	1.54
	2.5	3.49	356	2.4
	3	5.03	513	3.46
	4	8.94	912	6.14

Product structure	Specification(mm)	Tension(kn)	Load-bearing(kg)	Reference weight(kg/100m)
7x19	5	13	1330	9.3
	6	18.8	1920	13.4
	7	25.5	2600	18.2
	8	33.4	3410	23.8
	10	52.1	5310	37.2
	12	85.1	7660	53.6

Competitive shipping rates

We reduce the transportation cost of the Pliably Strong Steel Wire Rope by meticulously planning the logistics.

This product is large in size and heavy in weight. However, we have taken two measures to lower the cost: we combine multiple batches of goods for transportation, and because of our large transportation volume, we can obtain more favorable prices from the transportation company. We will provide you with clear and competitive transportation quotations for your Pliably-Strong Steel Wire Rope order. We will choose the most efficient transportation method to balance cost and transportation speed, so that you can obtain the maximum value in terms of transportation expenses.

FAQ

Q:What surface treatments or coatings do you offer?

A:Besides the regular finishes, we have different coatings to make our Pliably Strong Steel Wire Rope work better and last longer.

The most common one is galvanization—it’s a zinc coating that keeps the rope from rusting well. We also do specialized polymer coatings, like PVC or nylon. These add more protection against wear and bad environmental conditions.

Picking the right coating matters a lot if you want the Pliably-Strong Steel Wire Rope to stay durable long-term, especially when it’s used in tough places.

Hot Tags: Pliably Strong Steel Wire Rope, China, Manufacturer, Supplier, Factory
