Oblique head bolt

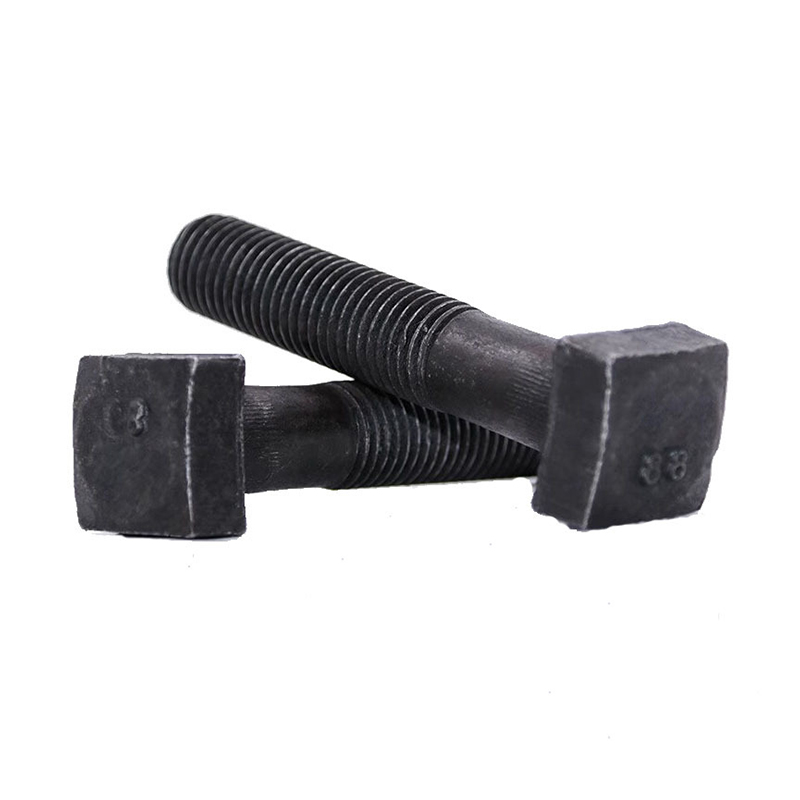

The oblique head bolt is a special bolt with a square head and a unique and characteristic shape.

Classification

Size classification:Oblique head bolts can be divided into different specifications according to size, such as M3, M4, M5, etc., corresponding to different thread diameters and lengths.

Material classification: According to the different use environment, oblique head bolts can be divided into carbon steel and stainless steel two kinds. Carbon steel material has high strength, but not corrosion resistance; Stainless steel has better corrosion resistance.

Accuracy grade classification: The accuracy grade of the oblique head bolts can be divided into ordinary grade and advanced. Ordinary grade thread tolerance range is large, suitable for general occasions; Advanced thread tolerances are smaller and more accurate, suitable for precision applications.

Application scenarios and installation methods

Mechanical manufacturing: Oblique head bolts are widely used in the field of mechanical manufacturing, such as mechanical equipment, machine tools, transmission devices, etc.

Construction industry: In the field of construction, oblique head bolts are often used to fix various components, such as beams, plates, columns, etc.

Automobile manufacturing: In the automobile manufacturing process,oblique head bolts are used to fix auto parts, such as engines, gearboxes, etc.

Before use, it should be ensured that the thread part is clean and free of impurities to ensure smooth installation.Align the oblique head bolts with the target thread hole and ensure that the bolt is aligned with the hole.Using a suitable wrench or screwdriver, gently tighten the bolts until it does not move.Check whether bolts are tightened. If the tightening torque does not reach the required torque, tighten the bolts.Complete the installation of oblique head bolts and ensure that all connecting parts are secure and stable.

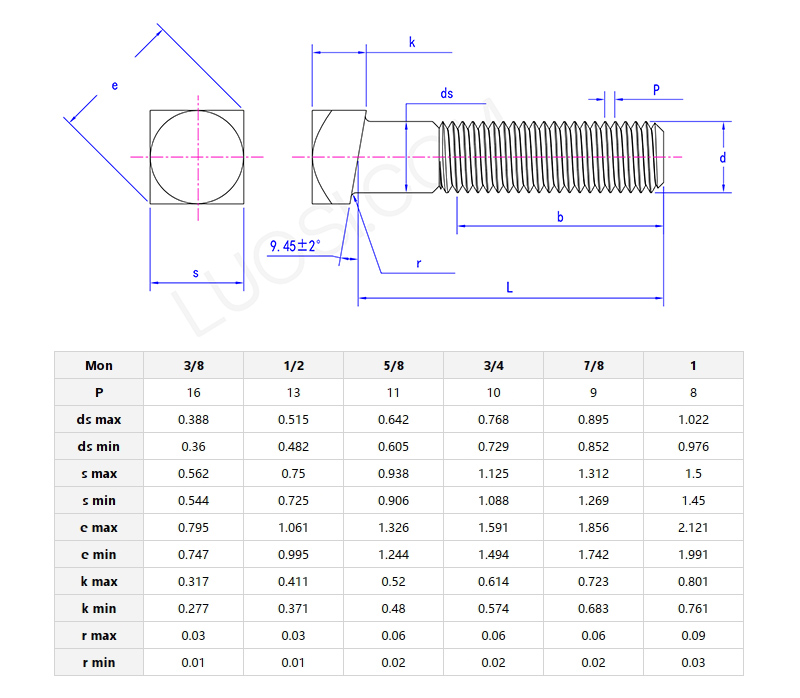

Product specifications and standards

The specifications of the oblique head bolts are diverse, from M8 to M64, and the length varies from tens of millimeters to several meters. Common specifications on the market include 4.8 and 8.8, customers can choose the right specifications and grades according to specific needs In addition, these bolts can also be customized according to the requirements of various shaped parts to meet the special application scenarios
