Load Bearing Spring Washers

Model:GB/T 7244-1987

Send Inquiry

Product Description

Load Bearing Spring Washers with excellent after sales service Xiaoguo® always stands by its customers addressing any issues promptly Also it has reliable suppliers who can ensure the stable supply of various products Unlike flat washers Load-bearing Spring washers act as a spring to apply continuous force between connected partsLoad Bearing Spring Washers are provided by manufacturers. Xiaoguo, as one of the manufacturers, provides customized fastener solutions, tailoring products according to specific customer requirements. These cost-effective Spring washers compensate for thermal expansion or wear by maintaining tension in fastened joints.

The washers are packed in steel crates with rubber liners to absorb shocks and prevent damage during transport. They're tested to handle constant train vibrations and checked for hardness. They also meet EN 13103 railway standards, and each batch comes with a report showing how much weight they can handle before shipping.

Product details

These Load Bearing Spring Washers are designed for DIY use and come in different sizes—from 8 to 20mm. You can choose between zinc-plated (silver) or black oxide (matte black) finishes, which work with most common home bolts.

The washers are packed in clear plastic jars with labels—easy to see and store—and shipped in padded envelopes so they don’t get bent or lost. They’re tested for strength and smooth edges.This batch of goods has no official certification, but customers say they have been in good use. We will also quickly check them before shipping to ensure that there are no damaged ones before sending them out.

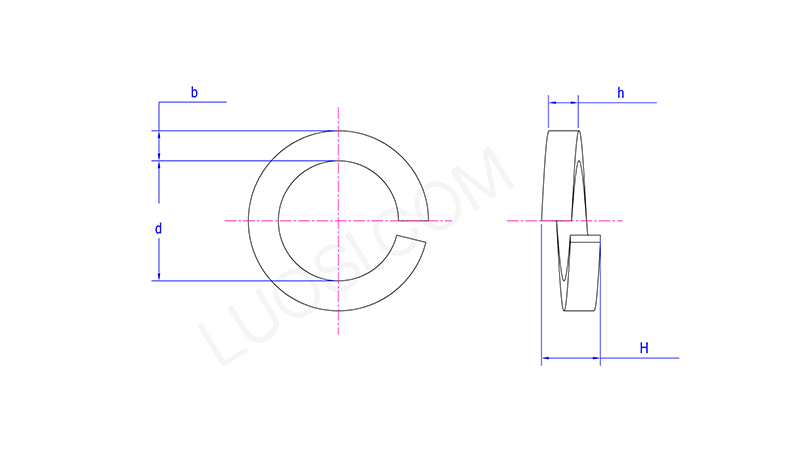

Mon	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ27	Φ30
d min	8.1	10.2	12.2	14.2	16.2	18.2	20.2	22.5	24.5	27.5	30.5
d max	8.68	10.9	12.9	14.9	16.9	19.04	20.04	23.34	25.5	28.5	31.5
h min	2.25	2.85	3.3	3.9	4.6	5.1	5.8	6.3	6.8	7.7	8.7
h max	2.55	3.15	3.7	4.3	5	5.5	6.2	6.9	7.4	8.3	9.3
b min	3	3.6	4.1	4.6	5.1	5.6	6.1	6.9	7.2	8.2	9
b max	3.4	4	4.5	5	5.5	6	6.7	7.5	7.8	8.8	9.6
H min	4.8	6	7	8.2	9.6	10.6	12	13.2	14.2	16	18
H max	6	7.5	8.75	10.25	12	13.25	15	16.5	17.75	20	22.5

FAQ

Q: Are your Load Bearing Spring Washers compliant with international standards like DIN or ANSI?

A: Rest assured, our production standards are globally recognized. Whether it's DIN or ANSI specifications, we can meet them. This ensures that our spring washers perfectly match various equipment worldwide, providing stable performance and peace of mind.
