      High Strength Metric Round Wing Nuts
      • High Strength Metric Round Wing NutsHigh Strength Metric Round Wing Nuts
      • High Strength Metric Round Wing NutsHigh Strength Metric Round Wing Nuts
      • High Strength Metric Round Wing NutsHigh Strength Metric Round Wing Nuts
      • High Strength Metric Round Wing NutsHigh Strength Metric Round Wing Nuts
      • High Strength Metric Round Wing NutsHigh Strength Metric Round Wing Nuts

      High Strength Metric Round Wing Nuts

      High strength Metric round wing nuts are used to fasten metric threaded components. They can be tightened manually. Xiaoguo® manufactures these nuts using high-quality, durable materials. We export them to numerous countries and are a well-established manufacturer with a robust export program.
      Model:BS 856-1-2004

      Send Inquiry

      Product Description

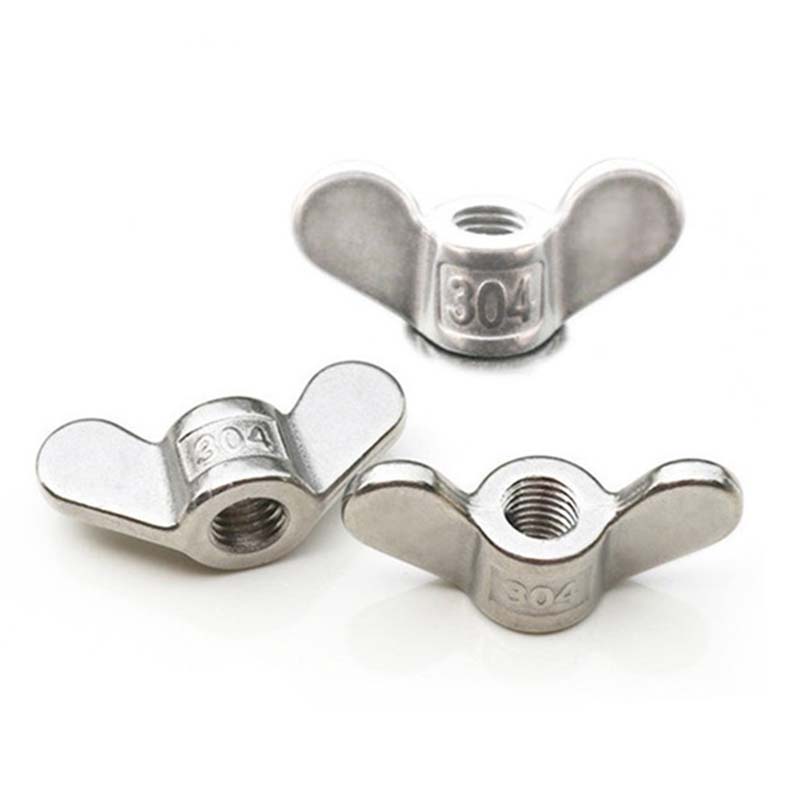

      The high strength metric round wing nuts are made for tough jobs. They’re strong, easy to use, and work with the metric system. They have round “wings” on either side of a threaded hole in the middle,that’s what makes them easy to spot. You can tighten or loosen them fast by hand, which is handy when you don’t have tools or need to move quickly.

      The biggest thing is they can handle more weight than regular wing nuts. That’s why they work for important setups. Metric round wing nuts work well because they’re both easy to use and strong enough for the structure.

      Advantage

      The high strength metric round wing nuts are good mainly because they work really well mechanically. They’re made from hardened steel alloys, so they have high tensile and yield strengths,usually meeting standards like 8.8 or higher. That means they stay clamped tight even when there’s a lot of shaking, moving weight, or pressure. They won’t loosen up on their own.

      Unlike weaker kinds, these metric round wing nuts let you use them without tools, and they still keep the joint secure. That’s really helpful for maintenance and putting things together.

      Material

      Q:What specific material grades guarantee the 'High strength' claim for metric round wing nuts?

      A:Our high strength metric round wing nuts usually use Grade 8 steel or similar high-tensile alloys (like A2/A4 stainless steel), so they have tensile strengths over 800 MPa. We provide material certifications, which show these nuts meet strict mechanical property standards. They work for tough applications where reliability is really important.

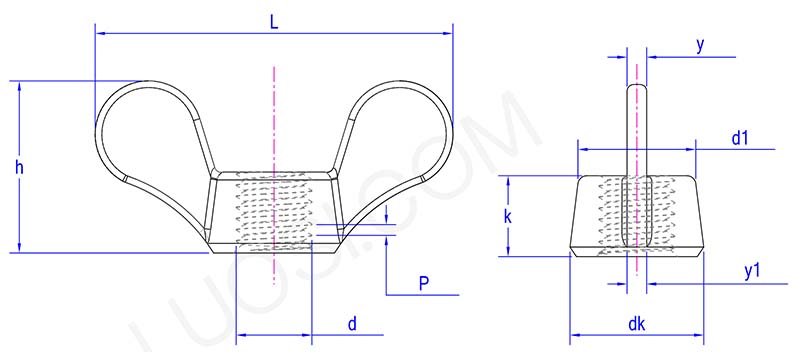

      Mon
      M3 M4 M5 M6 M8 M10 M12 M14 M16 M18
      P
      0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5
      dk
      9 10 10 13 16 17.5 19 22 25.5 32
      d1
      6.5 8 8 9.5 12 14 16 17.5 20.5 27
      k
      7 9 9 11 13 14 15 17 19 22
      h
      13.5 15 15 18 23 25.5 28.5 32 36.5 41
      L
      22 25.5 25.5 30 38 44.5 51 59 63.5 78
      y1
      2.5 2.5 2.5 2.5 3 5 5 5.5 6.5 7
      y
      1.5 1.5 1.5 1.5 2.5 3 3 4 5 5.5

      high strength metric round wing nuts parameter
