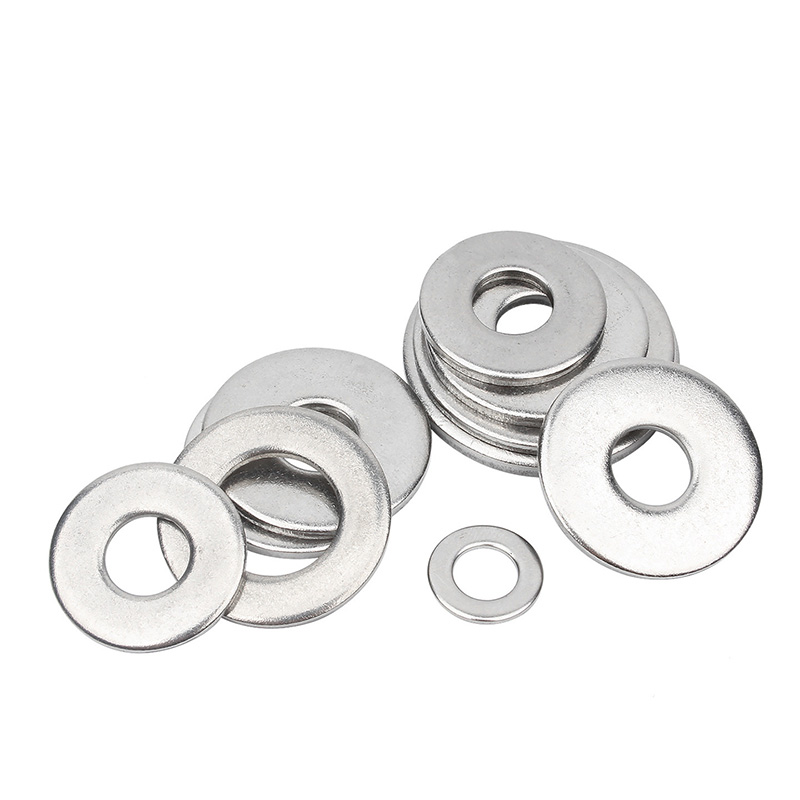

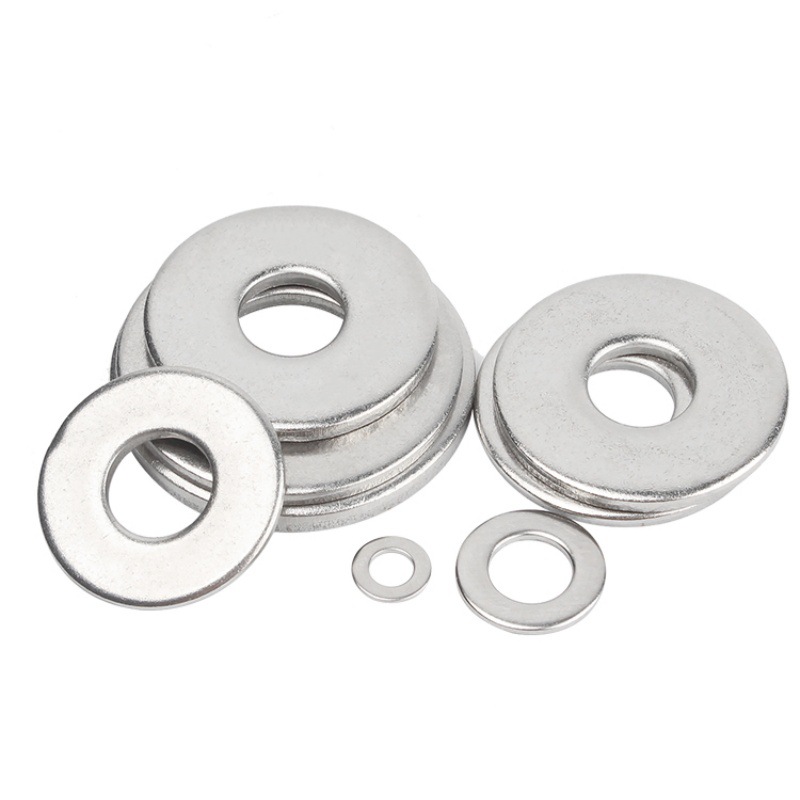

Flat Washer Stainless Steel

By purchasing the Xiaoguo® Flat Washer Stainless Steel, you will be able to compensate for the hole diameter tolerance, eliminate the problems of larger drilling and installation position deviation, and it can be matched with non-standard hole diameters, having a relatively strong adaptability.

Send Inquiry

Product Description

Flat Washer Stainless Steel is made by precisely stamping stainless steel sheets. Therefore, the stainless steel material brings more additional performance advantages.

（1）Excellent corrosion resistance

Resistant to moisture, acids, alkalis and salt fog, far superior to carbon steel galvanized washers

（2）High strength and hardness

The Vickers hardness can reach above 200HV to 300HV, and it can withstand relatively high preload force.

（3）Resistant to high/low temperatures

The working temperature range of the Flat Washer Stainless Steel is very wide (from -200°C to +600°C)

（4）No surface coating peeling problem

Unlike galvanized coating which can wear or flake off, it is suitable for clean environments

（5）Long lifespan, low maintenance cost

In corrosive environments, its service life is several times or even dozens of times that of carbon steel

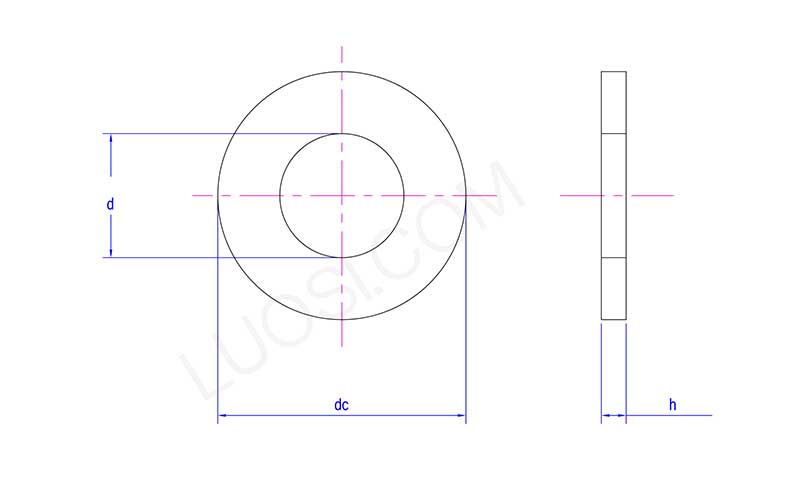

Flat Washer Stainless Steel

Mon	φ 16	φ 18	φ20	φ22	φ24	φ27	φ30	φ33	φ36	φ39	φ42
d max	17.27	19.33	21.33	23.33	25.33	28.33	31.39	34.62	37.62	42.62	45.62
d min	17	19	21	23	25	28	31	34	37	42	45
dc max	30	34	37	39	44	50	56	60	66	72	78
dec min	29.48	33.38	36.38	38.38	43.38	49.38	55.26	58.8	64.8	70.8	76.8
h max	3.3	3.3	3.3	3.3	4.3	4.3	4.3	5.6	5.6	6.6	9
h min	2.7	2.7	2.7	2.7	3.7	3.7	3.7	4.4	4.4	5.4	7

Flat Washer Stainless Steel

（6）Aesthetically pleasing and hygienic

Smooth surface, easy to clean, in line with food and medical hygiene requirements

Introduction to Stainless Steel Material

The materials of Flat Washer Stainless Steel mainly include different grades such as 304, 316, and 410 stainless steel. The main differences among them lie in their corrosion resistance, strength, and magnetism, and they are suitable for different working environments.

（1）304 stainless steel

Features: Excellent comprehensive performance, with good corrosion resistance, processing formability and weldability, and being economically practical. It has no magnetism in the solid solution state, but may develop weak magnetism after cold processing.

Limitations: It is prone to pitting corrosion or crevice corrosion in marine environments or in high-concentration chloride ion (such as salt water) environments.

（2）316 stainless steel

Features: Due to the presence of molybdenum, its corrosion resistance, especially in terms of resistance to chloride point corrosion and acid-base resistance, is significantly superior to that of 304, and its high-temperature strength is also higher.

Limitations: It also has weak magnetism.

（3）410 Stainless Steel

Features: Exhibits excellent strength and wear resistance, can achieve high hardness through heat treatment, and has a low cost.

Limitations: Has magnetism, but limited corrosion resistance, not suitable for humid or saltwater environments.

There are many classifications of Flat Washer Stainless Steel based on their material. The specific material selection should be based on the specific working environment and the required performance requirements.
