Cost Effective Split Pin

2.We offer Cost Effective Split Pin from xiaoguo with stable performance. We provide purchasing agents with complete material certifications and a wide range of specifications and sizes. Global buyers are welcome to inquire.

Send Inquiry

Product Description

Quality Inspection Certificate

When you get a Cost Effective split pin, it might come with a quality certificate. This is basically a paperwork that says the split pin has been checked and meets certain standards.

The certificate lists details about the split pin - who made it, what it's made of, its size, and which batch it came from. It shows that the split pin was tested for things like strength, size accuracy, and whether it bends properly without breaking. They also check that the surface treatment, like zinc plating, is done correctly.

The certificate is signed and stamped by the inspectors who did the tests. This paperwork is useful for businesses that need to prove their split pin meets specific requirements, especially in industries like automotive or manufacturing where quality tracking is important. It's basically your assurance that the split pin has been properly checked before you receive it.

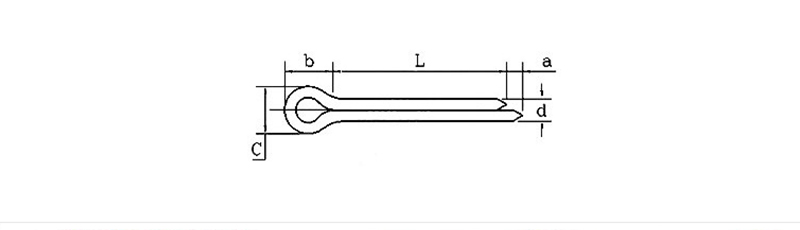

Cost Effective Split Pin

d		0.6	0.8	1	1.2	1.5	2	2.5	3.2	4	5	6.3	8	10	13	16	20
d	max	0.5	0.7	0.9	1	1.4	1.8	2.3	2.9	3.7	4.6	5.9	7.5	9.5	12.4	15.4	19.3
d	min	0.4	0.6	0.8	0.9	1.3	1.7	2.1	2.7	3.5	4.4	5.7	7.3	9.3	12.1	15.1	19
a	max	1.6	1.6	1.6	2.5	2.5	2.5	2.5	3.2	4	4	4	4	6.3	6.3	6.3	6.3
a	min	0.8	0.8	0.8	1.25	1.25	1.25	1.25	1.6	2	2	2	2	3.15	3.15	3.15	3.15
b≈		2	2.4	3	3	3.2	4	5	6.4	8	10	12.6	16	20	26	32	40
C	max	1	1.4	1.8	2	2.8	3.6	4.6	5.8	7.4	9.2	11.8	15	19	24.8	30.8	38.5
C	min	0.9	1.2	1.6	1.7	2.4	3.2	4	5.1	6.5	8	10.3	13.1	16.6	21.7	27	33.8

Product Uses

A Cost Effective split pin is mainly used to keep parts from coming loose in machines, cars, and equipment. Its job is to stop bolts, shafts, or other pins from sliding out due to vibration. For example, in a car, you'll often find a split pin in the wheel hubs or suspension to help keep things safe.

In factory machines, a split pin might be used in hinges or moving joints to keep everything aligned. On boats, it can hold hardware like cleats in place. For everyday use, you might use a split pin to secure a lawnmower blade or a bicycle pedal. You just push the split pin through a hole and bend the two prongs apart – it's a simple way to make a connection that holds securely but can still be removed when needed.

Q&A Session

Question: Can you provide a certificate for your Cost Effective split pin?

Answer: Yeah, we can give you a material certification for the pin. It shows we meet standards like ISO 1234. This makes sure the split pins you get check out with the mechanical and dimensional specs we agreed on.
