        Carbon Steel Metric Round Wing Nuts
        • Carbon Steel Metric Round Wing NutsCarbon Steel Metric Round Wing Nuts
        • Carbon Steel Metric Round Wing NutsCarbon Steel Metric Round Wing Nuts
        • Carbon Steel Metric Round Wing NutsCarbon Steel Metric Round Wing Nuts
        • Carbon Steel Metric Round Wing NutsCarbon Steel Metric Round Wing Nuts

        Carbon Steel Metric Round Wing Nuts

        Manufactured from hardened steel or other durable alloys, carbon steel metric round wing nuts offer superior resistance to deformation and stripping under significant loads.Xiaoguo® has a variety of equipment available for production and insists on continuous innovation.
        Model:BS 856-1-2012

        Send Inquiry

        Product Description

        Carbon steel metric round wing nuts work good mostly because of the materials they’re made with. They’re usually forged or cut from medium carbon steel (like Grade 5 or 8.8), alloy steel, or stainless steel (such as A2/AISI 304 or A4/AISI 316).These materials undergo heat treatments such as quenching and tempering.

        This process improves the metal’s structure, which really makes them harder, better at handling pull, and better at standing up to repeated stress. That’s why high strength metric round wing nuts can take forces that regular wing nuts can’t.

        Application

        Carbon steel metric round wing nuts come in handy when you need to take things apart a lot but still need them to hold tight. People usually use them to hold access panels, guards, and hatches in place on heavy machinery, industrial equipment, and vehicles like trucks, trains, and boats.

        They’re good for construction too,things like formwork, scaffolding joints, and temporary structural bracing. You’ll also see them in farm equipment and sturdy furniture when putting it together. Their metric threads match European and international standards, so they fit perfectly.

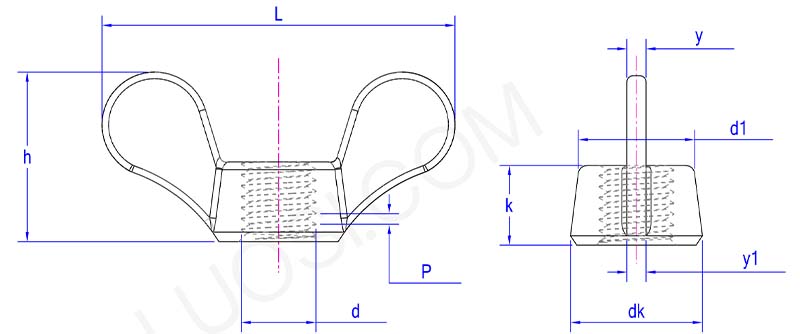

        Carbon steel metric round wing nuts parameter

        Mon
        M3 M4 M5 M6 M8 M10 M12 M14 M16 M18
        P
        0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5
        dk
        9 10 10 13 16 17.5 19 22 25.5
        32
        d1
        6.5 8 8 9.5 12 14 16 17.5 20.5 27
        k
        7 9 9 11 13 14 15 17 19 22
        h
        13.5 15 15 18 23 25.5 28.5 32 36.5 41
        L
        22 25.5 25.5 30 38 44.5 51 59 63.5 78
        y1
        2.5 2.5 2.5 2.5 3 5 5 5.5 6.5 7
        y
        1.5 1.5 1.5 1.5 2.5 3 3 4 5 5.5

        Corrosion resistance

        Some of our carbon steel metric round wing nuts have rust-resistant coatings like zinc plating or yellow chromate. Others are made from A4 (316) stainless steel. This helps them last longer in tough marine, chemical, or outdoor environments,they don’t rust, and they stay strong.

        Carbon steel metric round wing nuts
