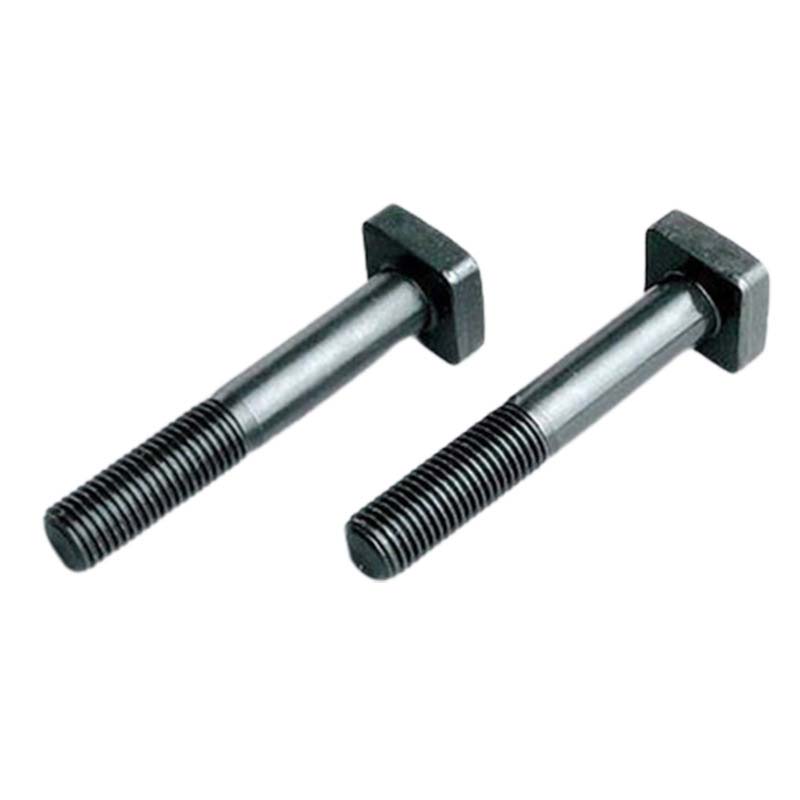

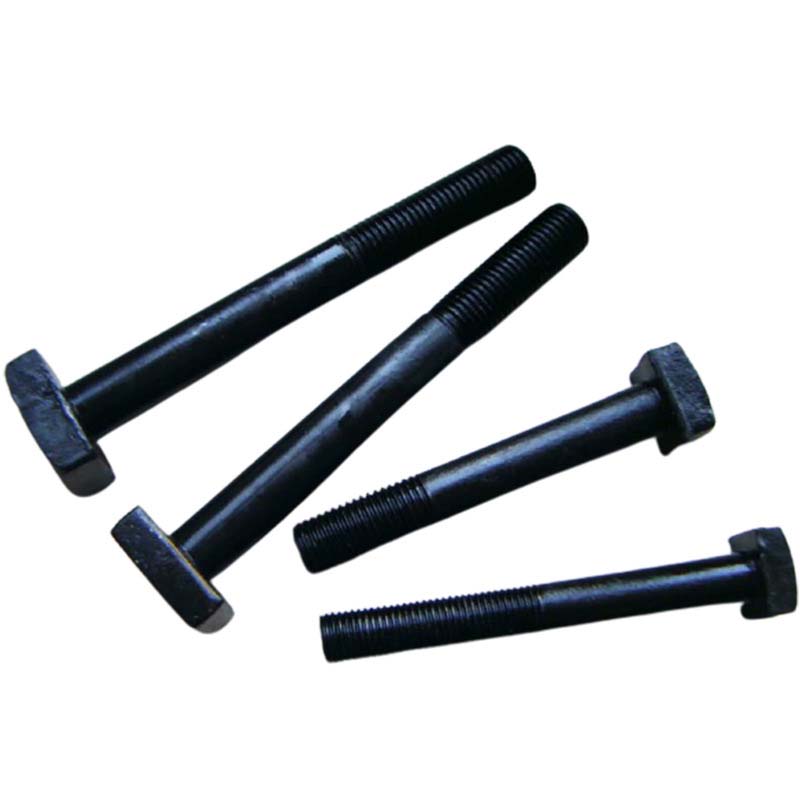

Askew Head Bolt

The askew head bolt has a square head and the screw is a cylinder with external threads. The head and screw have a certain tilt angle.Xiaoguo® can customize the products according to the actual needs of our customers. We will quote the best price based on your specific quantity.

Model:ASME/ANSI B18.2.1-4-2010

Send Inquiry

Product Description

The askew head bolt is a square head bolt.Every step in the production of bolts is strictly monitored to ensure the quality of the products. Our bolts comply with the standards of ASME/ANSI B18.2.1-4-2010. Our inventory is sufficient. Welcome to purchase at any time.

Features

These bolts are different from the common flat-headed and hexagonal head bolts. Their heads are in the shape of being cut diagonally. This special design is not for aesthetic purposes, but to enable the bolts to exert force better and be tightened more conveniently at some special installation positions, solving the problem of difficult installation of ordinary bolts.

DIY enthusiasts like to use askew head bolts to repair narrow furniture. The bevel bolts can be installed behind the shelf or under the cabinet, allowing you to tighten the screws without twisting your wrist. They can also be used to repair wobbly table or cabinet hinges.

The installation of the bolts is very convenient. Because the head is slanted, it can be screwed in from the side or slanted direction during installation, without having to be vertically aligned with the hole position like ordinary bolts. In some areas where the front is blocked by other parts, using bevel bolts can save installation time and thereby improve work efficiency.

The most obvious feature of the askew head bolts is that its head is tilted. This bevel is not made randomly. Depending on different usage scenarios, the Angle of the bevel also varies. With this bevel head, the bolt can be installed at inclined and corner locations, greatly expanding its application range.

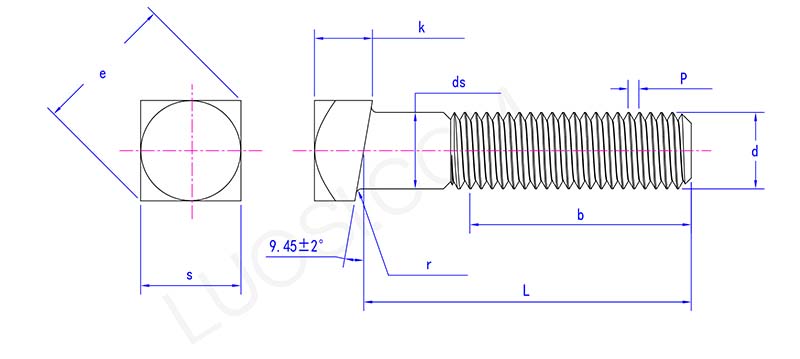

Parameters

askew head bolt

Mon	3/8	1/2	5/8	3/4	7/8	1
P	16\|24\|32	13\|20\|28	11\|18\|24	10\|16\|20	9\|14\|20	8\|12\|20
ds max	0.388	0.515	0.642	0.768	0.895	1.022
ds min	0.36	0.482	0.605	0.729	0.852	0.976
s max	0.562	0.75	0.938	1.125	1.312	1.5
s min	0.544	0.725	0.906	1.088	1.269	1.45
e max	0.795	1.061	1.326	1.591	1.856	2.121
e min	0.747	0.995	1.244	1.494	1.742	1.991
k max	0.317	0.411	0.52	0.614	0.723	0.801
k min	0.277	0.371	0.48	0.574	0.683	0.761
r max	0.03	0.03	0.06	0.06	0.06	0.09
r min	0.01	0.01	0.02	0.02	0.02	0.03
