Wooden Structure Hexagon Head Wood Screws

Supplier Xiaoguo® Wooden Structure Hexagon Head Wood Screws – turn the hex head, the coarse thread cuts into wood, no pre‑tapping needed. Need a special length? We can do it. Customers often ask: “Will it rust?” Go stainless for outdoors. Bulk orders get better pricing – ask.

Send Inquiry

Product Description

Wooden Structure Hexagon Head Wood Screws from factory Xiaoguo® can also be made according to the specifications you require.

1.Customized size

Diameter: M4 - M24. It can also be made in sizes such as M14, M18.

Length: Available in options ranging from 20 mm to 400 mm.

Thread length: For the default part of the thread, the length of the bare shaft and the thread length can all be adjusted according to your requirements.

Head size: The width and height of the hexagonal head can be adjusted slightly.

2.Material customization

Carbon steel: Commonly used grades include Q235, 10B21, and 45#. Different grades correspond to different strengths.

Stainless steel: 304, 316. 304 is used for general rust prevention, while 316 is resistant to seawater.

Others: Brass, aluminum alloy, titanium alloy.

3.Surface treatment customization

Common surface treatments: Galvanizing, Dacromet coating, Blackening, Mechanical galvanizing, etc. These can be selected according to the actual usage scenarios.

4.Mechanical performance customization

Strength grades: 4.8 grade, 8.8 grade, 10.9 grade. Different grades correspond to different tensile strengths and hardness.

Hardness: You can specify either the surface hardness or the core hardness.

Torque disruption: It can be controlled according to the set value.

5.Customization of thread type

Standard Wooden Structure Hexagon Head Wood Screws thread coarse type is commonly used. If self-cutting threads are needed for hardwood or composite materials, they can also be made.

Wooden Structure Hexagon Head Wood Screws

Work process

Wooden Structure Hexagon Head Wood Screws are thicker and have deeper threads, and are specifically used for securing heavy-duty connections. Below is a brief description of their working process.

1.Drill a "guiding hole"

Drill a hole in the wood that is slightly smaller than the screw.

2.The thread "creates" the groove by itself.

Insert the tip of the Wooden Structure Hexagon Head Wood Screws into the hole and start tightening with a socket wrench.The threads of the screw are thicker than the hole, so it will squeeze the wood fibers in the hole wall. The compressed wood fibers will precisely fill the grooves between the threads.

3.The wood "holds" the screw

After twisting all the way down, the compressed wood fibers will slightly spring back and tightly grip the threads of the screw.

4.The function of the hexagonal head

It doesn't need to be tightened with a screwdriver; a socket wrench is required. The hexagonal head is firmly fixed, so you can apply maximum force without worrying about slipping.

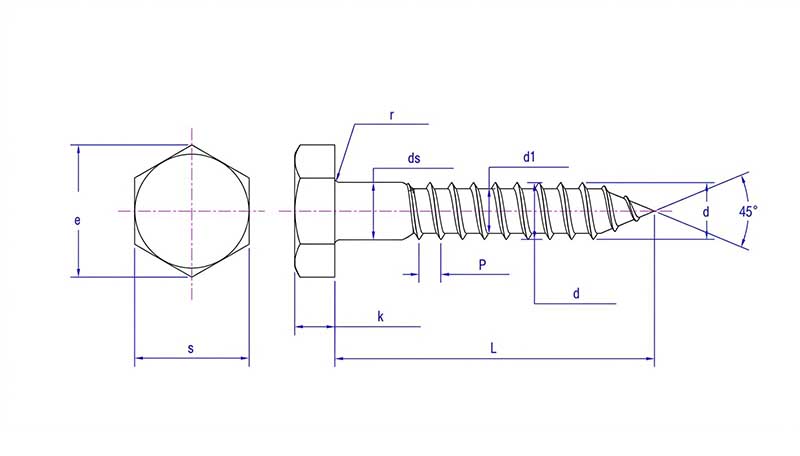

Wooden Structure Hexagon Head Wood Screws

Mon	#10	1/4	5/16	3/8	1/2	5/8	3/4	7/8	1	1-1/8	1-1/4
P	11	10	9	7	6	5	4.5	4	3.5	3.25	3.25
d max	0.199	0.26	0.324	0.388	0.515	0.642	0.768	0.895	1.022	1.149	1.277
d min	0.178	0.237	0.298	0.36	0.482	0.605	0.729	0.852	0.976	1.1	1.223
d1 max	0.122	0.177	0.228	0.268	0.374	0.473	0.582	0.686	0.784	0.892	1.017
d1 min	0.107	0.16	0.21	0.25	0.354	0.453	0.562	0.665	0.76	0.867	0.987
ds max	0.199	0.26	0.324	0.388	0.515	0.642	0.768	0.895	1.022	1.149	1.277
ds min	0.178	0.237	0.298	0.36	0.482	0.605	0.729	0.852	0.976	1.098	1.223
s max	0.281	0.438	0.5	0.562	0.75	0.938	1.125	1.312	1.5	1.688	1.875
s min	0.271	0.425	0.484	0.544	0.725	0.906	1.088	1.269	1.45	1.631	1.812
e max	0.323	0.505	0.577	0.65	0.866	1.083	1.299	1.516	1.732	1.949	2.165
e min	0.309	0.484	0.552	0.62	0.826	1.033	1.24	1.447	1.653	1.859	2.066
k max	0.14	0.188	0.235	0.268	0.364	0.444	0.524	0.604	0.7	0.78	0.876
k min	0.11	0.15	0.195	0.226	0.302	0.378	0.455	0.531	0.591	0.658	0.749
r max	0.03	0.03	0.03	0.03	0.03	0.06	0.06	0.06	0.09	0.09	0.09
r min	0.01	0.01	0.01	0.01	0.01	0.02	0.02	0.02	0.03	0.03	0.03

FAQ

1.What are the common materials?

Two categories: carbon steel and stainless steel. Carbon steel is low in cost and has high strength, but it requires surface treatment to prevent rust. Stainless steel has its own rust-prevention ability.

2.Can you provide customized Wooden Structure Hexagon Head Wood Screws products with non-standard lengths?

YES. Based on the standard length, we also accept customization of non-standard lengths.

3.Is it necessary to use a gasket during installation?

It is recommended to use. The washer can distribute the pressure on the head and prevent the screw from sinking into the wood.

4.Could you provide free samples?

YES. Standard inventory specifications are available for free, with 20 to 50 sample pieces provided for testing purposes.

5.Can OEM customized packaging and labels be accepted?

YES. The outer box can be printed with your logo and other labels.
