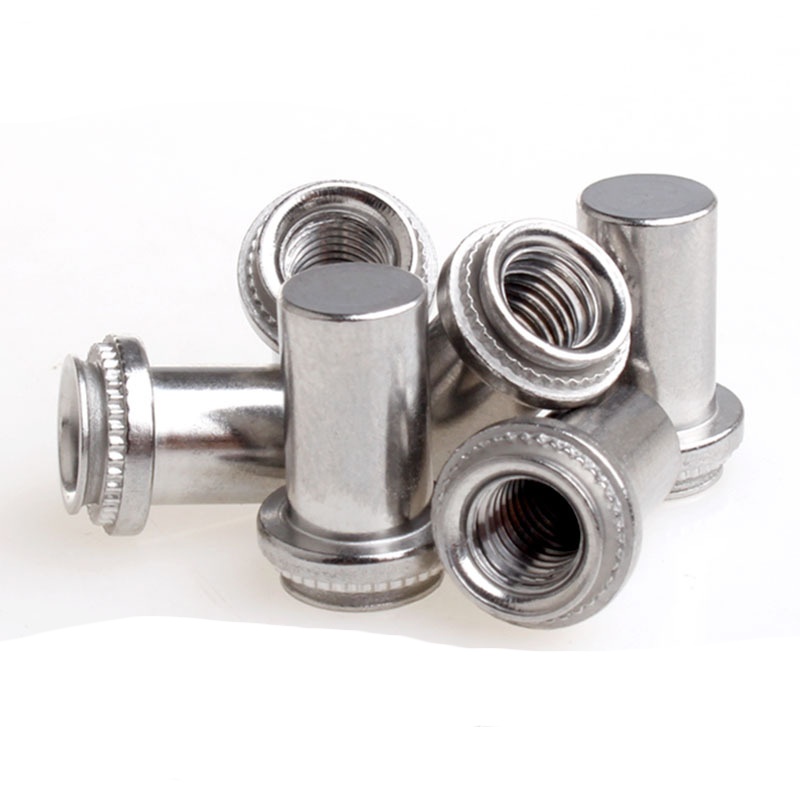

UN Stainless Steel Sealing Clinching Nut

The UN stainless steel sealing clinching nut is a specialized fastener designed for creating leak-proof seals in sheet metal assemblies through a clinching installation process.The fasteners produced by Xiaoguo® meet quality standards and are affordable.

Model:QIB/IND BS

Send Inquiry

Product Description

The UN stainless steel sealing clinching nut is a specialized fastener that gets permanently installed in sheet metal. It has a built-in sealing part,usually a rubber washer or a molded seal,under the clinching base. You press this nut ("clinch" it) into a pre-punched hole in the sheet. When you do that, the metal around the hole deforms to make a strong, load-bearing thread, and at the same time, it compresses the seal.

Features:

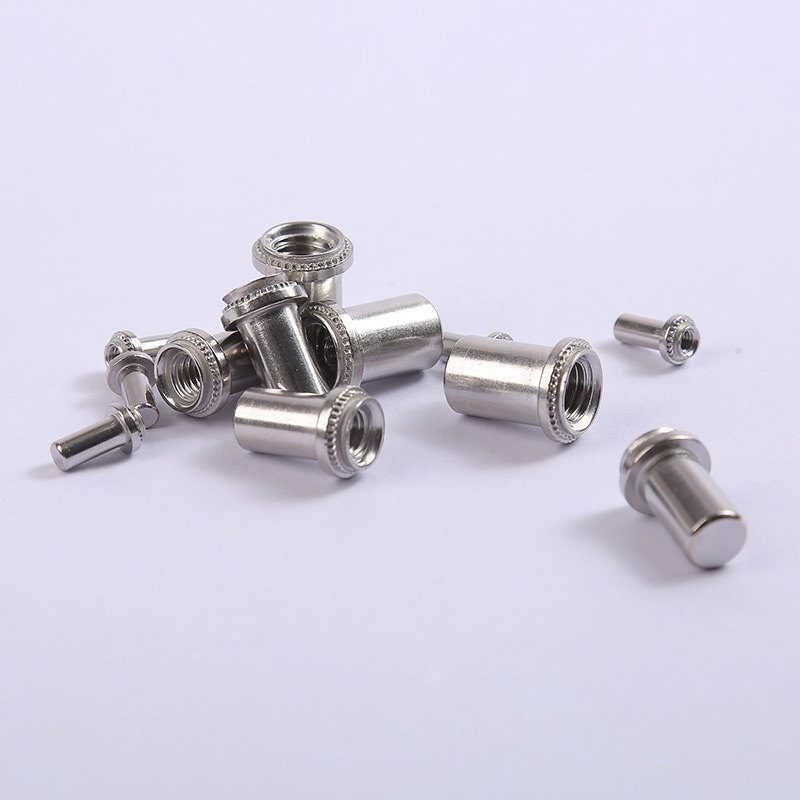

UN stainless steel sealing clinching nut is round in shape, with teeth and guide grooves on one end. It is made of high-strength stainless steel material, which is corrosion-resistant and high-temperature-resistant. The sealing performance of this nut is better than that of ordinary nuts.

One big plus of the UN sealing clinching nut is how reliable it is in tough conditions. The clinch design is really sturdy,it resists being pushed out or twisted off, so the thread stays put even with vibrations. The key thing is the built-in seal: when you install the nut, the seal gets squished, which creates a solid barrier right away. This blocks moisture, dust, gases, and liquids from getting in around where the nut is clinched.

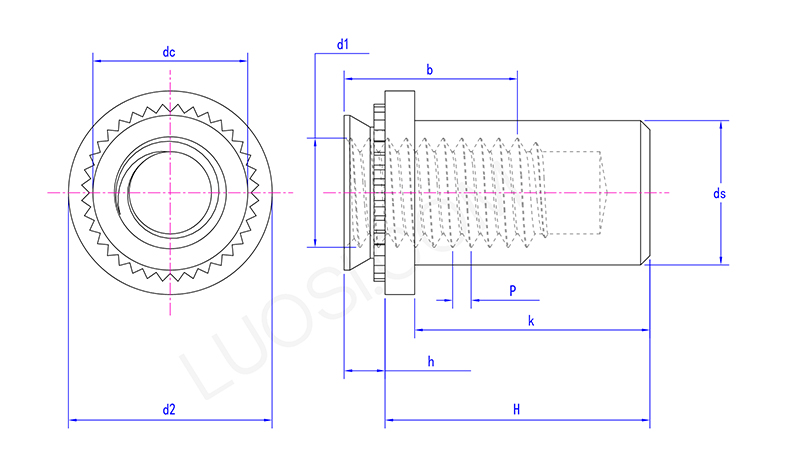

Mon	440-1	440-2	632-1	632-2	832-1	832-2	032-1	032-2	0420-1	0420-2
P	40	40	32	32	32	32	32	32	20	20
b min	0.21	0.21	0.23	0.23	0.28	0.28	0.28	0.28	0.31	0.31
d1	#4	#4	#6	#6	#8	#8	#10	#10	1/4	1/4
d1 min	0.24	0.24	0.27	0.27	0.3	0.3	0.33	0.33	0.42	0.42
d2 max	0.26	0.26	0.29	0.29	0.32	0.32	0.35	0.35	0.44	0.44
dc max	0.165	0.165	0.187	0.187	0.212	0.212	0.249	0.249	0.343	0.343
ds max	0.15	0.15	0.169	0.169	0.204	0.204	0.235	0.235	0.305	0.305
h max	0.038	0.054	0.038	0.054	0.038	0.054	0.038	0.054	0.054	0.087
H max	0.39	0.39	0.39	0.39	0.45	0.45	0.45	0.45	0.57	0.57
H min	0.37	0.37	0.37	0.37	0.43	0.43	0.43	0.43	0.55	0.55
k max	0.335	0.335	0.335	0.335	0.385	0.385	0.385	0.385	0.5	0.5

What specific stainless steel grade is used for UN sealing clinching nut, and why?

Our UN stainless steel sealing clinching nuts in stainless steel usually use 304 (A2) or 316 (A4) grades. 304 is great for general rust resistance and shaping, which works for most settings. 316 is better against chlorides and acids, so it’s key for marine or chemical jobs. Both grades make sure these nuts last a long time and work reliably within their temp range. T
