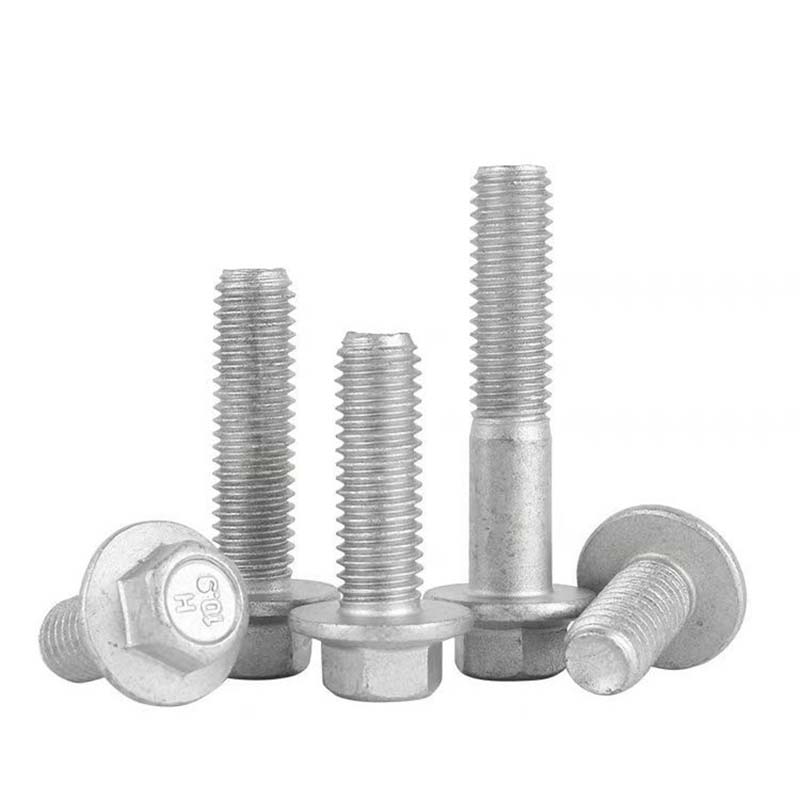

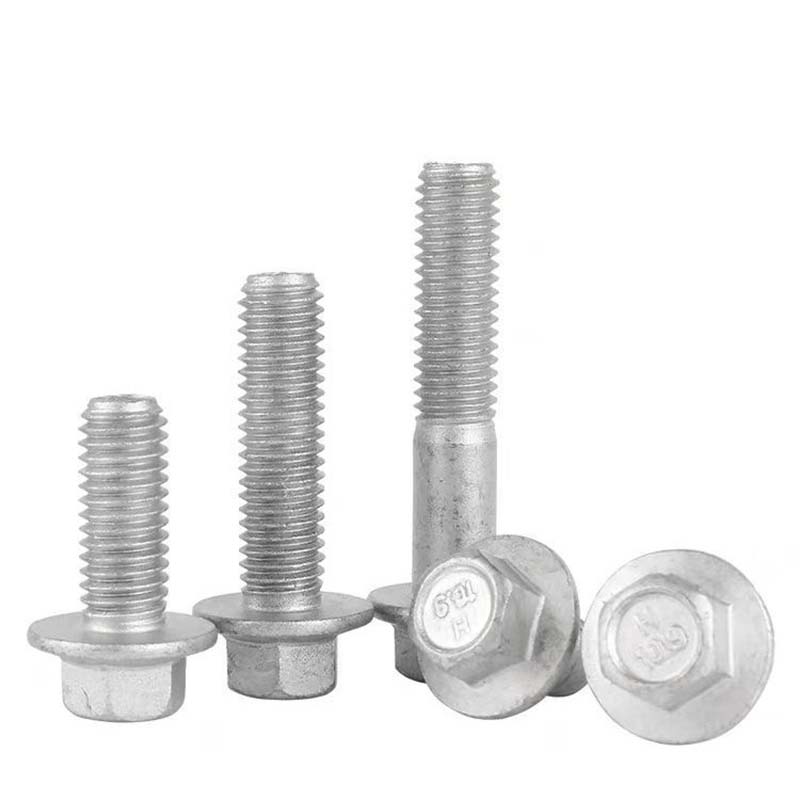

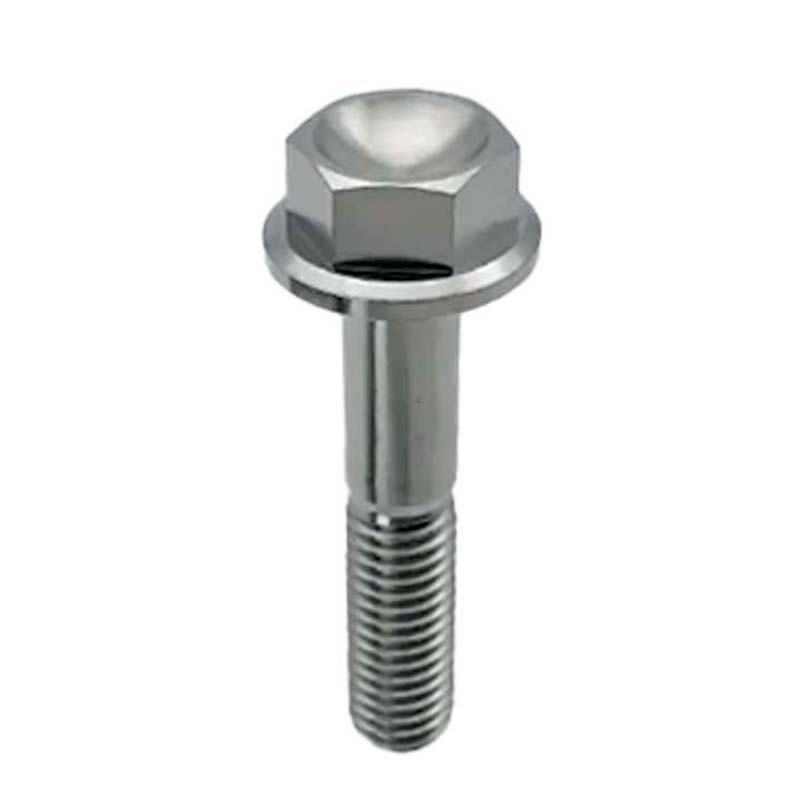

Type B Large Hexagon Head Flange Bolts

Xiaoguo® produces type B large hexagon head flange bolts in accordance with the Q186-1999 standard. They have high strength and bearing capacity and are not easy to loosen. The shape and size of the thread meet the standard, which enhances stability.They can be used in harsh environments.

Model:Q 186-1999

Send Inquiry

Product Description

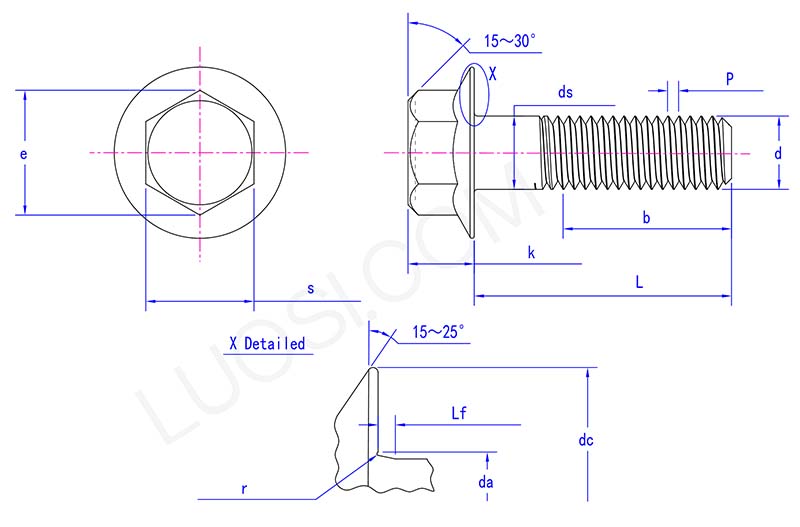

Mon	M5	M6	M8	M10	M12	M14	M16	M20
P	0.5\|0.8	0.75\|1	1\|1.25	1\|1.25\|1.5	1\|1.25\|1.5\|1.75	1\|1.5\|2	1\|1.5\|2	1.5\|2\|2.5
da max	6.2	7.4	10	12.5	15.2	17.7	20.7	25.7
dc max	11.8	14.2	18	22.3	26.6	30.5	35	43
ds max	5	6	8	10	12	14	16	20
ds min	4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67
e min	8.56	10.8	14.08	16.32	19.68	22.58	25.94	32.66
Lf max	1.4	2	2	2	3	3	3	4
k max	5.4	6.6	8.1	9.2	10.4	12.4	14.1	17.7
r min	0.1	0.1	0.15	0.2	0.25	0.3	0.35	0.4
s max	8	10	13	15	18	21	24	30
s min	7.64	9.64	12.57	14.57	17.57	20.16	23.16	29.16

Type B large hexagon head flange bolts are produced in accordance with the standard of Q 186-1999 and their quality is very guaranteed. Our bolts feature outstanding performance and stable connections. We can deliver them quickly to save your time.

Features

Type B large hexagon head flange bolts can be used to fix shaking warehouse conveyor belts. They can clamp the rollers onto the thin frame. The function of the flange is to prevent the bolts from wearing out the metal. They can ensure the normal operation of the production line and prevent any malfunctions.

B-type large hexagon flange bolts can also be used to fix the swaying RV awning. It can be firmly fixed on the expressway. The flange can firmly hold the aluminum roof without causing it to crack, and the hexagonal head can effectively resist the vibration of potholes. Enable you to drive easily and safely on the road.

B type large hexagon flange bolts can also be used to fix shaky industrial fans. Flanges can absorb motor vibrations. They can easily and stably connect fans, allowing you to bid farewell to noise and enjoy the cool breeze brought by fans.

Product selling point

The characteristics of type B large hexagon head flange bolts are that they are strong, durable and stable. They can withstand sufficient tensile and compressive forces, and they are not easily broken or deformed under pressure. They are suitable for use in high-intensity environments.
