Slotted For Control Crown Nut With Slot

Slotted For Control Crown Nut With Slot has its primary function of being used in conjunction with a cotter pin to prevent the nut from loosening under vibration. A robust ERP system allows Xiaoguo®—acting as the supplier—to manage complex orders and provide real-time updates to customers.

Model:GB/T 9457-1988

Send Inquiry

Product Description

We guarantee that all orders for Slotted For Control Crown Nut With Slot will be transported quickly and reliably. We have established partnerships with large global logistics companies such as DHL, FedEx and UPS - thus, if you require air freight services, the goods will be delivered promptly.

For large-volume orders (with a large number of items), we will switch to sea transportation. This method is more cost-effective and effective, with a fixed shipping plan to major ports. Our logistics team will ensure that your slot-shaped conical nut orders can be processed and dispatched quickly. We will also provide you with tracking information so that you can keep track of the progress of your order at any time.

Low transportation costs

The transportation cost for our Slotted For Control Crown Nut With Slot is quite competitive. Due to the high density of metal fasteners, we can package them in a way that maintains a low volume weight - and this usually means lower shipping costs.

We handle a large volume of goods, so we can obtain favorable prices from the shipping companies. We will pass on these savings to you. Before you confirm the order for channel head nuts, we will provide you with a clear and competitive freight quote. This way, you will know that the logistics cost is worthwhile.

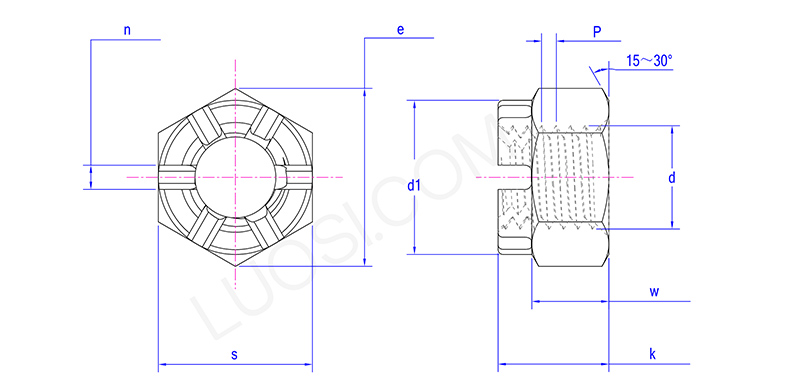

Product Parameters

Mon	M18	M20	M22	M24	M27	M30	M33	M36
P	1.5\|2	1.5\|2	1.5\|2	1.5\|2	1.5\|2	1.5\|2	1.5\|2	1.5\|2\|3
d1 max	25	28	30	34	38	42	46	50
d1 min	24.16	27.16	29.16	33	37	41	45	49
e min	29.56	32.95	37.29	39.55	45.2	50.85	55.37	60.79
k max	23.6	26.3	29.8	31.9	34.7	37.6	41.5	43.7
k min	22.76	25.46	28.96	30.9	33.7	36.6	40.5	42.7
n max	5.7	5.7	6.7	6.7	6.7	8.5	8.5	8.5
n min	4.5	4.5	5.5	5.5	5.5	7	7	7
s max	27	30	34	36	41	46	50	55
s min	26.16	29.16	33	35	40	45	49	53.8
w max	17.16	20.3	21.8	23.9	26.7	28.16	32.5	34.7
w min	16.9	19.46	20.5	23.06	25.4	27.76	30.9	33.7

FAQ

Q:What are the typical applications for a Slotted For Control Crown Nut With Slot?

A:The Slotted For Control Crown Nut With Slot is usually used in places where there’s a lot of vibration and safety matters most. Common uses include holding wheel bearings on axles, kingpins, aircraft control linkages, and heavy machinery in place.

Since you can use a cotter pin with it, this slotted crown nut is a go-to choice for stopping really bad failures in systems that are always moving.
