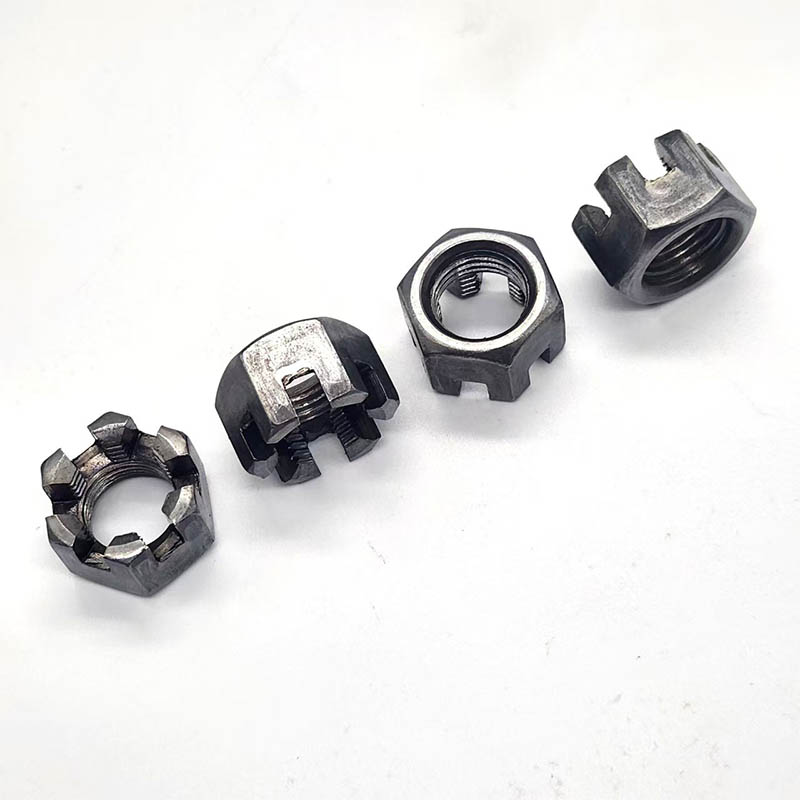

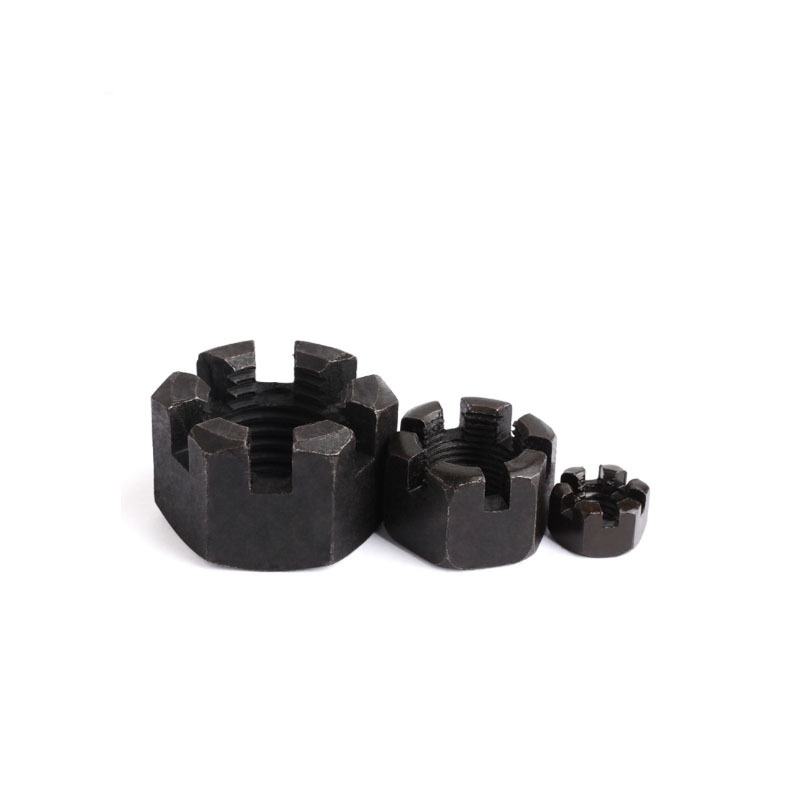

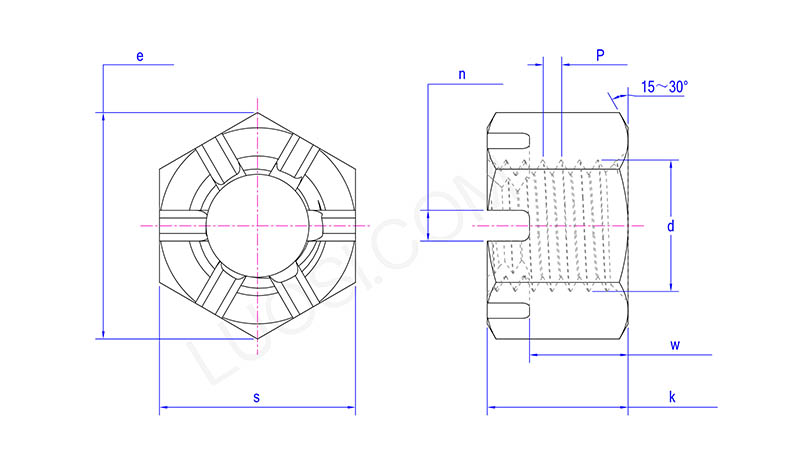

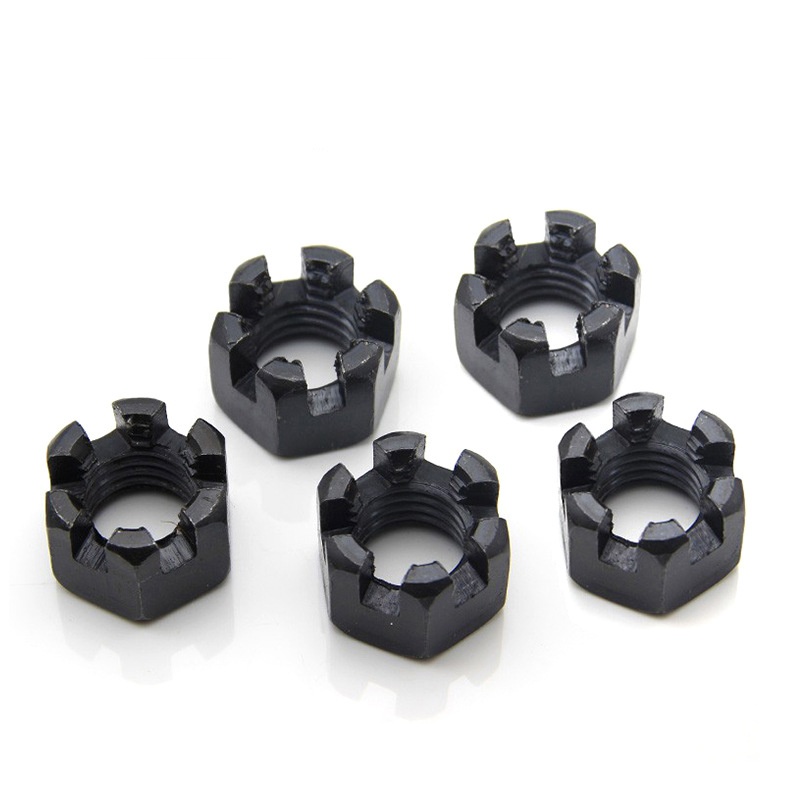

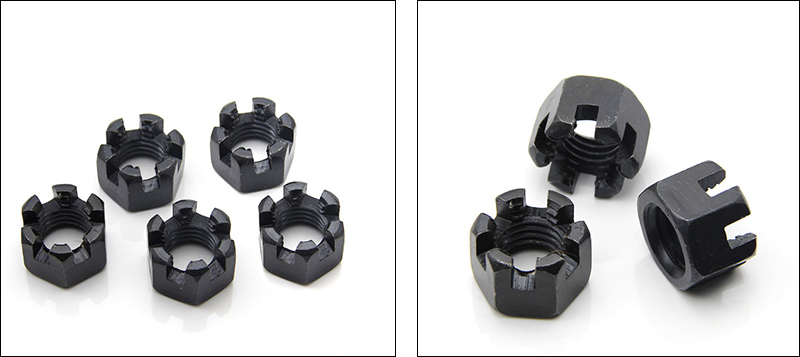

Hexagon Slotted Nut

Advantages in processing technology：

（1）Thread Rolling

One clear advantage with a Hexagon Slotted Nut is how the threads are made. Rolling compresses the material instead of cutting, giving a denser, smoother thread surface. That lowers the chance of galling or thread damage during assembly, and improves fatigue resistance.

（2）Slotting Process

The slots need consistent positioning so a cotter pin fits without forcing. Good process control keeps the slots aligned with the hex flats, so you don’t deal with misaligned openings that slow down installation. For safety-critical joints, that consistency matters.

（3）Cold Forging

The nut body is often cold forged, especially for standard sizes. It shapes the nut in one go, leaving a clean grain structure without weak points from machining. It’s faster and wastes less material, keeping costs down without cutting strength.

（4）Inspection

Decent manufacturers check slot dimensions and thread fit before packaging. That means the nuts you get actually work with standard bolts and cotter pins. No surprises like narrow slots or tight threads—just consistent parts.

Product surface treatment:

（1）Plain Steel

No coating, just raw. Cheap and works indoors if dry, but rusts fast with moisture.

（2）Zinc Plating

Light protection against humidity and occasional splashes. Common for automotive or machinery use. Clear or yellow zinc doesn’t affect slot fit or thread engagement.

（3）Stainless Steel

No plating needed—304 or 316 material. Costs more but handles wet, outdoor, or salty conditions without peeling. For a Hexagon Slotted Nut used in harsh spots, stainless saves rust issues later.

（4）Black Oxide

Dark finish with minimal thickness, so slot dimensions and cotter pin fit stay unchanged. Offers only light corrosion protection—suits dry indoor use or non-reflective surfaces.

Product tests before delivery

（1）Thread Check

We just run go/no‑go gauges on every Hexagon Slotted Nut to make sure the threads match the standard. If the go gauge doesn’t screw on right or the no‑go goes in too far, we pull those pieces out.

（2）Hardness & Strength

We test hardness to make sure it fits the right grade—like 8, 10, or 12 for steel, or A2/A4 for stainless. For some batches, we also do proof load testing to be sure they hold up under tension without cracking or stripping.

（3）Slots & Cotter Pin Fit

We check the slots for size and where they’re positioned. A cotter pin should slide through without having to force it. If a slot is off or has burrs, the nut won’t lock down properly.

（4）Surface & Coating

For plated nuts, we check coating thickness and how well it sticks. Salt spray tests get run on coated lots to see how they handle rust—anywhere from 48 to 1000 hours, depending on the spec.

（5）Magnetic Particle Inspection (for high‑grade lots)

On critical batches, we do 100% magnetic particle inspection to catch surface cracks or material flaws you can’t see with the naked eye.

How is the product shipped：

We ship it orders based on quantity. Small batches go by courier like DHL or FedEx—packed in sealed bags and cartons, with tracking provided.

For bulk, we use sea or air freight. Cartons get palletized and wrapped with stretch film, and each pallet is labeled. For sea shipments, we add moisture barrier bags inside the cartons to protect against humidity during longer transit.

We handle export paperwork—commercial invoices, packing lists, certificates. Getting documents right upfront makes customs smoother. Once shipped, we send tracking or vessel details with the estimated arrival.

If you have specific shipping instructions, just let us know when placing the order. For Hexagon Slotted Nut shipments, we keep it simple: packed well, documented clearly, and shipped within the lead time.
