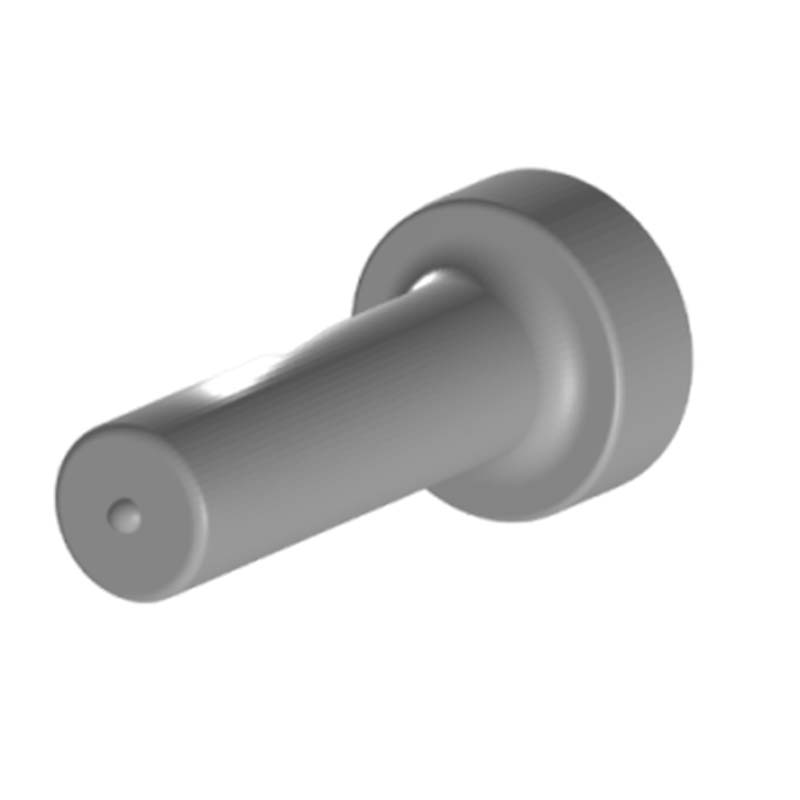

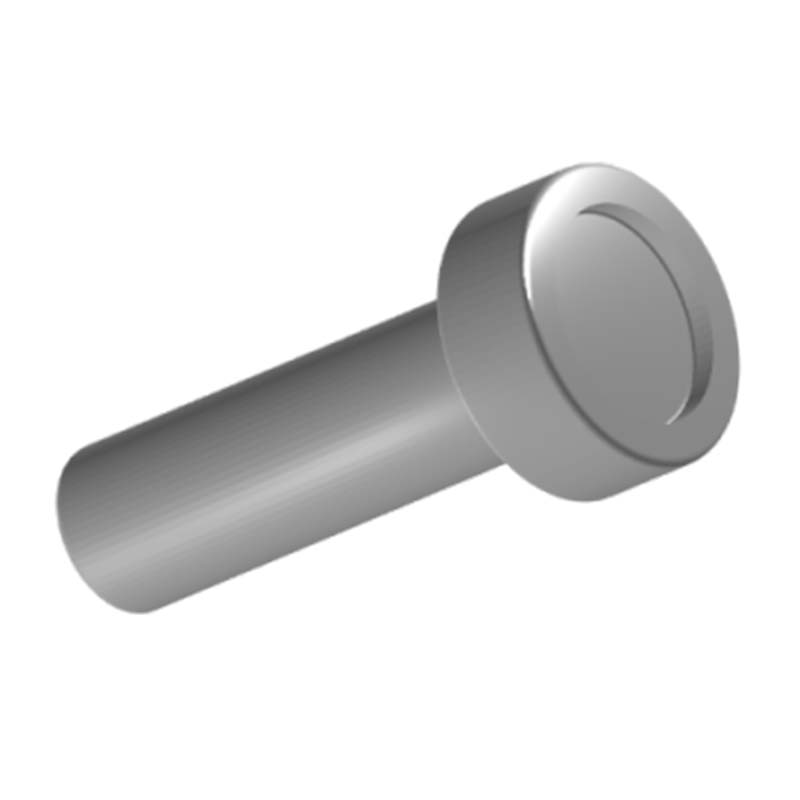

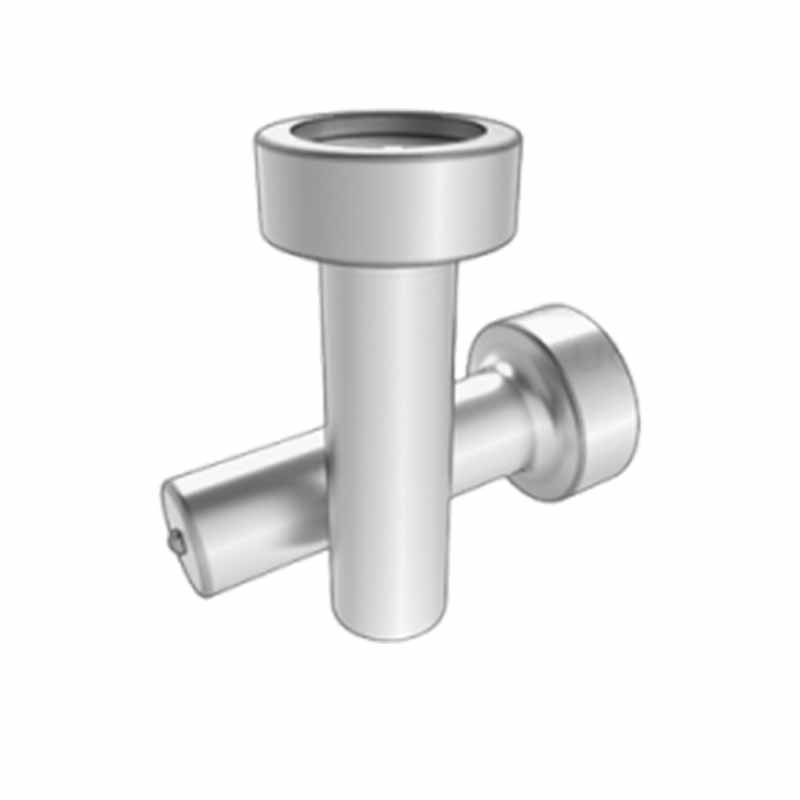

Shear Connector For Arc Welding

Shear connector for arc welding is a process where a metal stud is quickly and firmly welded onto another metal component using an electric arc, creating a long-lasting and high-strength connection. The stud bolts come in various styles and have wide applicability. They strictly follow the standards of JIS B1198-1995.

Installation Advantages

The shear connector process enables you to directly add threaded columns on the metal surface without the need for drilling. Using a stud welding gun, it can fix the studs, create an electric arc, and then insert it into the molten metal. Instantly, you have a strong anchor point for connecting panels, pipes or supports. No need for nuts or operation from the back.

Shear connector for arc welding is the main method for insulation work. Using a CD welding gun, hundreds of screws can be welded onto storage tanks or pipelines within a few minutes. Just press the glass fiber or mineral wool onto the screws and seal them. In industrial boilers or pipeline systems, their speed and durability are superior to adhesives or cable ties.

Attach the shear connector directly to the steel frame of the distribution panel. Using a stud gun, it only takes a few seconds. Now, you have a clean, permanent M10 threaded protrusion. Attach the heavy grounding cable terminal directly with a bolt to it. No drilling/tapping is required to achieve perfect metal-to-metal contact, ensuring safety.

Product Feature

The shear connector for arc welding can precisely determine the welding position of the studs, with the error being able to be controlled very tightly, thus ensuring the installation accuracy. The welding process is precisely controlled by the equipment, and the quality of each weld is very stable. It has excellent adaptability to metals of different thicknesses and materials.
