Shakeproof 12 Point Washer Nut
  • Shakeproof 12 Point Washer NutShakeproof 12 Point Washer Nut
  • Shakeproof 12 Point Washer NutShakeproof 12 Point Washer Nut
  • Shakeproof 12 Point Washer NutShakeproof 12 Point Washer Nut
  • Shakeproof 12 Point Washer NutShakeproof 12 Point Washer Nut
  • Shakeproof 12 Point Washer NutShakeproof 12 Point Washer Nut

Shakeproof 12 Point Washer Nut

Shakeproof 12 Point Washer Nut is often selected by engineers when a high-strength, vibration-resistant fastening solution with built-in load distribution is required. As a professional manufacturer, Xiaoguo® offers a wide array of surface treatments, from zinc plating to hot-dip galvanizing, for this type of washer nut to enhance its corrosion resistance.
Model:MS 3376B-1971

Send Inquiry

Product Description

We have designed packaging for the Shakeproof 12 Point Washer Nut to ensure their absolute safety during transportation. These nuts will be placed in sturdy multi-layer cardboard boxes - we will seal these boxes to prevent any spillage of items.

If you place a large order, we will pay special attention to the packaging of the goods - first stack all the boxes firmly, and then secure them with sturdy wooden pallets to minimize shaking or scattering during transportation. This sturdy packaging method is specifically designed to withstand the pressure, jolts and vibrations during long-distance international transportation. Thus, when the Shakeproof 12 point washer nut reach you, they will be in perfect condition.

Excellent product quality

These Shakeproof 12 Point Washer Nut are almost impossible to be damaged during transportation. Firstly, these components are made of sturdy metal - they can withstand significant pressure. Additionally, our packaging is multi-layered and robust, thus effectively protecting them from collisions or impacts.

We will test the packaging standards to ensure they comply with international transportation regulations, thereby guaranteeing the safety of the Shakeproof 12 point washer nut. You can rest assured that when your order arrives, it will be intact and ready for immediate use - whether for your production line or your project.

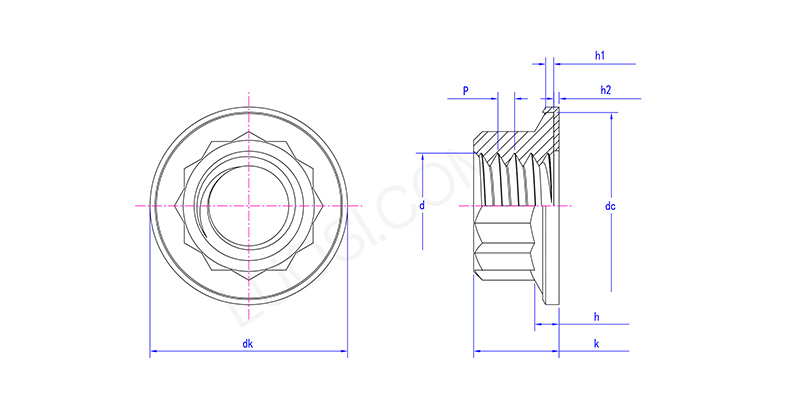

Product Parameters

Mon #10 1/4 5/16 3/8
P 32 28 24 24
dk max 0.38 0.46 0.56 0.66
dc min 0.3 0.4 0.5 0.6
h2 max 0.023 0.023
0.023
0.023
h2 min 0.013 0.013
0.013
0.013
h min 0.056 0.06 0.09 0.102
h1 max 0.031 0.036 0.042 0.042
h1 min 0.006 0.007 0.008 0.008
k max 0.243 0.291 0.336 0.361

Shakeproof 12 Point Washer Nut


FAQ

Q:How does the integrated washer on a Shakeproof 12 Point Washer Nut benefit the assembly compared to using a separate washer?

A:The built-in washer on a 12-point washer nut has a few key perks. First, you don’t have to buy or handle a separate washer—saves money and makes assembly faster. It also means you can’t forget the washer, or use one that’s the wrong size.

Most importantly, the washer’s fixed on there for good. That makes sure everything lines up perfectly, and the surface where the nut touches stays consistent. This spreads the load evenly and keeps the component’s surface from getting damaged. All this built-in design stuff makes the 12-point washer nut a more reliable and efficient way to fasten things.
