      Rugged 12 Point Washer Nut
      • Rugged 12 Point Washer NutRugged 12 Point Washer Nut
      • Rugged 12 Point Washer NutRugged 12 Point Washer Nut
      • Rugged 12 Point Washer NutRugged 12 Point Washer Nut
      • Rugged 12 Point Washer NutRugged 12 Point Washer Nut
      • Rugged 12 Point Washer NutRugged 12 Point Washer Nut

      Rugged 12 Point Washer Nut

      Rugged 12 Point Washer Nut boasts a key edge as it’s an all-in-one component, eliminating the need for a separate washer and cutting down assembly time significantly. As a supplier with deep experience in global markets, Xiaoguo® understands exactly what’s needed from a global supply chain and has built a tough, resilient operational system to avoid disruptions.
      Model:MS 3376B-1971

      Send Inquiry

      Product Description

      If you purchase Rugged 12 Point Washer Nut in bulk, we will offer you a discount based on the quantity. Usually, if you place an order for more than 20,000 units at one time, you will qualify for the tiered discount - so the more units you purchase, the better the discount will be.

      For large projects that require a large amount of materials, simply contact our sales team. They can prepare a customized quote for you. We not only hope to provide competitive prices and favorable terms to promote long-term cooperation, but also hope that you can get the maximum value from the expenses you have incurred.

      Product Details

      This Rugged 12 Point Washer Nut usually has a natural metal surface treatment, such as ordinary carbon steel or stainless steel. If you want it to have stronger corrosion resistance, we can perform different surface treatments. For example, zinc yellow coating, zinc blue coating, black oxide coating or hot-dip galvanizing (this treatment will give it a distinct gray appearance).

      These surface treatments not only protect the nut but also allow you to distinguish different uses or grades through color coding. Moreover, we usually pack them in large boxes, barrels or any custom packaging you require for delivery.

      Excellent anti-corrosion performance

      We’ve got 12-point washer nuts in different materials—like carbon steel, stainless steel (stuff like A2-70, A4-80), and aluminum.

      For the carbon steel nuts, common coatings to keep them from rusting are zinc plating (usually with blue, yellow, or clear chromate), geometric zinc-flake coatings (those are for when you need better rust resistance), or black oxide. Which one you go with just depends on what the environment calls for.

      And since the 12-point washer nut has a built-in washer, the coating stays undamaged where the nut touches the surface. That means it keeps protecting the nut the same way all through use.

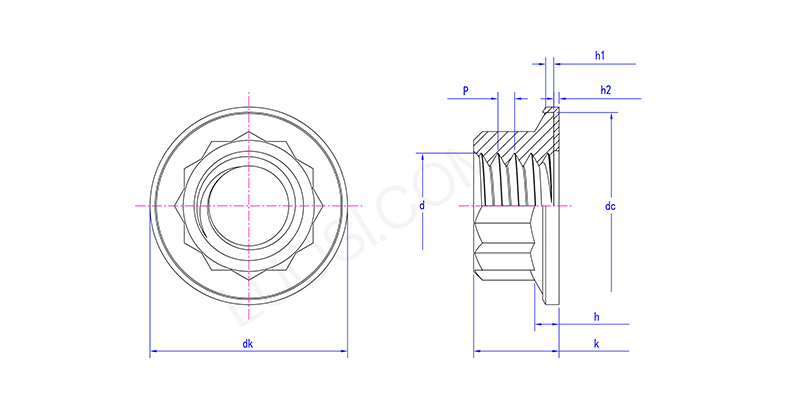

      Product Parameters

      Mon #10 1/4 5/16 3/8
      P 32 28 24 24
      dk max 0.38 0.46 0.56 0.66
      dc min 0.3 0.4 0.5 0.6
      h2 max 0.023 0.023 0.023
      0.023
      h2 min 0.013 0.013
      0.013
      0.013
      h min
      0.056 0.06 0.09 0.102
      h1 max 0.031 0.036 0.042 0.042
      h1 min
      0.006 0.007 0.008 0.008
      k max 0.243 0.291 0.336 0.361
      Rugged 12 Point Washer Nut
