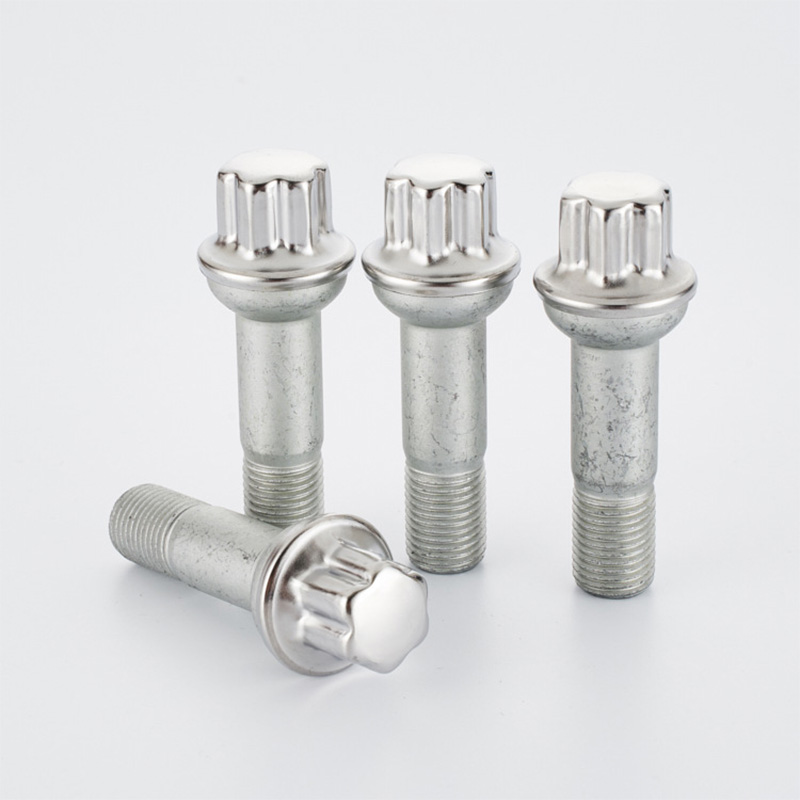

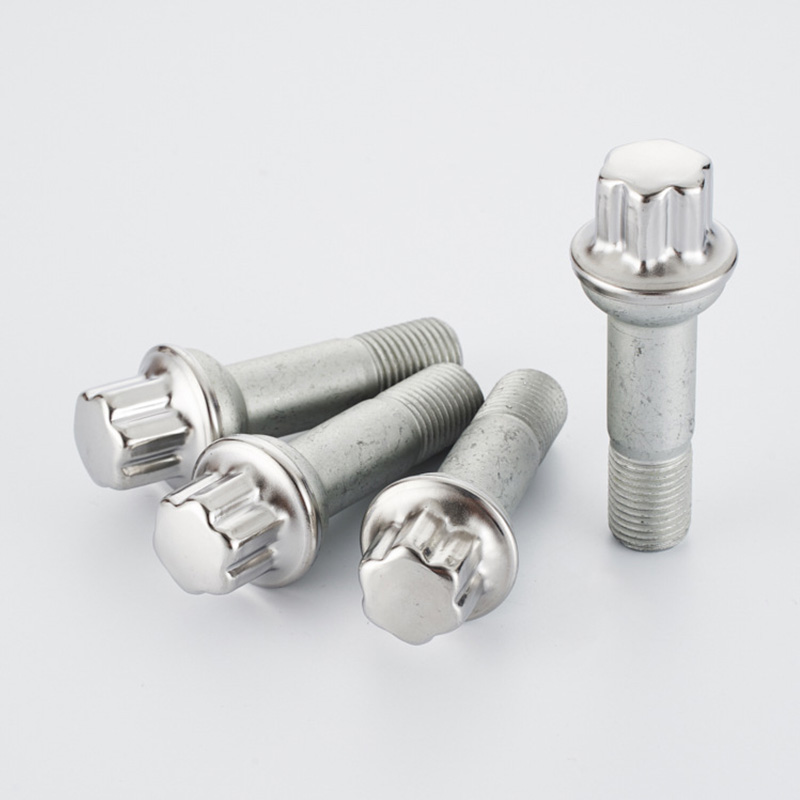

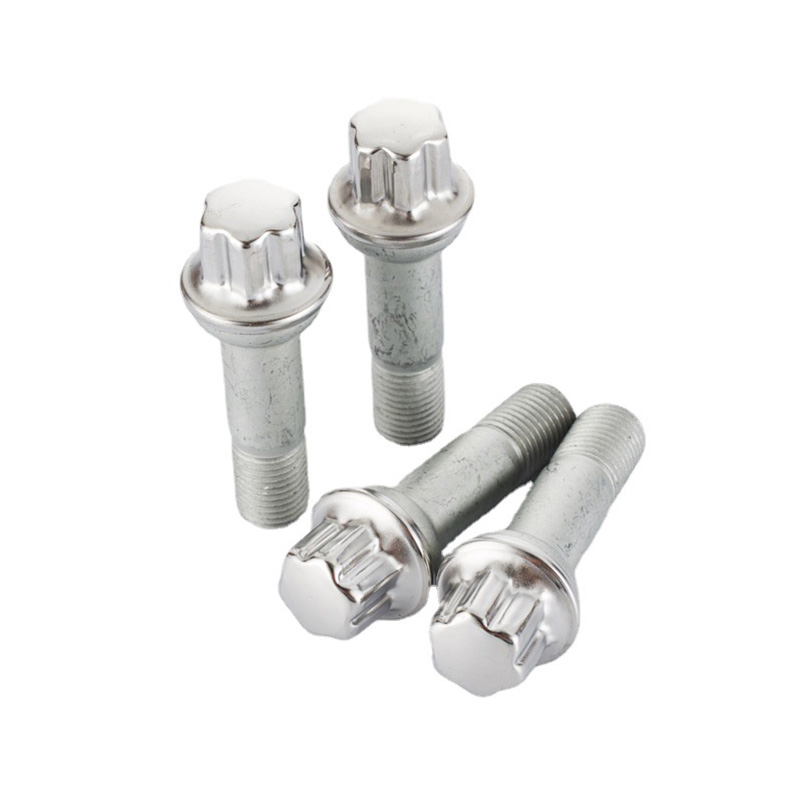

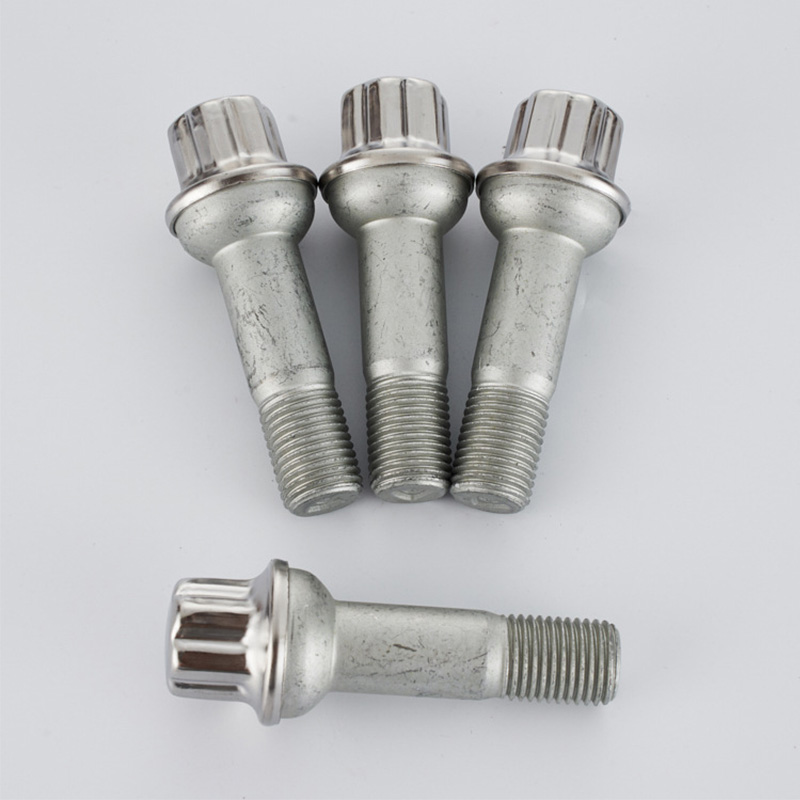

Professional Grade Hexalobular Head Flange Bolts
  • Professional Grade Hexalobular Head Flange BoltsProfessional Grade Hexalobular Head Flange Bolts
  • Professional Grade Hexalobular Head Flange BoltsProfessional Grade Hexalobular Head Flange Bolts
  • Professional Grade Hexalobular Head Flange BoltsProfessional Grade Hexalobular Head Flange Bolts
  • Professional Grade Hexalobular Head Flange BoltsProfessional Grade Hexalobular Head Flange Bolts
  • Professional Grade Hexalobular Head Flange BoltsProfessional Grade Hexalobular Head Flange Bolts

Professional Grade Hexalobular Head Flange Bolts

Professional Grade Hexalobular Head Flange Bolts from the supplier Xiaoguo® come with honest pricing and no hidden costs. The unique head of these bolts is designed to be driven by a corresponding internal star-shaped socket tool.
Model:DIN 34800-2005

Send Inquiry

Product Description

The Professional Grade Hexalobular Head Flange Bolts are usually cheaper than many other specialized fasteners. This is because they are mass-produced, so the cost per bolt is lower. The built-in flange is like a washer, so you don't need to purchase a separate washer - this helps save time and money in the project.

When you place a larger order (e.g. 10,000 units or more), the unit price of the product will generally be reduced by 5% to 15%. They are sturdy and practical, and are a highly cost-effective choice for manufacturers who want to reduce costs without sacrificing quality.

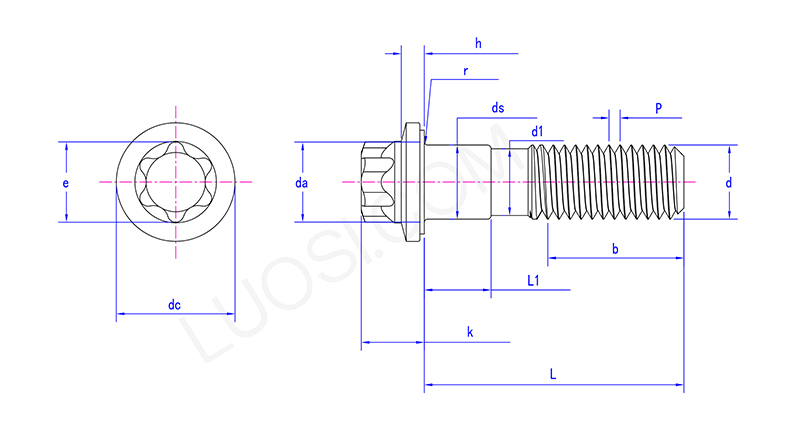

Mon M5 M6 M8 M10 M12 M14 M16 M18 M20
P 0.8 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2|2.5 1.5|2|2.5
da max 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4
dc max 11.8 14.2 17.9 21.8 26 29.9 34.5 38.6 42.8
d1 4.48 5.35 7.19 9.03 10.86 12.70 14.70 16.38 18.38
ds max 5 6 8 10 12 14 16 18 20
ds min 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
e 7.3 9.2 10.95 12.65 16.4 18.15 21.85 25.4 28.9
k max 6.5 7.5 10 12 14 16 19 21.5 24
k min 6.25 7.25 9.75 11.75 13.75 15.75 18.75 20.25 23.75
r min 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8
L1 min 7.5 9 12 15 18 21 24 27 30
h min 1.45 1.75 2.65 3.6 4.1 5.1 5.5 6 6.5
h max 1.7 2 2.9 3.9 4.4 5.4 5.8 6.4 6.9

Professional Grade Hexalobular Head Flange Bolts


Product Details

If you place a large order of Professional Grade Hexalobular Head Flange Bolts, you can enjoy a discount. Orders over 5,000 pieces typically offer a 3% discount; orders over 10,000 pieces offer a 5% discount; and for larger orders over 50,000 pieces, we offer custom discounts of up to 8%.

This enables enterprises to purchase in bulk more conveniently, reduce repeated orders, and save transportation costs. If you place the order through the internet, the discount will automatically take effect at checkout, regardless of whether you are making a small or large purchase. The process is very simple and convenient.

Main materials and product performance

The Professional Grade Hexalobular Head Flange Bolts are usually made of carbon steel, stainless steel (such as 304 or 316), and alloy steel. Carbon steel bolts are a more economical choice for daily use. This stainless steel bolt has a good anti-rust effect and is very suitable for use in places such as open air or the ocean. In response to the needs of use in harsh industrial environments, alloy steel bolts are generally subjected to heat treatment to increase their strength so that they can work reliably under heavy load conditions.

The material you choose will affect the lifespan of the bolts, the weight they can bear, and their performance when exposed to moisture or chemical substances.
