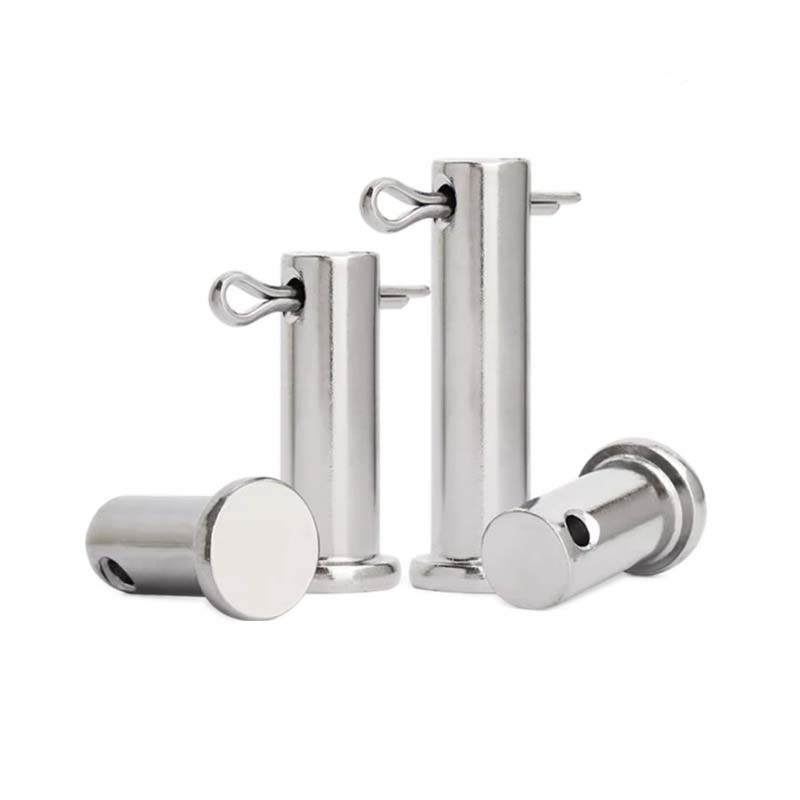

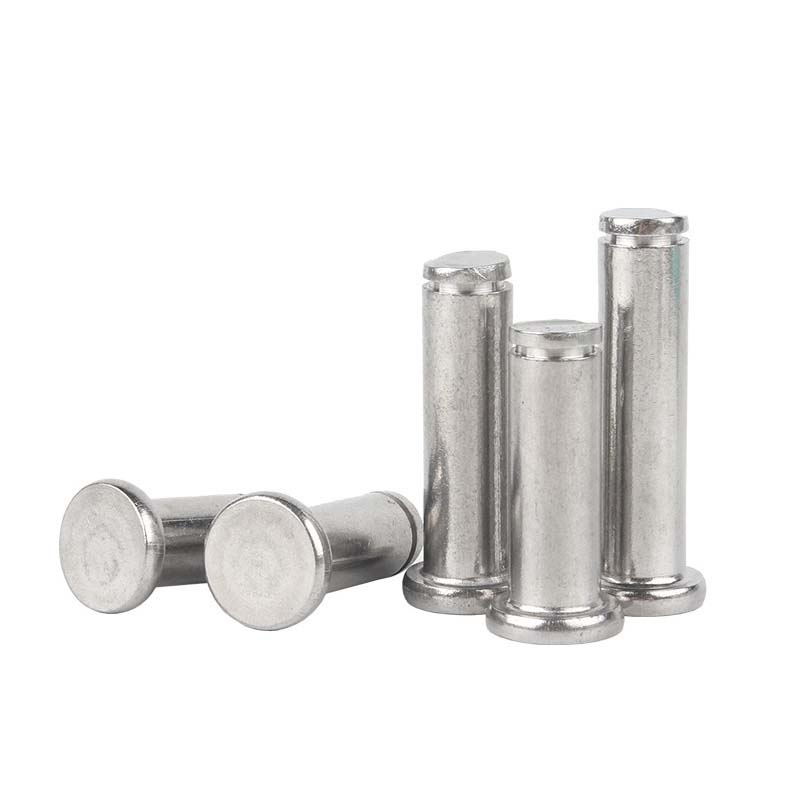

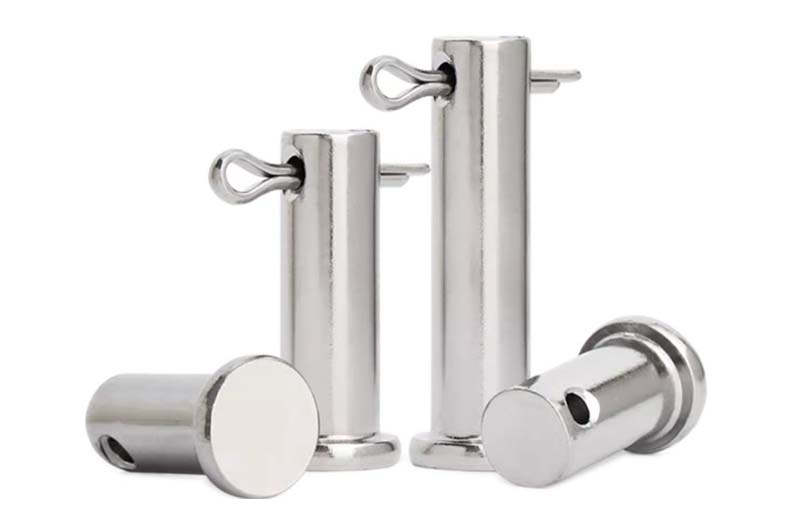

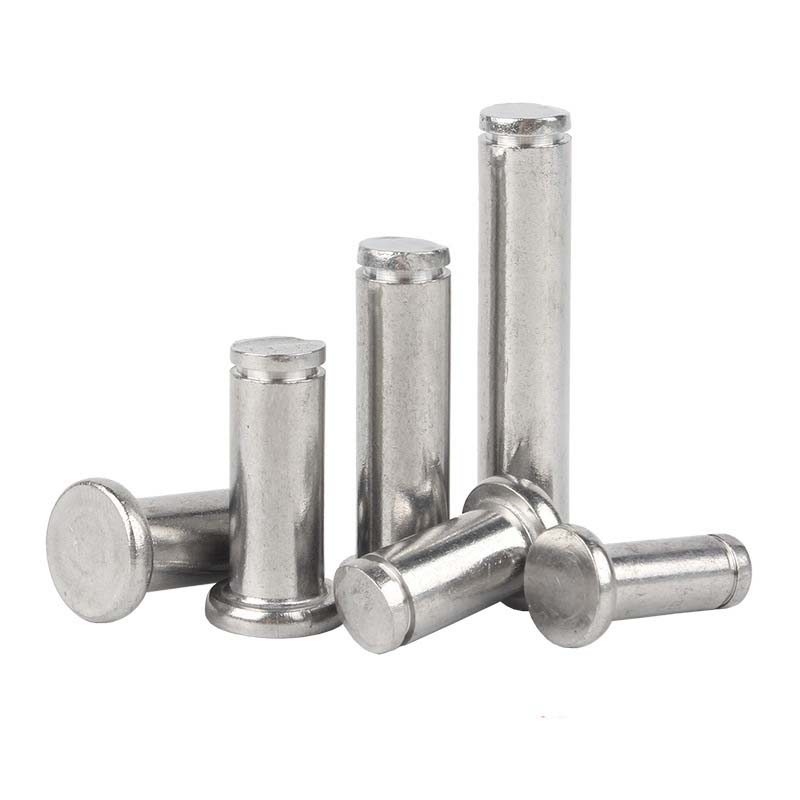

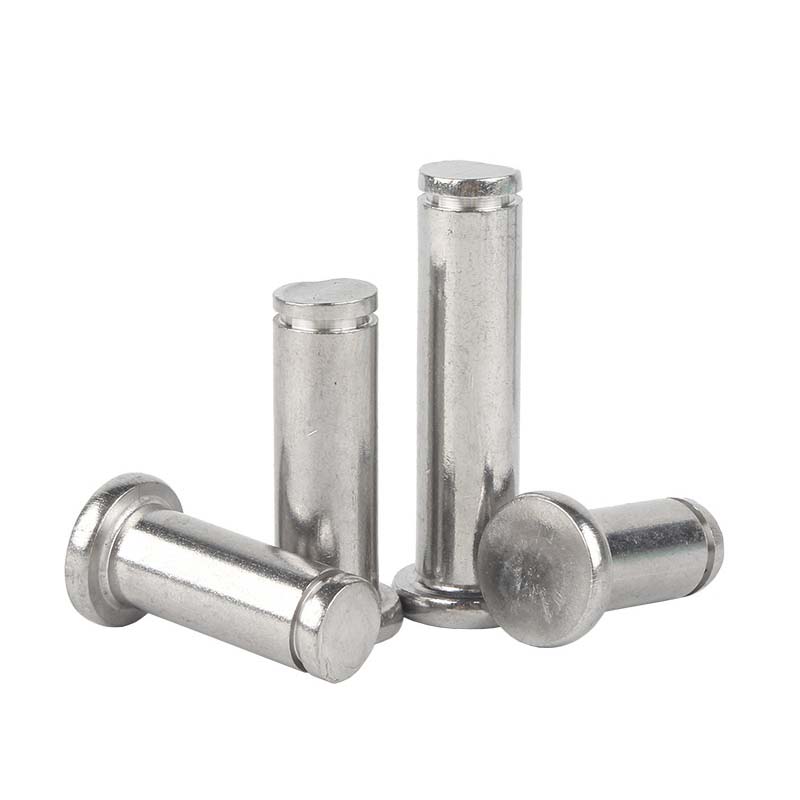

Pin Shaft With Head

Pin shaft with head is often used in industries such as automotive, construction and agriculture. In vehicles, they connect hydraulic cylinder rods, throttle linkages and suspension components, etc. In construction machinery, they hold boom and bucket attachments in place even under severe vibrations.Aerospace uses precise clevis pins for flight control linkages, and marine setups use them in rigging and steering parts.

They’re also super useful in robotics, conveyor belts, and renewable energy stuff like wind turbines,anywhere parts need to pivot while carrying weight.

Regular maintenance

Pin shaft with head require regular maintenance, including checking them for wear, rust, or bending.

First, clean the pins with a solvent to get rid of grit or dirt that could scratch them. Then, put grease on the parts that pivot to cut down on friction and wear. If a cotter pin is bent or rusty, swap it out right away,you don’t want the pin to come loose.

In machines that move fast, look at the cross-holes to make sure they haven’t stretched out. Keep extra clevis pins in a dry place with controlled temperature so their coatings don’t get damaged. When you install them, test the torque to avoid overloading. For important applications, use ultrasonic checks to find any cracks inside the pin that you can’t see from the outside.

Quality Certification

Q: Are your pin shaft with head compliant with international safety certifications?

A: Yep, our Pin shaft follow standards like ISO 2341, DIN 1444, and ASME B18.8.2. If you need them to meet eco-friendly rules for markets that care about that stuff, we can do RoHS/REACH compliance too. We give you Certificates of Conformance (CoC) and Material Test Reports (MTR) so you can track where everything came from and how it’s made.

For aerospace or defense projects, our manufacturing is NADCAP-accredited, which means it meets strict industry standards, and we provide full documentation packages. We also have regular third-party audits to make sure we keep hitting those global quality benchmarks. That way, the end-users don’t have to worry about liability issues down the line.
