Should You Specify Partially Or Fully Threaded Hex Head Bolts For Shear-Critical Assemblies?

Hex Head Bolts from Baoding Xiaoguo Intelligent Equipment Co.,ltd optimize structural stability and assembly efficiency for shear-bearing engineering connections.

When designing shear-critical assemblies, engineers often face a choice between partially and fully threaded Hexagon Head Bolts.We emphasizes that the decision can impact structural integrity, assembly efficiency, and long-term performance. Understanding the differences between threading types is key to optimizing connections in mechanical and construction projects.

Understanding Partially vs. Fully Threaded  Head Bolts

Partially threaded bolts feature a smooth shank between the head and the start of the threads, while fully threaded bolts have threads extending along the entire length. The presence or absence of the smooth shank directly affects how the bolt behaves under shear and tensile loads.

Shear Performance and Load Distribution

Partially threaded bolts generally provide a stronger shear plane due to the unthreaded shank, which bears the load more evenly across the bolt diameter. In contrast, fully threaded bolts may experience stress concentration along the threads, potentially leading to earlier deformation if used improperly.

For projects requiring precise alignment and high shear resistance, partially threaded bolts often outperform fully threaded alternatives. Engineers should consider the contact length, bolt diameter, and material hardness when specifying bolts for critical assemblies.

Material Quality Matters

Hex Head Bolts are produced from high-quality steel bars with strict batch inspections. This ensures each bolt maintains consistent mechanical properties, reducing the risk of failures in shear-critical scenarios. Heat treatment and surface plating enhance hardness and corrosion resistance, essential for long-term performance in industrial or outdoor applications.

Practical Assembly Considerations

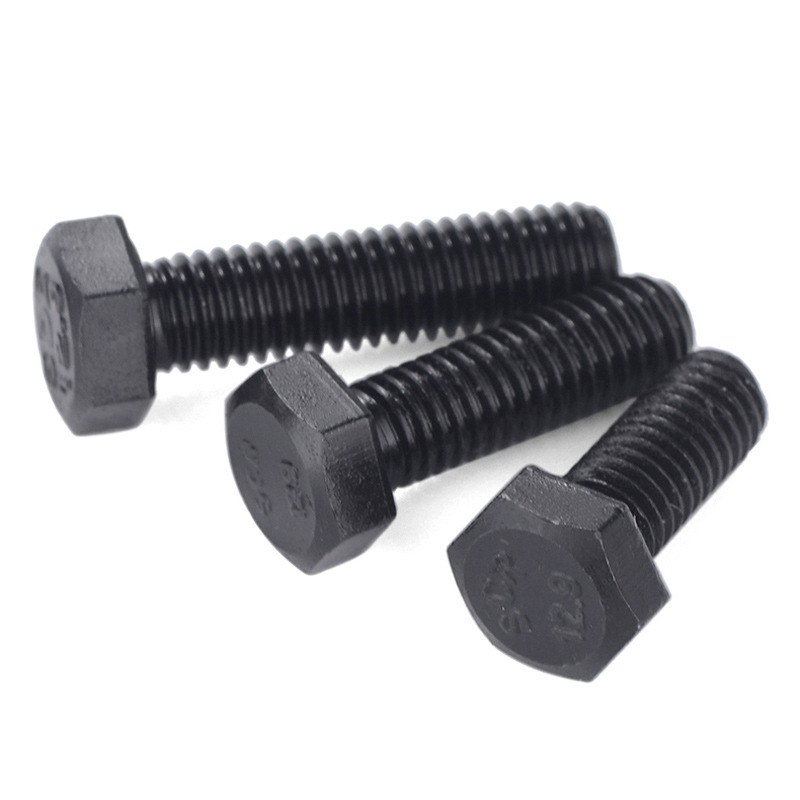

While partially threaded bolts excel under shear, fully threaded Hexagon Head Bolts offer versatility for adjustable or modular assemblies. Using fully threaded bolts allows easier accommodation of varying thicknesses or spacers, simplifying maintenance or future modifications.

Additionally, standardization in bolt dimensions and thread pitch ensures interchangeability, while careful post-processing and quality inspection minimize defective parts, a common source of assembly problems in many industrial settings.

Choosing the Right Thread Length

Key factors to guide the selection of partial versus full threading include:

- Shear planes required by design: More unthreaded shank typically provides stronger shear support.
- Assembly accessibility: Fully threaded bolts can reduce the need for precise alignment but may compromise shear performance.
- Load distribution: Properly sized partially threaded bolts distribute load more uniformly along the shank.

Addressing Industry Pain Points

A common challenge in industrial and construction projects is the variation in bolt quality, which can lead to uneven shear performance and unexpected maintenance costs. Baoding Xiaoguo's process ensures that every Hex Head Bolt undergoes raw material checks, accurate cutting, heat treatment, threading, and surface protection. This attention to detail reduces the likelihood of deformation under stress and improves reliability across assemblies.

Furthermore, consistent production settings and batch monitoring allow engineers to rely on predictable mechanical behavior, avoiding issues such as thread misalignment or uneven hardness. The availability of different sizes, from M14 to M39, combined with standard thread pitches, helps teams address a wide range of assembly requirements without compromise.

Practical Tip: Balancing Cost and Performance

Selecting the right thread type is not just a technical decision but also a cost-conscious one. Partially threaded bolts might require more precise fitting and alignment, while fully threaded bolts can simplify installation but may slightly reduce shear performance. Evaluating the criticality of shear planes, maintenance expectations, and load conditions can guide engineers toward the optimal choice.

By understanding the nuances between partially and fully threadedHexagon Head Bolt, designers and assembly teams can achieve better structural integrity, reduce the risk of component failure, and ensure long-term stability.

Shear-critical assemblies demand careful consideration of bolt threading. Partially threaded Hex Head Bolts excel where shear strength is paramount, while fully threaded versions offer flexibility and adjustability. Baoding Xiaoguo Intelligent Equipment Co.,ltd provides a range of high-quality Hexagon Head Bolt with consistent sizing, material integrity, and corrosion protection, enabling engineers to make informed decisions for durable and reliable connections.
