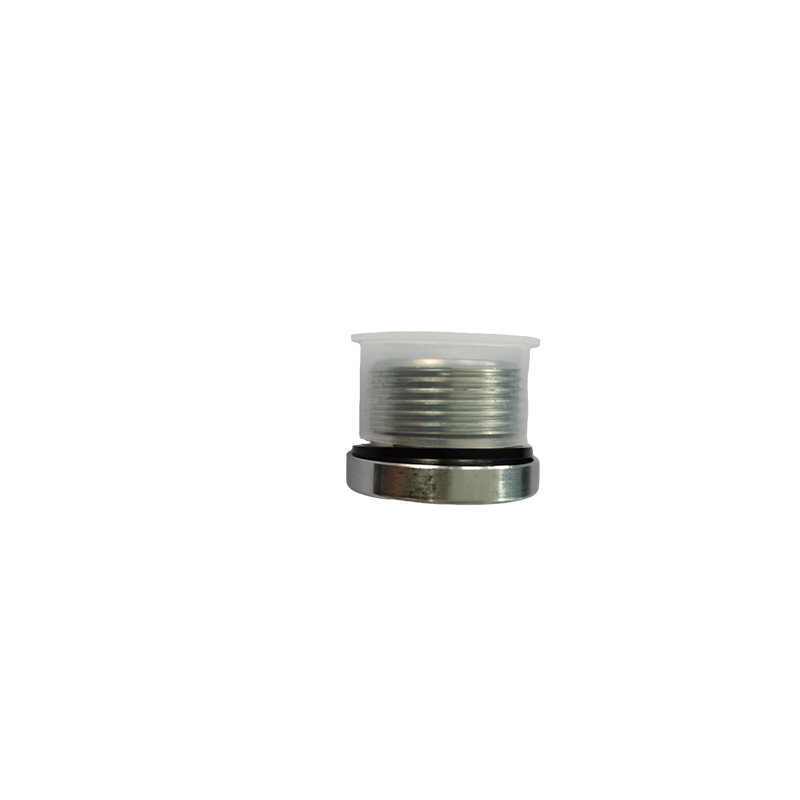

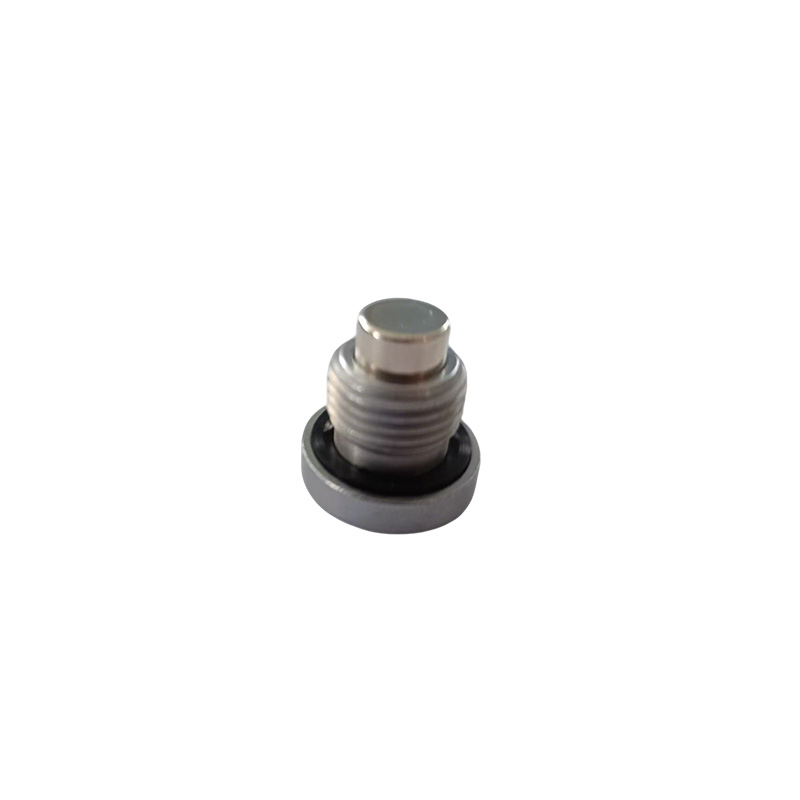

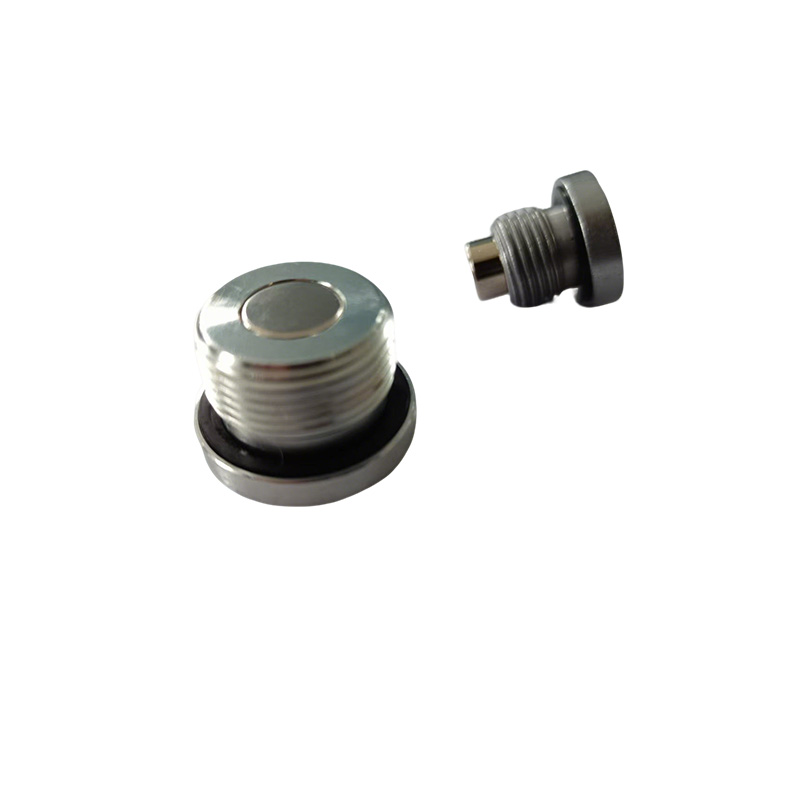

Male Metric Hollow Hex Plug

Relax and go ahead with the bulk purchase of Xiaoguo® Male Metric Hollow Hex Plug. We have a professional equipment production team and a post-sales team that provide full-process product support, enhancing the purchasing experience.

Model:DIN910

Send Inquiry

Product Description

（1）Destructive Torque Test

This is a key method for verifying the welding strength. Insert the matching bolts into the welding nuts, apply the specified torque using a torque wrench. If the Male Metric Hollow Hex Plug do not rotate and the weld points do not tear, it is considered qualified. The recommended reference torque value according to the BS 7670 standard:

M5 nut: Minimum failure torque ≥ 12 N·m

M6 nut: Minimum failure torque ≥ 20 N·m

M8 nut: Minimum failure torque ≥ 50 N·m

（2）Strip or pull-out test

Carry out destructive strip or pull-out tests to check whether a piece of metal can be pulled off from the base material at each contact point.

（3）Visual Inspection

The Male Metric Hollow Hex Plug is not tilted, and the flange surface is perfectly in contact with the workpiece.

There is no severe splashing, cracks or weld-through.

The thread gauge test was passed (the welding heat influence should not cause the thread to deform).

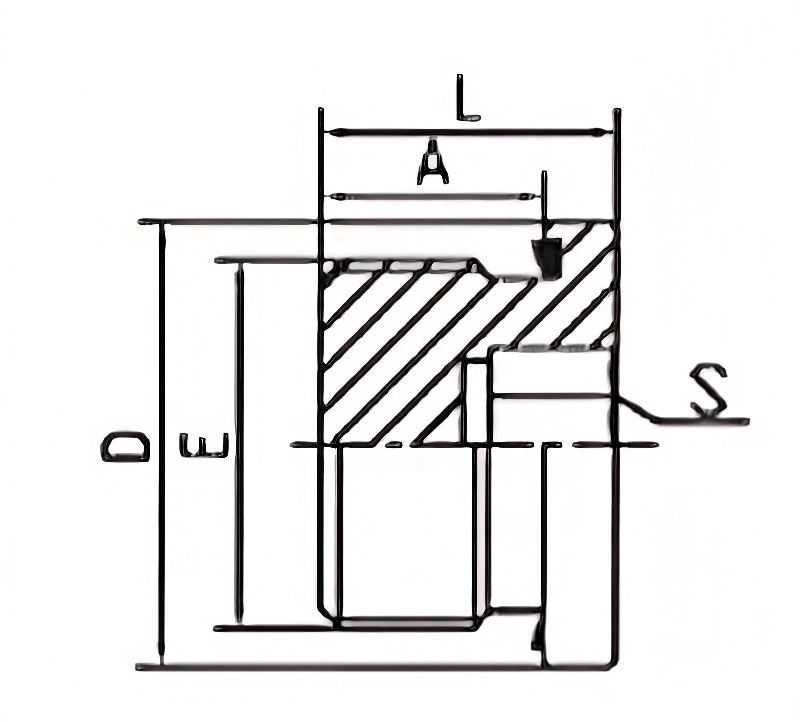

Male Metric Hollow Hex Plug

PARTNO	THREAD	ED CAPTIVE	DIMENSIONS
PARTNO	E	ED CAPTIVE	A	L	S	D	N.M
TMN08	M8x1	ED-08	8	12	4	12	8-10
TMN10	M10x1	ED-10	8	12	5	14	10-12
TMN12	M12x1.5	ED-12	12	17	6	17	15-25
TMN14	M14x1.5	ED-14	12	17	6	19	20-35
TMN16	M16x1.5	ED-16	12	17	8	22	25-40
TMN18	M18x1.5	ED-18	12	17	8	24	30-45
TMN20	M20x1.5	ED-20	14	19	10	26	35-50
TMN22	M22x1.5	ED-22	14	19	10	27	40-70
TMN24	M24x1.5	ED-24	14	19	10	29	40-70
TMN26	M26x1.5	ED-26	16	21	12	32	60-100
TMN27	M27×2	ED-27	16	21	12	32	100-135
TMN33	M33x2	ED-33	16	22	17	40	150-240
TMN42	M42x2	ED-42	16	22	22	50	250-360
TMN48	M48x2	ED-48	16	22	24	55	300-400
TMN60	M60x2	ED-60	18	26	27	70	380-450

Safety Warning

When using Male Metric Hollow Hex Plug for resistance spot welding and subsequent assembly, please strictly follow the following safety guidelines to ensure personal safety, equipment integrity, and welding quality.

（1）Wear protective equipment

When operating the welding machine, protective glasses or a face shield must be worn to prevent eye injuries from the welding splashes.

Put on fire-resistant gloves and long-sleeved work clothes to prevent the skin from being burned by flying metal.

In an environment where smoke is present, it is necessary to wear a dust mask or use a local exhaust device.

（2）Prevent electric shock

Make sure the welding machine is properly grounded and the insulation layer of the cable is intact.

Keep the area around the welding machine dry. There must be no water accumulation or oil stains on the ground.

It is strictly prohibited to operate the welding machine with bare hands in a humid environment. If operation is necessary, an insulating pad or insulated shoes should be used.

（3）Prevent splashing and fire

No flammable or explosive items (such as oil drums, solvents, paper, etc.) shall be placed in the welding area.

When the splashing is significant, fire barriers can be set up around the welding workstation.

After welding is completed, allow the workpiece to cool naturally to room temperature before stacking it. This prevents the residual heat from igniting other materials.

（4）Equipment Maintenance

Regularly check whether the electrodes are worn out and whether the locating pins are loose.

Regularly clean the metal debris inside the welding machine and on the worktable to prevent short circuits or mechanical jams.

The welding and usage of Male Metric Hollow Hex Plug should strictly follow the safety instructions. This not only ensures the safety of the operators but also effectively improves the welding quality and production efficiency.
