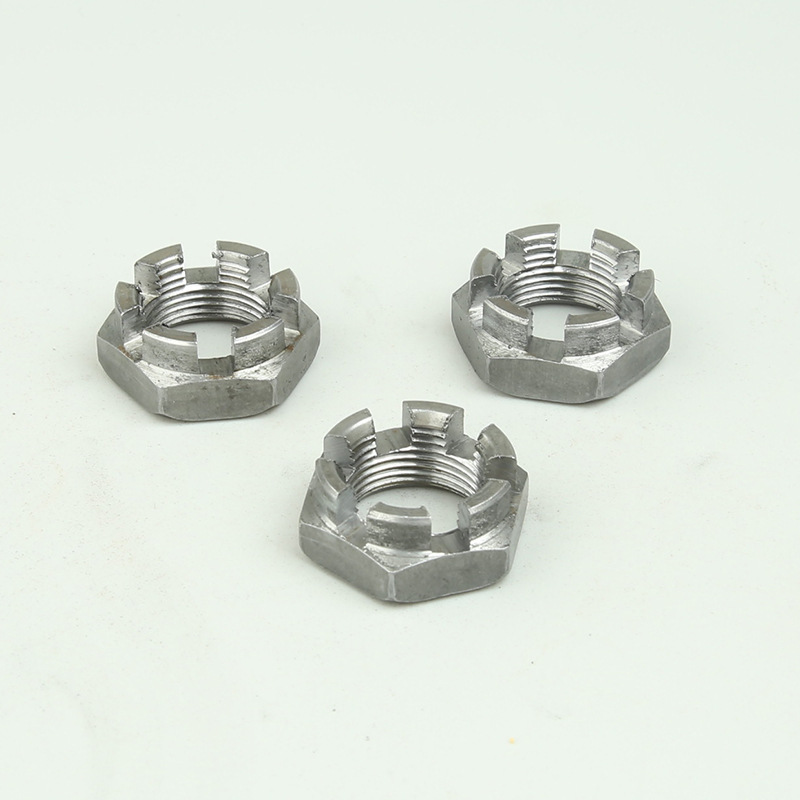

Innovatively Designed Crown Nut With Slot

The unique design of the Innovatively Designed Crown Nut With Slot allows for a cotter pin to be inserted through the aligned slot and hole, creating a positive mechanical lock. As a key supplier to the oil and gas industry, Xiaoguo® manufactures fasteners that meet extreme pressure and temperature specifications.

Model:GB/T 6178-1986

Send Inquiry

Product Description

This type of Innovatively Designed Crown Nut With Slot usually has a natural metal surface treatment effect, such as ordinary carbon steel or stainless steel.

If you want it to be more corrosion-resistant, we usually perform surface treatment on it. For example, galvanizing (which can be transparent, blue or yellow), black oxidation treatment or hot-dip galvanizing treatment. These treatments not only protect the nut but also make it present different colors.

As for packaging, these nuts are placed in sturdy boxes or barrels. The presence of the threaded slot helps prevent them from being stacked too tightly together - this way, when you need to use them, it will be more convenient to take and operate them.

Large quantity discount

If you purchase a large quantity of Innovatively Designed Crown Nut With Slot, we will offer you a discounted price. Usually, if your single order exceeds 15,000 units, you will enjoy our tiered discount - that is, the more units you purchase, the greater the discount.

If you need a large quantity of these products for a specific project, simply contact our sales team. They can provide you with a customized quote for the slotted round head nuts. We hope to offer you a favorable price, and for long-term cooperation or when you place orders regularly, we will also provide additional discounts. In this way, you can obtain these high-quality and crucial fasteners at the most favorable price.

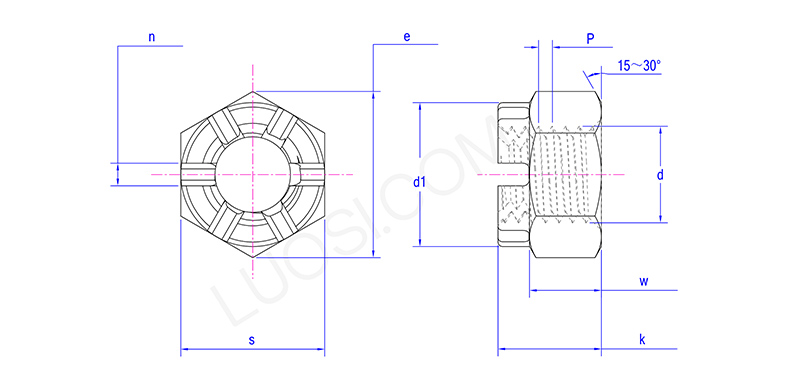

Mon	M20	M24	M30	M36
P	1.5\|2\|2.5	1.5\|2\|3	1.5\|2\|3.5	1.5\|2\|3\|4
d1 max	28	34	42	50
d1 min	27.16	33	41	49
e min	32.95	39.55	50.85	60.79
k max	24	29.5	34.6	40
k min	23.16	28.66	33.6	39
n min	4.5	5.5	7	7
n max	5.7	6.7	8.5	8.5
s max	30	36	46	55
s min	29.16	35	45	53.8
w max	18	21.5	25.6	31
w min	17.37	20.88	24.98	30.38

FAQ

Q: How do I select the correct size Innovatively Designed Crown Nut With Slot for my bolt?

A:Picking the right Innovatively Designed Crown Nut With Slot means matching a few things: the thread size (like M10 or 1/2"), the thread pitch, and the size of the wrench you’ll use.

One really important thing—after you tighten the nut, you need to make sure its slots line up with the pre-drilled hole in your bolt or stud. Our technical datasheets have all the necessary dimensions, so they’ll help you pick the perfect slotted crown nut for a secure, safe installation.
