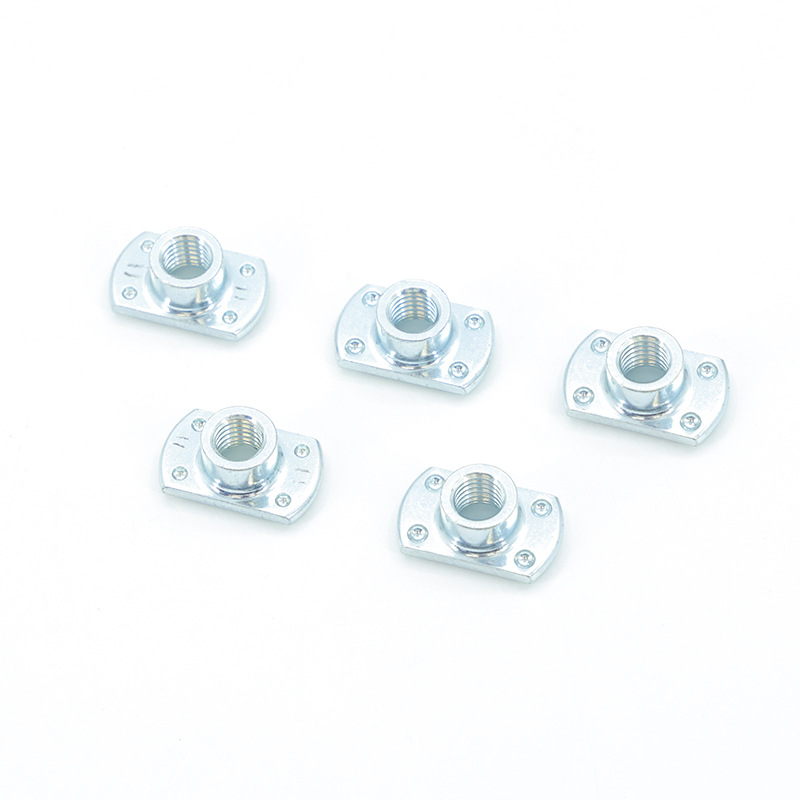

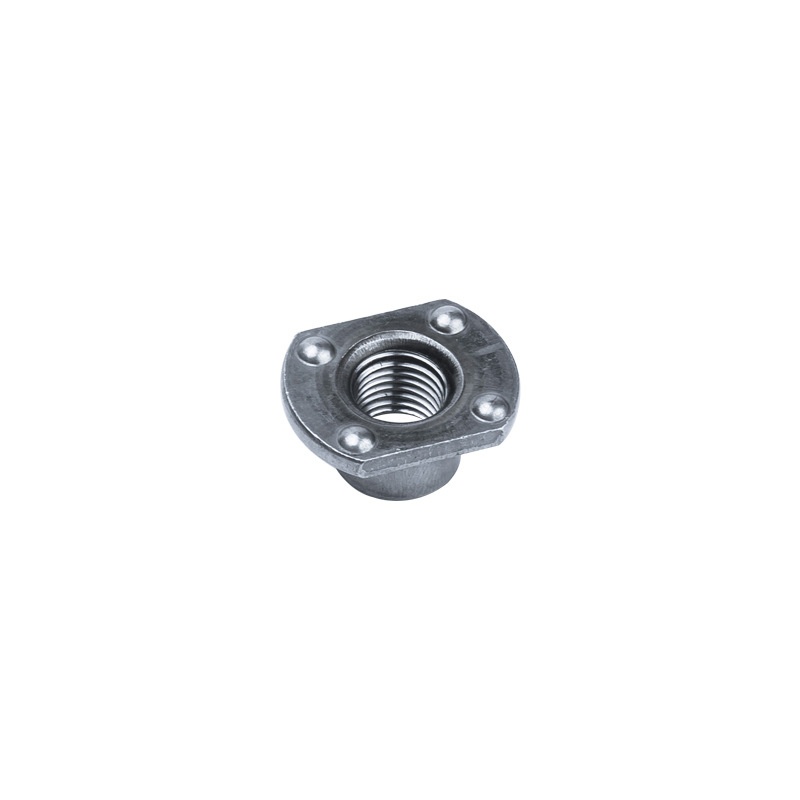

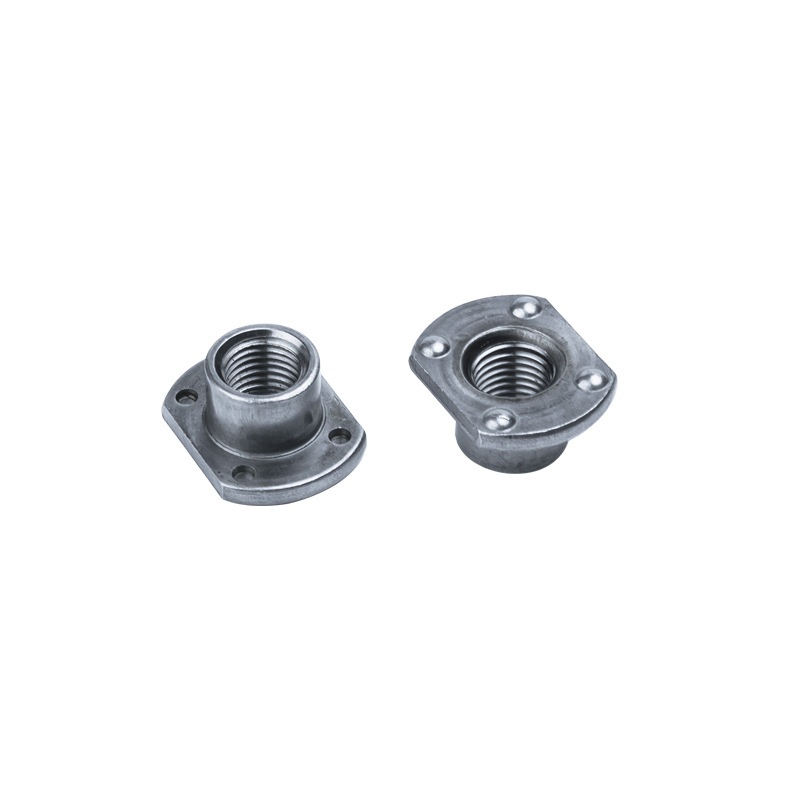

High Flange T Style Weld Nuts

Projection welding is the typical method used to install high flange T style weld nuts onto the workpiece surface. Based in China, Xiaoguo supplies a comprehensive range of bolts, nuts, screws, and washers to manufacturers, distributors, and industrial clients globally, catering to diverse sectors such as construction, automotive, and machinery.

Model:JIS B1196-3.2-1994

Send Inquiry

Product Description

High flange T style weld nuts are used a lot in electronics. They hold internal parts, circuit boards (using standoffs), brackets, and covers in metal cases, racks, and server enclosures.

In appliance making—like ovens, washers, dryers—they fasten panels, handles, heating parts, and control setups. These nuts install quickly and keep their threads solid, which helps make consumer and industrial electronics, and home appliances, efficiently and durably.

Anti-rust treatment:

Zinc electroplating is the most common way to protect carbon steel High flange T style weld nuts from rust. It adds a layer that takes the damage first, so the nut itself resists rust pretty well—good for indoor use or places with just a little corrosion.

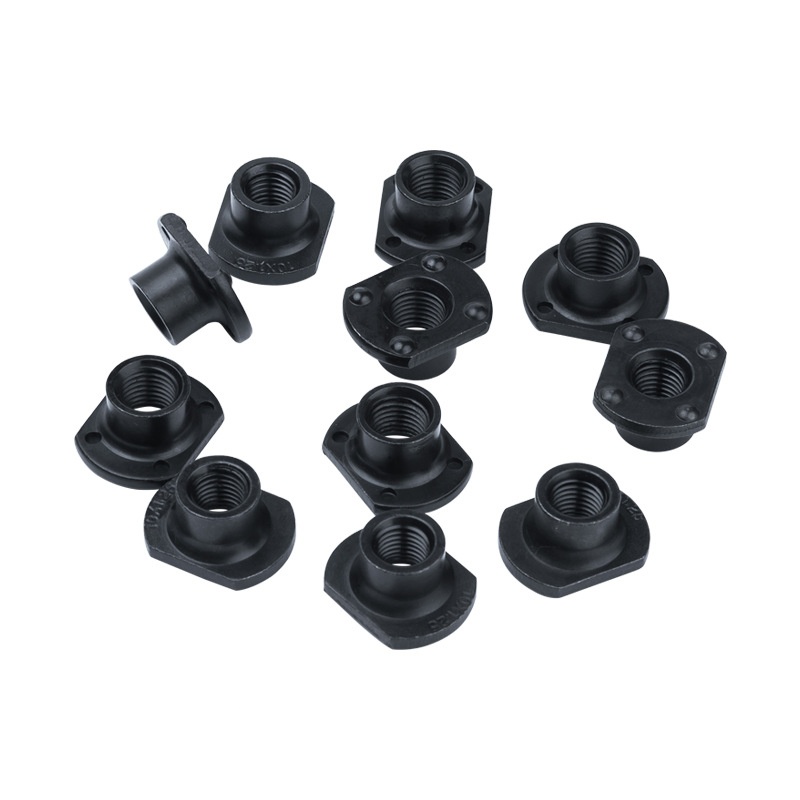

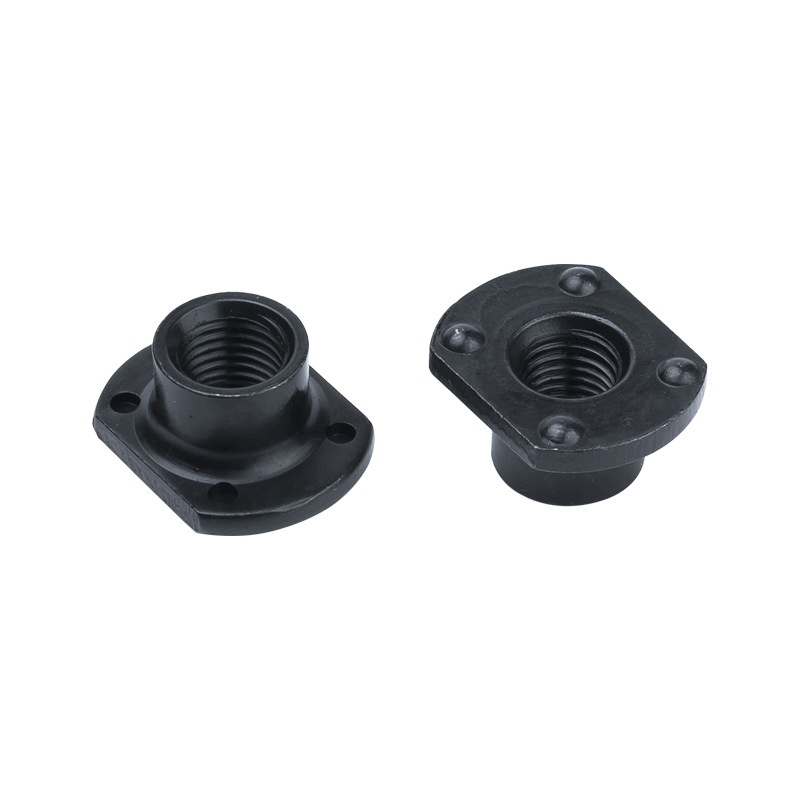

Zinc plating can be clear (like blue or silver), yellow chromate (shiny, rainbow-like), or black oxide. These options help with looks or add a bit more rust protection. It’s a cheap coating, but it’s important for keeping High-Flange T-Style weld nuts in good shape and looking okay for regular uses.

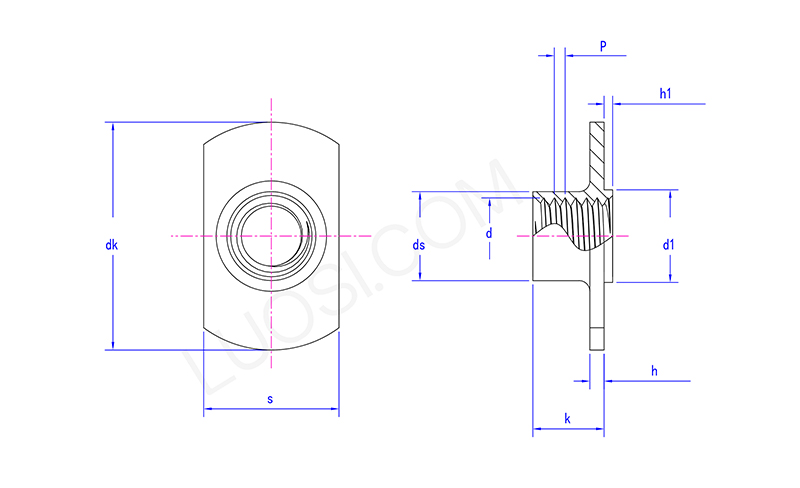

Mon	M4	M5	M6	M8	M10	M12
P	0.7	0.8	1	1丨1.25	1.25丨1.5	1.5丨1.75
dk max	23.7	24.7	27	29	33.2	37.2
dk min	22.3	23.3	25	27	30.8	34.8
s max	12.25	12.25	14.3	14.3	19.4	21.5
s min	11.75	11.75	13.7	13.7	18.6	20.5
ds max	5.9	6.7	8.3	10.2	13.2	15.2
ds min	5.4	6.2	7.8	9.5	12.5	14.5
k max	5.9	6.9	7.5	9	10.6	11.8
k min	5.1	6.1	6.5	8	9.4	10.2
h max	1.4	1.4	1.85	1.85	2.3	2.3
h min	1	1	1.35	1.35	1.7	1.7
d1 max	6.9	6.9	8.9	10.9	12.9	14.9
d1 min	6.7	6.7	8.7	10.7	12.7	14.7
h1 max	0.8	0.8	0.8	0.8	1.2	1.2
h1 min	0.6	0.6	0.6	0.6	1	1

Packaging safety:

Our High flange T style weld nuts come in bulk, packed in strong, moisture-proof cartons or boxes that work for shipping overseas. Inside, we often use VCI paper or bags—those are the ones that help prevent rust during shipping and storage. If needed, we put thread protectors on them too.

For big orders of T-Style nuts, we can do custom packaging, like pails or pallet loads.
