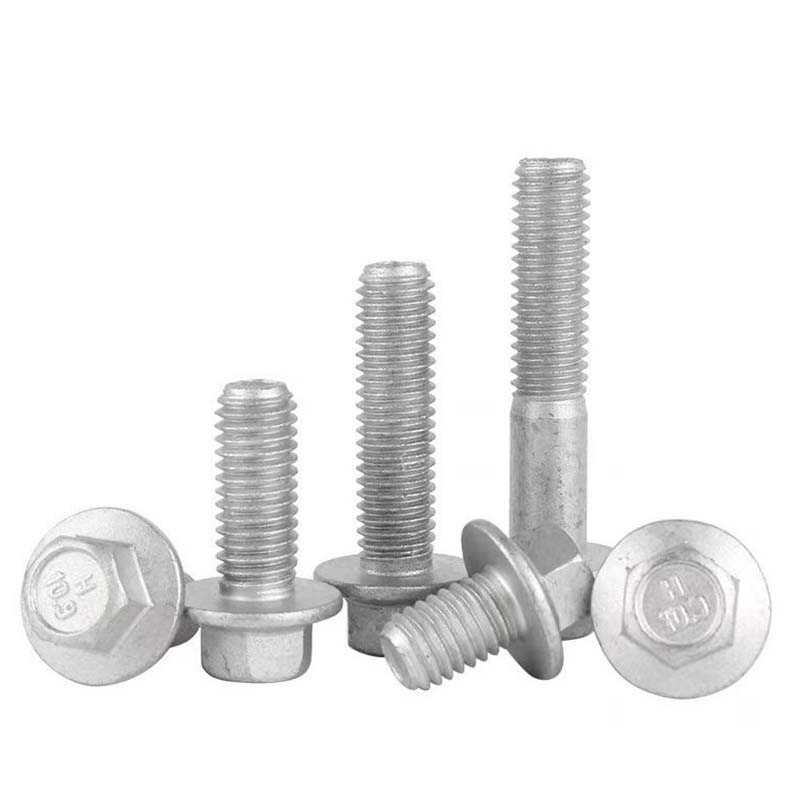

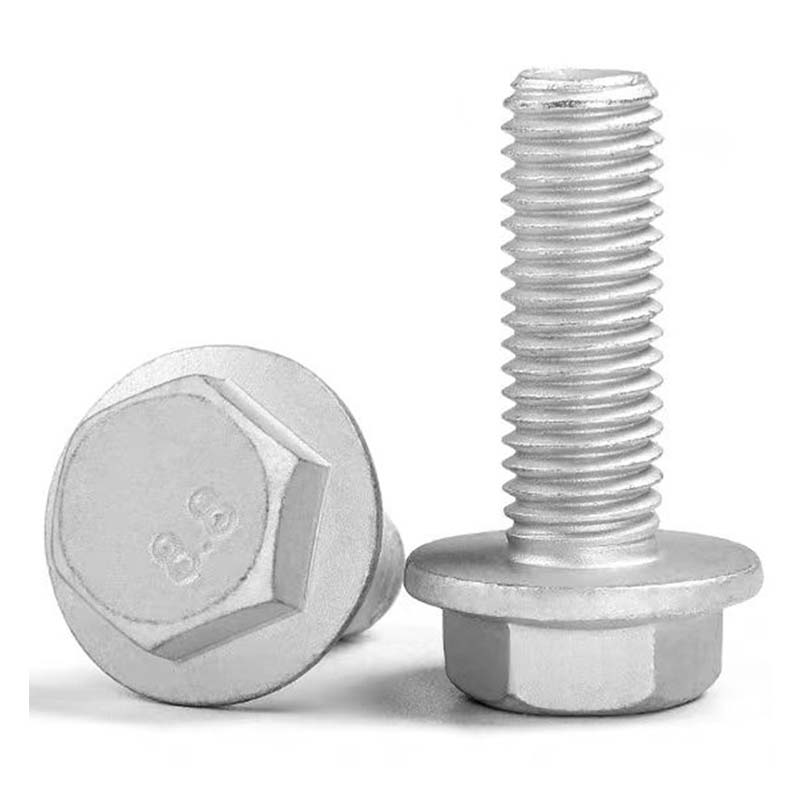

Heavy Hex Flange Screws

Heavy hex flange screws are a type of screw that can be used in heavy equipment. Because they bear a large load, they can connect steel structures in bridges, high-rise buildings and large venues. Xiaoguo® is a supplier that strictly adheres to quality standards and manufactures products that can be used in harsh environments.

Model:IFI 538-1982

Send Inquiry

Product Description

Heavy hex flange screws have a hexagonal head that is convenient for tightening with a wrench or socket, a flange surface that is used to disperse stress and expand the contact surface, and a threaded screw position that enhances the tightening effect and prevents it from slipping out of the connection hole.

Our heavy duty hex flange screws are made of tough materials that can withstand extreme temperatures and heavy loads. Xiaoguo® offers customization, if you require special dimensions and surface treatments, please contact us. We can provide you with a detailed quote.

Applications and parameters

Heavy hex flange screws can be used in outdoor buildings such as Bridges or mobile phone signal towers. They are rust-proof and firmly connected. They can be used for structural joints or heavy-duty anchoring. No matter how many years of wind and rain they have been exposed to, they will not shake.

Farmers installed heavy hex screws on tractors and grain silos. Flanges can protect rusty metals from cracking under force. Even when wearing gloves covered with dirt, they can be tightened easily. You can use it for a long time in barns and fields without polishing.

Power line workers use heavy hexagon flange screws for tower maintenance. They can keep the steel columns aligned during storms, and the hexagonal heads are used in conjunction with heavy-duty sleeves. You can choose galvanized steel for rust prevention.

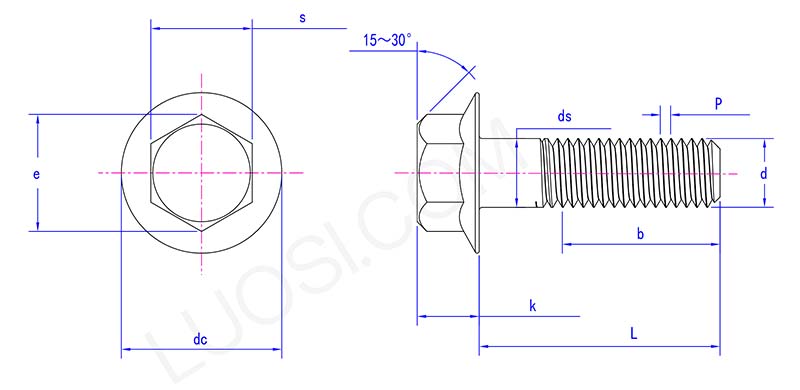

Heavy hex flange screws structure diagram

Mon	M10	M12	M14	M16	M20
P	1.5	1.75	2	2	2.5
dc max	22.3	26.6	30.5	35	43
ds max	10	12	14	16	20
ds min	9.78	11.73	13.73	15.73	19.67
e min	16.32	19.68	22.94	25.94	32.66
e max	17.32	20.78	24.25	27.71	34.64
k max	8.6	10.4	12.4	14.1	17.7
s max	15	18	21	24	30
s min	14.57	17.57	20.48	23.16	29.16

Product selling point

On the one hand, heavy hex flange screws are made of sufficient materials and are large in size. They can withstand greater forces and are not easily broken or deformed. On the other hand, the flange is wide and thick, and is not easy to loosen after tightening, and will not fall off even if it encounters strong vibration.
