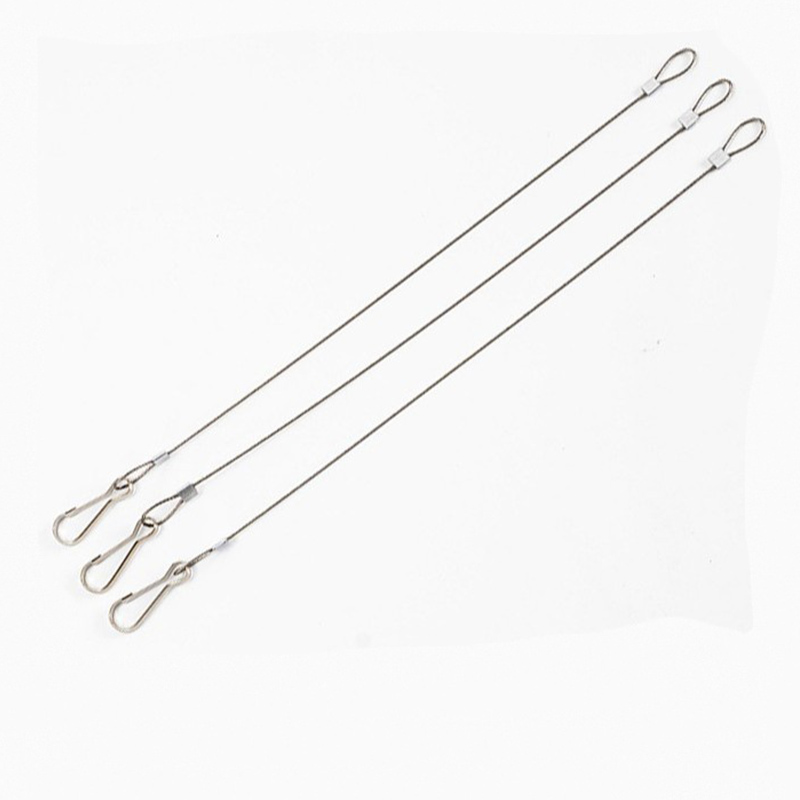

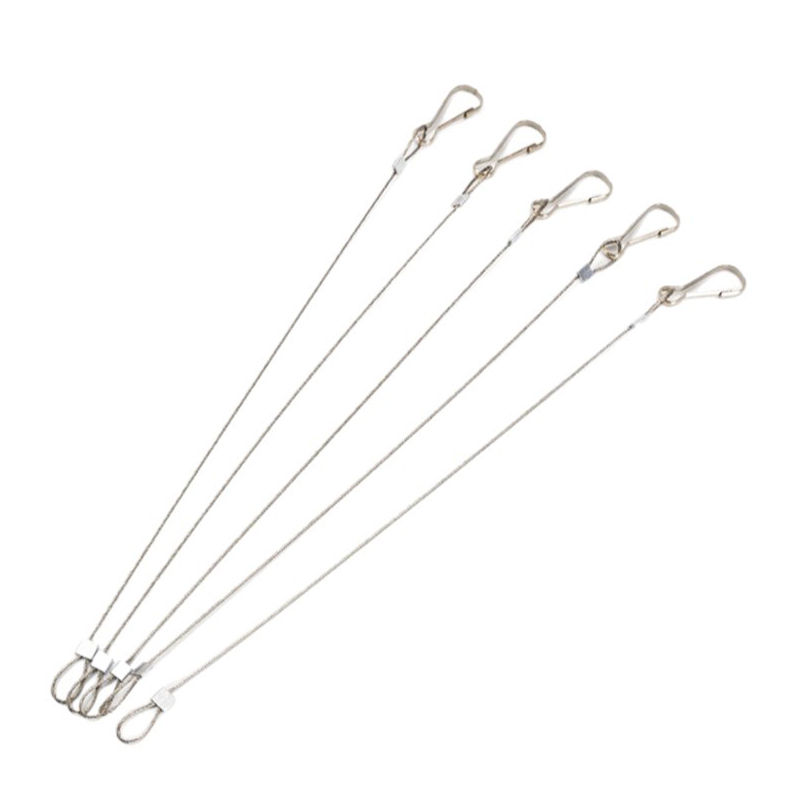

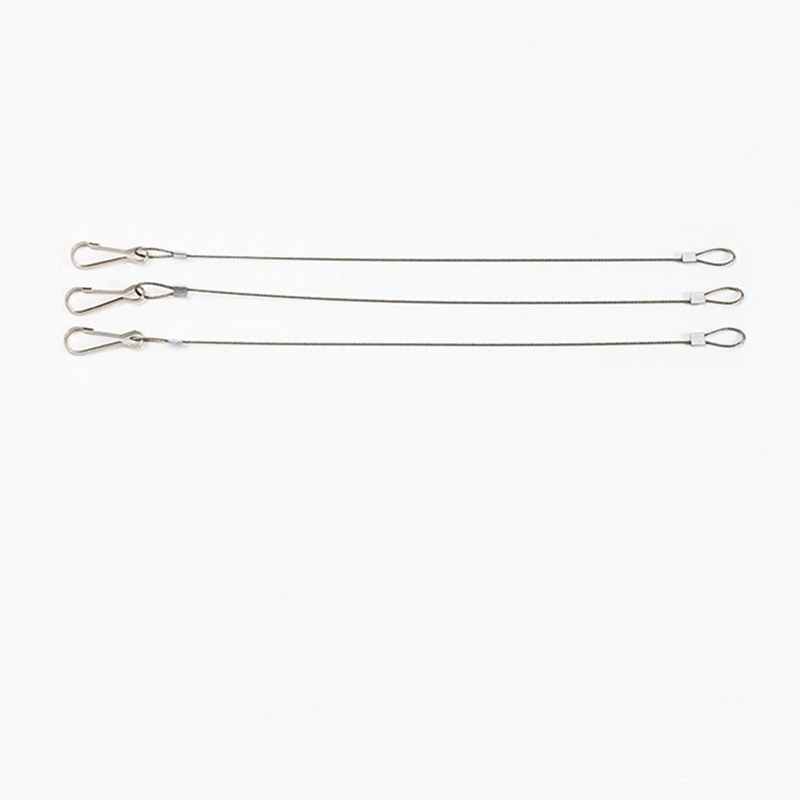

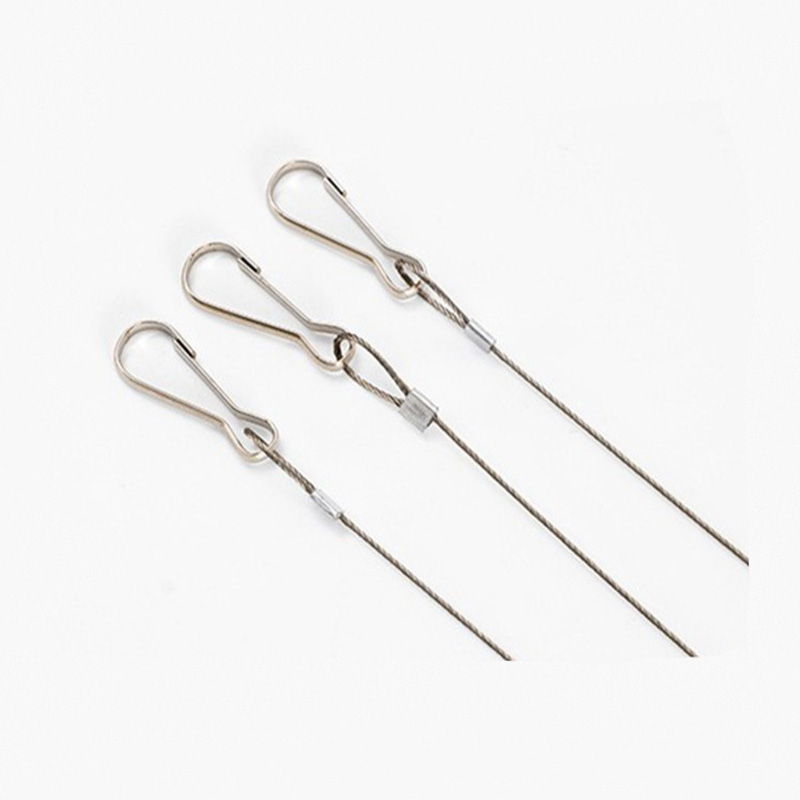

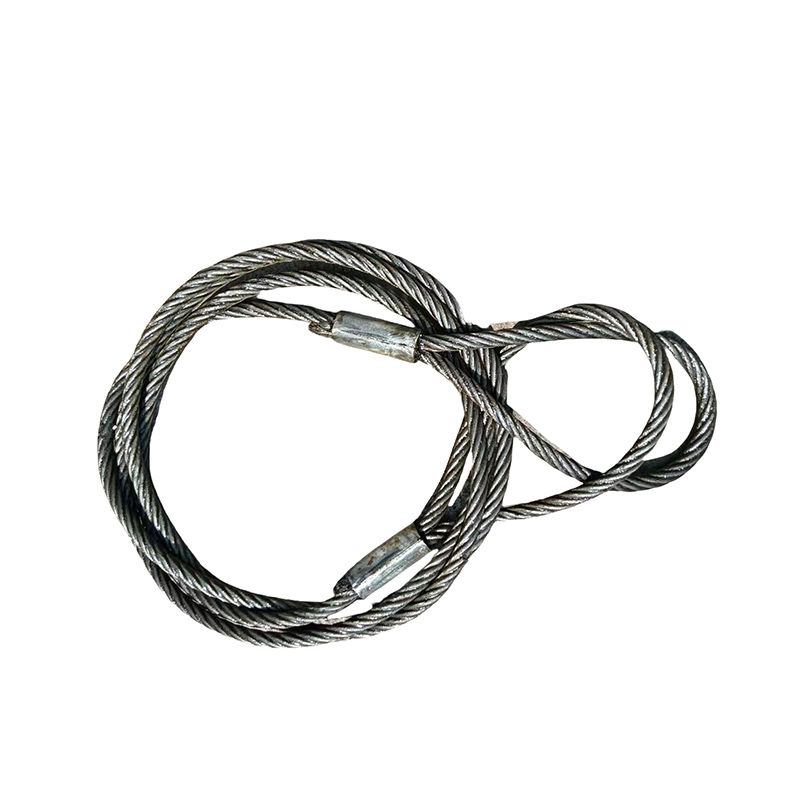

Galvanized Steel Wire Rope

Galvanized Steel Wire Rope, from Xiaoguo® – a professional supplier – benefits from advanced manufacturing facilities that let the company control the entire production process from wire drawing to stranding; in construction and mining, it is relied upon for exceptional durability and ability to handle heavy loads under demanding conditions.

Model:GB/T 20118-2006 EN 12385

Send Inquiry

Product Description

The mining industry extensively uses high-strength Galvanized Steel Wire Rope - such as those used for elevator (skip) lifts and hoist cages for lifting, pulling and digging operations, as well as for supporting the transportation system.

These cables are designed to withstand multiple harsh conditions, including a harsh external environment, extremely high tensile loads, and the frequent repeated bending and flexing that occurs deep underground. Steel cables specifically manufactured for the mining industry typically have a sturdy core and thick steel wires. This helps extend their lifespan, enabling the safe transportation of personnel, equipment, and extracted materials from deep within the mine without having to stop midway.

Product Parameters

Galvanized Steel Wire Rope

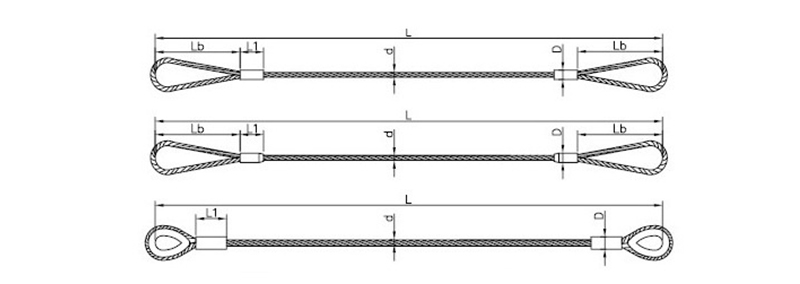

Connection number	Diameter of the steel wire rope	Total cross-sectional area of the steel wire		Length of the free ring gear		Compression joint diameter
Connection number	Diameter of the steel wire rope	min	max	min	max	Compression joint diameter
6	6.2	14.2	15.1	100	150	13
8	7.7	21.9	23.3	100	150	16
10	9.3	31.9	34.0	120	200	20
11	11.0	44.8	47.2	120	200	22
13	12.0	57.2	61.4	150	250	25
14	13.0	72.4	77.0	150	250	28
16	15.0	88.7	94.4	200	300	30
18	175	113.1	120.3	200	350	36
20	19.5	147.7	157.1	250	400	40
22	21.5	170.6	181.2	250	400	44
24	24.0	212.6	226.2	350	500	48
26	26.0	249.5	265.5	400	600	52
28	28.0	289.4	307.9	500	600	56
30	30.0	341.6	370.0	500	700	60
32	32.5	389.9	414.8	600	800	65
34	34.5	446.1	470.0	600	900	68
36	36.5	491.8	523.2	600	900	72
40	39.0	590.6	628.3	700	1000	80
44	43.0	682.5	726.1	700	1000	88
48	47.5	832.9	886.0	800	1200	96
52	52.0	998.2	1061.9	800	1200	104
56	56.0	1157.6	1231.5	1000	1500	112
60	60.5	1351	1437.4	1000	1500	120

Application Scenario

For the aerospace and elevator industries, what you need is a precise, flexible and reliable Galvanized Steel Wire Rope

In aircraft, it is used in control systems - such as flaps and braking systems. In elevators, it is the main component that carries and moves the car. This Galvanized Steel Wire Rope must undergo strict tests to ensure perfect operation even after repeated use (this is the fatigue test).

It cannot fail - therefore, quality and certification are of utmost importance. Thus, every time an elevator is used, passengers and those inside the elevator can ensure safety.

FAQ

Q:What certifications do your Galvanized Steel Wire Rope products hold?

A:Our Galvanized Steel Wire Rope production has international quality certifications—ISO 9001 is one of them.

A lot of our specific products also meet strict industry standards, like API 9A, DIN, and other related classifications. These certifications make sure every Galvanized Steel Wire Rope we make hits tough benchmarks for safety, performance, and accurate dimensions.

This matters a lot for global trade and meeting project requirements.
