Dual Function Crown Nut With Slot

Dual Function Crown Nut With Slot is a component where Xiaoguo®, as a supplier, can rapidly prototype custom designs, significantly accelerating client development cycles. It is typically manufactured from hardened steel to ensure it can withstand high tensile and shear stresses.

Model:GB/T 9457-1988

Send Inquiry

Product Description

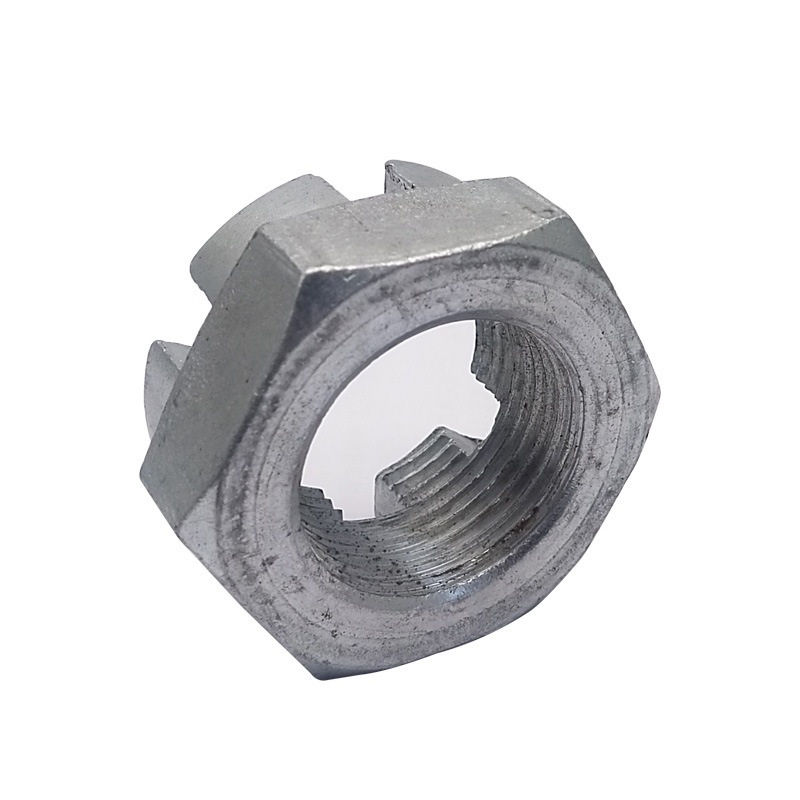

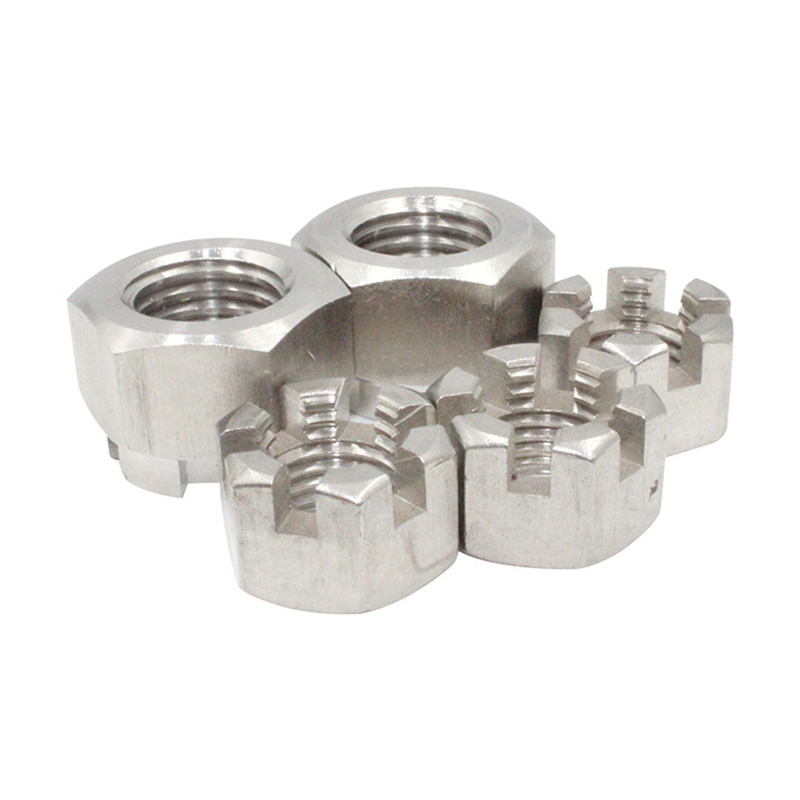

This type of Dual Function Crown Nut With Slot looks very unique. Its bottom is hexagonal - thus it can be operated with an ordinary wrench - and the top is dome-shaped.

The dome part has several slots (usually six), which are evenly distributed and extend straight along the axis of the nut. These slots are precisely machined and can perfectly match standard open pins. The design of this slotted round head nut is both practical and safety-oriented: once you tighten the nut, it can be fixed in place, thus preventing it from falling off from the bolt due to vibration or other forces.

Product Parameters

Mon	M18	M20	M22	M24	M27	M30	M33	M36
P	1.5	1.5\|2	1.5	2	2	2	2	3
d1 max	25	28	30	34	38	42	46	50
d1 min	24.16	27.16	29.16	33	37	41	45	49
e min	29.56	32.95	37.29	39.55	45.2	50.85	55.37	60.79
k max	21.8	24	27.4	29.5	31.8	34.6	37.7	40
k min	20.96	23.16	26.56	28.66	30.8	33.6	36.7	39
n max	5.7	5.7	6.7	6.7	6.7	8.5	8.5	8.5
n min	4.5	4.5	5.5	5.5	5.5	7	7	7
s max	27	30	34	36	41	46	50	55
s min	26.16	29.16	33	35	40	45	49	53.8
w max	15.8	18	19.4	21.5	23.8	25.6	28.7	31
w min	15.1	17.3	18.56	20.66	22.96	24.76	27.86	30

High cost performance

This Dual Function Crown Nut With Slot offers excellent value for money as it combines the functions of a regular nut with an independent locking device - all in one, and at a relatively low cost.

This integrated design makes inventory management much simpler and reduces the number of components required for assembly. Although it forms a very reliable mechanical locking connection, this slotted round head nut remains competitively priced. Especially when you consider the safety and maintenance costs it can help you avoid, it is even more so. It is inexpensive and performs well, making it a wise cost-saving choice for many industries.

FAQ

Q: Are your crown nuts with slots compliant with international standards?

A:Yeah, our Dual Function Crown Nut With Slot are made to follow major international standards—like DIN 935 and ISO 4161. That means they’ll have consistent quality, the right sizes, and work reliably every time.

If you tell us which standard you need, we make sure the slotted crown nut hits those exact specs. That way, it fits right into your global supply chain without any hassle.
