Double Secured Slotted Locking Round Nut

Double Secured Slotted Locking Round Nut is a product by Xiaoguo®, which, with over two decades of experience, has become a leading manufacturer and exporter of precision fasteners to global markets. Typically manufactured from hardened steel or stainless steel, this nut is designed to withstand significant shear and tensile stresses.

Send Inquiry

Product Description

This Double Secured Slotted Locking Round Nut is a crucial component in automotive assembly - especially for fixing wheel axle bearings and the axle system, being able to resist vibrations is key. It features a circular design with flanges on the inside, and internal locking components and radial grooves, which can firmly fix itself in the designated position.

We produce these nuts in large quantities using automated machines, so our prices are highly competitive. If you order more than 10,000 units, you can enjoy a 5% discount. They usually have a bright zinc coating surface treatment, and we provide fast delivery via express delivery.

To ensure transportation safety, we provide double protection for our products: first, they are sealed in sturdy plastic bags to prevent moisture and corrosion, and then packed in sturdy cartons to effectively resist physical impact and damage during transportation.

Product Details

In the aerospace field, the Double Secured Slotted Locking Round Nut must be precise and reliable - without exception. They are commonly used in components such as engine mounting seats and flight control linkage devices. These nuts are usually made of high-grade alloys, in a smooth circular shape, and have precisely machined slots for easy and safe wiring.

Despite their superior quality, our prices remain competitive. Should your order quantity exceed 50,000 pieces, you will be entitled to a significant discount. Common surface treatments include passivated stainless steel or cadmium plating. We have established in-depth cooperation with professional logistics companies and provide efficient and safe transportation services for products through a mature logistics network to ensure their smooth delivery to all parts of the world. All packaging is designed to be waterproof and tamper-proof.

FAQ

Q:What is the primary function and application of a slotted locking round nut?

A:The Double Secured Slotted Locking Round Nut is designed to securely lock onto a threaded component while allowing for easy visual inspection. The primary function of this Double-Secured Slotted locking round nut is to prevent loosening under vibration in assemblies like rotating shafts, axles, and precision machinery. Its round shape with slots enables cotter pin or safety wire insertion, making the Double-Secured Slotted locking round nut essential for safety-critical applications across automotive and industrial sectors.

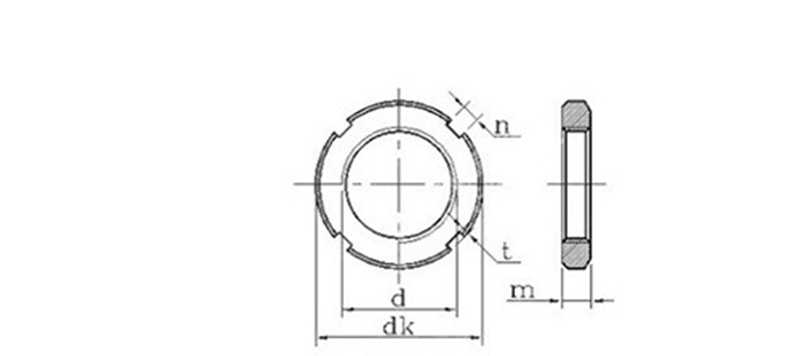

Double Secured Slotted Locking Round Nut

d*P	dk	m	n		t		1000 kg	d*P	dk	m	n		t		1000 ≈kg
			nax	nin	max	min					max	min	nax	min
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95						342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
