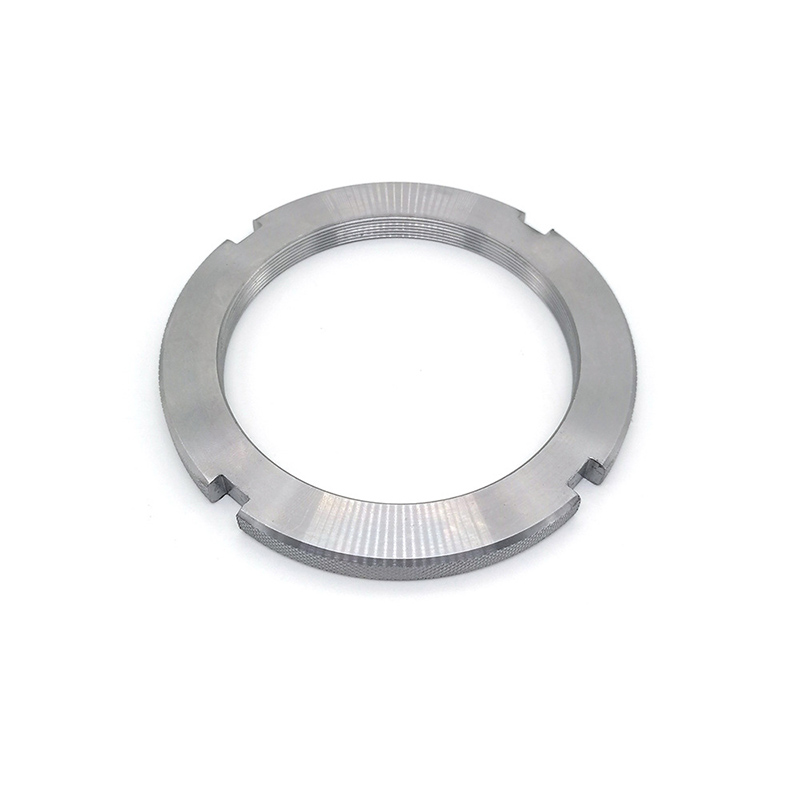

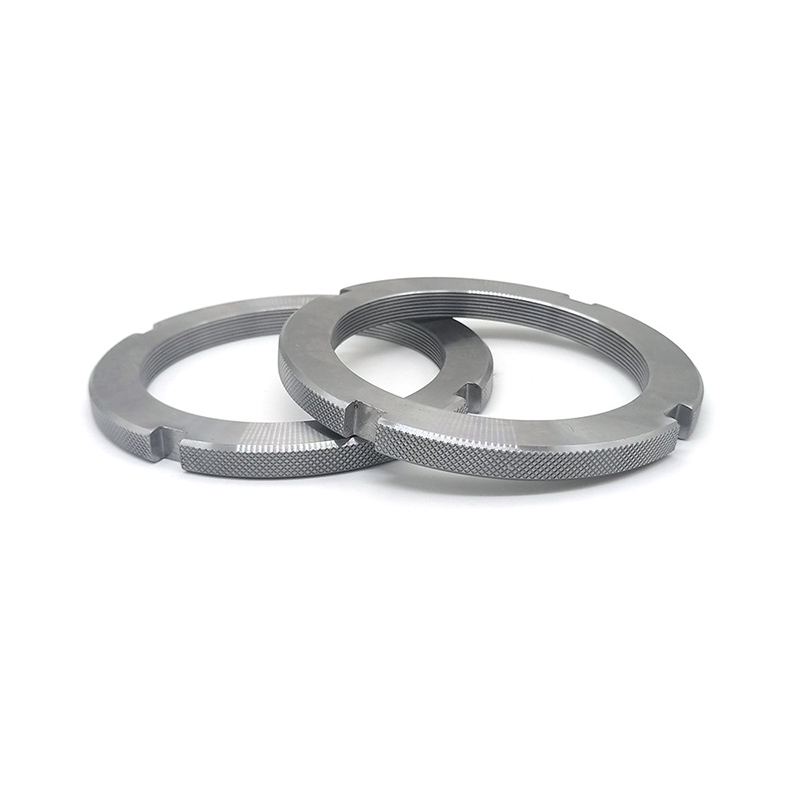

Fully Threaded Slotted Round Nuts

Fully Threaded Slotted Round Nuts are designed with notches on their outer edge for use with pin spanners. Nowadays, many customers are purchasing these products from China XIAOGUO because they are cost-effective and have stable and reliable supply.

Send Inquiry

Product Description

Product usage instructions

Fully Threaded Slotted Round Nuts - they are defined according to standards such as DIN 546 and are mainly used to achieve a secure fastening connection and can withstand vibrations. The main feature of these nuts lies in the slots cut at one end of the nut. Here is how to use them: First, screw the nut onto a pre-drilled bolt or stud and tighten it to the desired position. After tightening, align the slot with the hole on the bolt shaft. Finally, insert an open pin (locking washer) or safety line through the aligned slot and bolt hole, and then bend the ends of the pin to ensure a secure fit. Thus, in the presence of vibrations, the nut will not loosen.

Product Packaging

Based on our investigation results, we offer a range of Fully Threaded Slotted Round Nuts, which are highly suitable for industrial applications. Packaging them in bags or boxes is a common and practical method. Each bag usually contains a certain number of nuts, such as 100 per bag. This bagged form is convenient for transportation, inventory counting, and distribution on the workshop or assembly line. The packaging is usually transparent or has labels, allowing you to quickly identify the type and size of the nuts. If you are a manufacturer or a large purchaser, we can also provide larger quantities of carton packaging or customize the packaging according to your requirements. This helps to reduce costs and make your project supply chain run more smoothly.

Q&A Session

What materials are your Fully Threaded Slotted Round Nuts typically made from?

A: We usually make our Nuts from carbon steel for general use. We also have stainless steel options (grades 304 and 316) if you need something that resists rust, and brass ones for non-magnetic applications. Just pick the material for the Nuts based on what your environment and mechanical needs are specifically.

Fully Threaded Slotted Round Nuts

unit：mm
d*P	dk	m	n		t		Quality per 1000 steel products≈kz	d*P	dk	m	n		t		Quality per 1000 steel products≈kg
d*P	dk	m	max	min	max	min	Quality per 1000 steel products≈kz	d*P	dk	m	max	min	max	min	Quality per 1000 steel products≈kg
M10*1	22	8	4.3	4	2.6	2	16.82	M64*2	95	12	8.36	8	4.25	3.5	351.9
M12*1.25	25						21.58	M65*2	95		8.36	8	4.25	3.5	342.4
M14*1.5	28						26.82	M68*2	100		10.36	10	4.75	4	380.2
M16*1.5	30		5.3	5	3.1	2.5	28.44	M72*2	105	15					518
M18*1.5	32						31.19	M75*2	105						477.5
M20*1.5	35						37.31	M76*2	110						562.4
M22*1.5	38	10					54.91	M80*2	115						608.4
M24*1.5	42						68.88	M85*2	120						640.6
M25*1.5	42						68.88	M90*2	125	18	12.43	12	5.75	5	796.1
M27*1.5	45						75.49	M95*2	130						834.7
M30*1.5	48						82.11	M100*2	135						873.3
M33*1.5	52		6.3	6	3.6	3	93.32	M105*2	140						895
M35*1.5	52						84.99	M110*2	150		14.43	14	6.75	6	1076
M36*1.5	55						100.3	M115*2	155	22					1369
M39*1.5	58						107.3	M120*2	160						1423
M40*1.5	58						109.5	M125*2	165						1477
M42*1.5	62						121.8	M130*2	170						1531
M45*1.5	68						153.6	M140*2	180	26					1937
M48*1.5	72	12	8.36	8	4.25	3.5	201.2	M150*2	200		16.43	16	7.9	7	2651
M50*1.5	72						186.8	M160*3	210						2810
M52*1.5	78						238	M170*3	220						2970
M55*2	78						214.4	M180*3	230	30					3610
M56*2	85						290.1	M190*3	240						3794
M60*2	90						320.3	M200*3	250						3978
