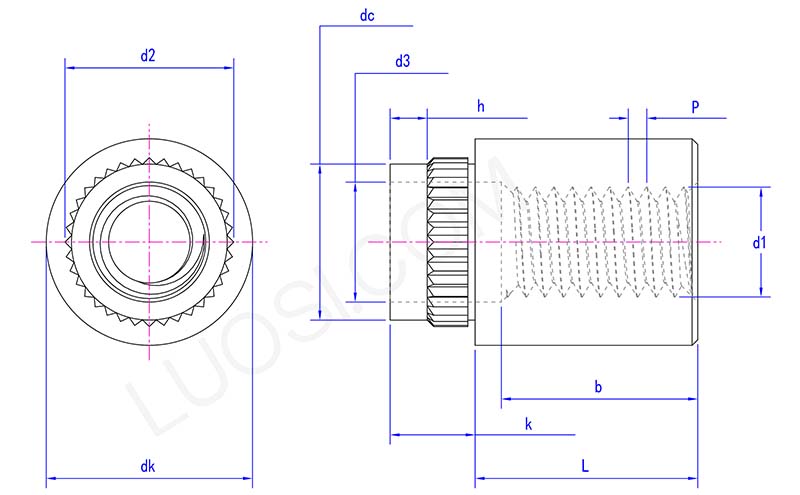

Broaching Standoffs

When installed correctly, these broaching standoffs form a gas-tight, cold-welded connection in the PCB laminate. They have really solid mechanical reliability.

This connection hardly ever loosens from vibration or thermal cycling.

Good manufacturers make sure these studs meet strict quality standards,like ISO 9001 or IATF 16949. They also test them thoroughly: checking pull-out strength, how well they resist torque, and how well the plating sticks. All to make sure they perform consistently.

Advantage

Picking the right broaching standoffs gives good value. It’s a strong, permanent, reliable way to mount things,this makes products last longer and cuts down on problems in the field.

Installing them quickly and automatically lowers assembly costs. Plus, they resist vibration, so products hold up longer in tough environments.

All in all, it’s a key part for secure, efficient mechanical setup in advanced electronic assemblies.

Electrical grounding or isolation

How these broaching standoff work electrically depends on what they’re made of and how they’re designed.

Aluminum studs conduct electricity pretty well. They’re often used for grounding when they touch a copper plane on the board.

Steel studs don’t conduct electricity as well, but they can be plated to help.

If you need to keep electricity separate, non-conductive shoulder washers or certain stud designs,like flanged ones with insulation,stop the stud from touching the copper around it on the PCB.

When picking one, make sure to say if you need an electrical connection or if you need to keep electricity separate.
