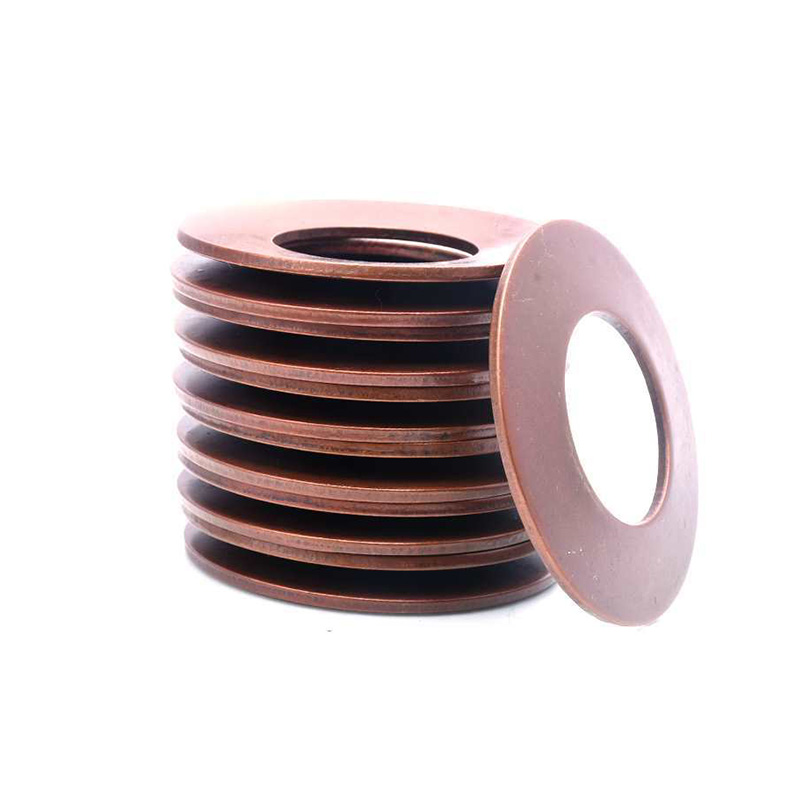

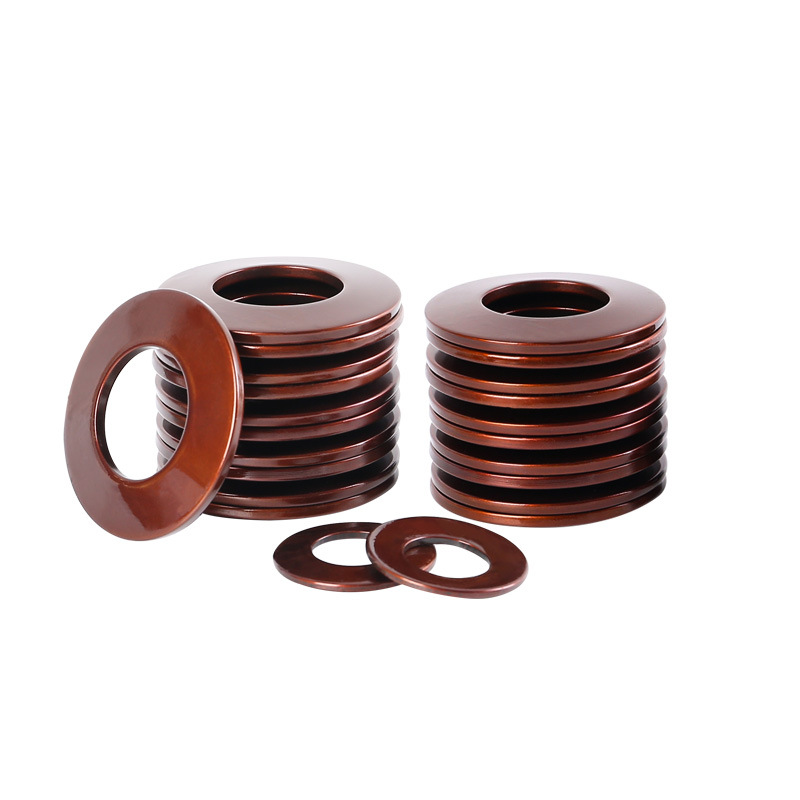

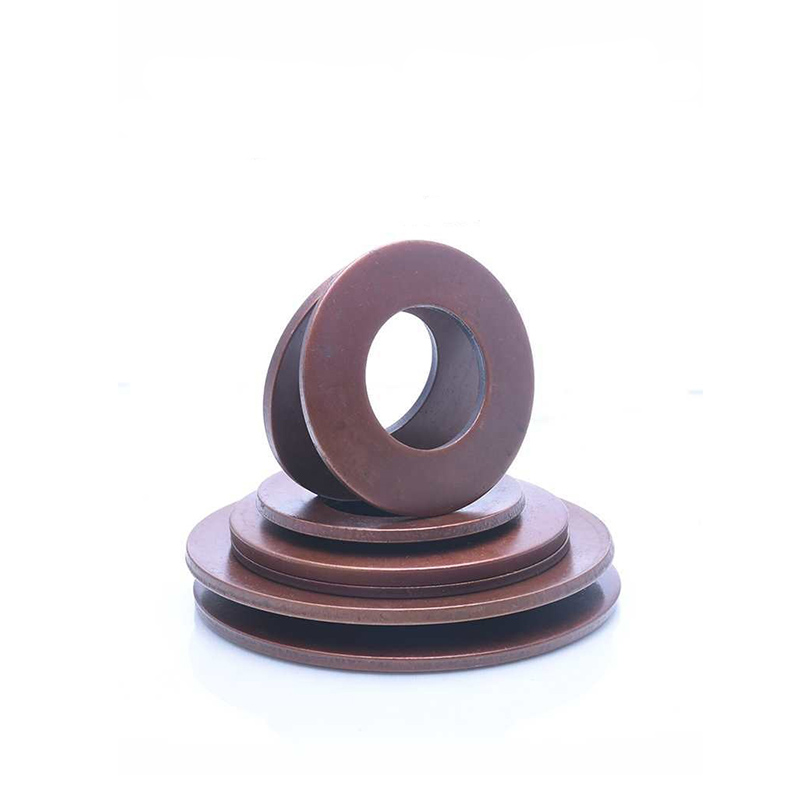

Vibration Dampening Disc Shaped Spring

Vibration Dampening Disc Shaped Spring is an ideal solution for heavy equipment manufacturers worldwide—these manufacturers rely on Xiaoguo® as a trusted supplier for critical bolted joint applications, especially for scenarios with limited space and high force requirements.

Model:75LB

Send Inquiry

Product Description

The Vibration Dampening Disc Shaped Spring washers are extremely important in the components of car transmissions and clutches - even with limited space, they can provide strong force. Their conical design enables them to precisely bear the load and produce the appropriate deformation.

We keep our prices competitive because we produce these products in large quantities. If you order more than 1,000 units, you can enjoy a 5% discount. Usually, these springs are made of carbon steel and have phosphating treatment or oil black treatment on the surface. We deliver the goods via courier companies so that you can receive the goods as soon as possible.

In terms of packaging, we use sturdy boxes with partitions - this can prevent them from being damaged when stacked. Each batch of products will also undergo strict load tests to ensure compliance with international quality standards, such as ISO 9001 standards.

Product Details

In heavy industrial equipment such as presses and valves, Vibration Dampening Disc Shaped Spring are indispensable - they can exert strong preload force and absorb impact force. The design of these components adopts specific ratios of outer diameter to inner diameter to enable them to perform at their best.

We keep the production cost low, so the price is also very reasonable. We offer free shipping on orders of 5,000 pieces or more. The standard surface treatment is galvanizing, which can prevent them from rusting. Regarding shipping, we have two options: air shipping if you want speed, and sea shipping if you want to save money. You can choose according to your needs, and we can deliver the goods to the world in the end.

We use high-strength packaging materials and built-in high-efficiency desiccant to effectively block moisture and ensure that the product remains dry during transportation and storage. In addition, each spring is inspected 100% before shipment.

Commonly used materials

Our standard springs are mainly made of high carbon steel (SAE 1070) and stainless steel (AISI 301/316), and are usually made of these two mainstream materials. For specialized needs, we offer materials like Inconel or beryllium copper. The material ensures the Vibration Dampening Disc Shaped Spring performs reliably under various loads and environmental conditions.

Vibration Dampening Disc Shaped Spring

Disc-shaped spring standard version

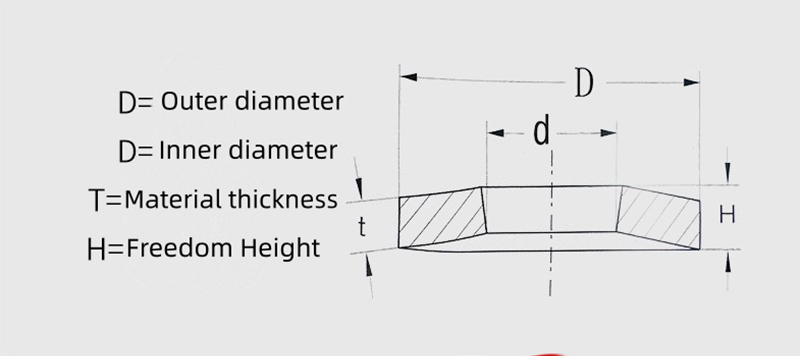

	Geometric parameters				Mechanical properties				Weight
	Geometric parameters				f=0.50h f=0.75h				Weight
	D	d	t	h/t	F	P	F	P	kg/100
C	8.0	4.2	0.20	0.45	0.125	33	0.188	39	0.06
B	8.0	4.2	0.30	0.55	0.125	89	0.188	118	0.09
A	8.0	4.2	0.40	0.65	0.100	147	0.150	210	0.11
C	10.0	5.2	0.25	0.55	0.150	48	0.225	58	0.11
B	10.0	5.2	0.40	0.70	0.150	155	0.225	209	0.18
A	10.0	5.2	0.50	0.75	0.125	228	0.188	325	0.22
D	12.0	6.2	0.60	0.95	0.175	394	0.262	552	0.39
C	12.5	6.2	0.35	0.80	0.225	130	0.338	151	0.25
B	12.5	6.2	0.50	0.85	0.175	215	0.262	293	0.36
A	12.5	6.2	0.70	1.00	0.150	457	0.225	660	0.51
C	14.0	7.2	0.35	0.80	0.225	106	0.338	123	0.31
B	14.0	7.2	0.50	0.90	0.200	210	0.300	279	0.44
A	14.0	7.2	0.80	1.10	0.150	547	0.225	797	0.71
C	16.0	8.2	0.40	0.90	0.250	131	0.375	154	0.47
B	16.0	8.2	0.60	1.05	0.225	304	0.388	410	0.70
A	16.0	8.2	0.90	1.25	0.175	697	0.262	1013	1.05
C	18.0	9.2	0.45	1.05	0.300	185	0.450	214	0.68
B	18.0	9.2	0.70	1.20	0.250	417	0.375	566	1.03
A	18.0	9.2	1.00	1.40	0.200	865	0.300	1254	1.48
