Sturdy 6 Lobe Pan Torx Head Self Tapping Screws

Xiaoguo® manufactures sturdy 6 Lobe Pan Torx Head Self Tapping Screws – Torx drive prevents cam‑out, pan head won’t damage soft materials. To extend life: drill a proper pilot hole and avoid over‑tightening. Buy direct from factory – ask us.

Send Inquiry

Product Description

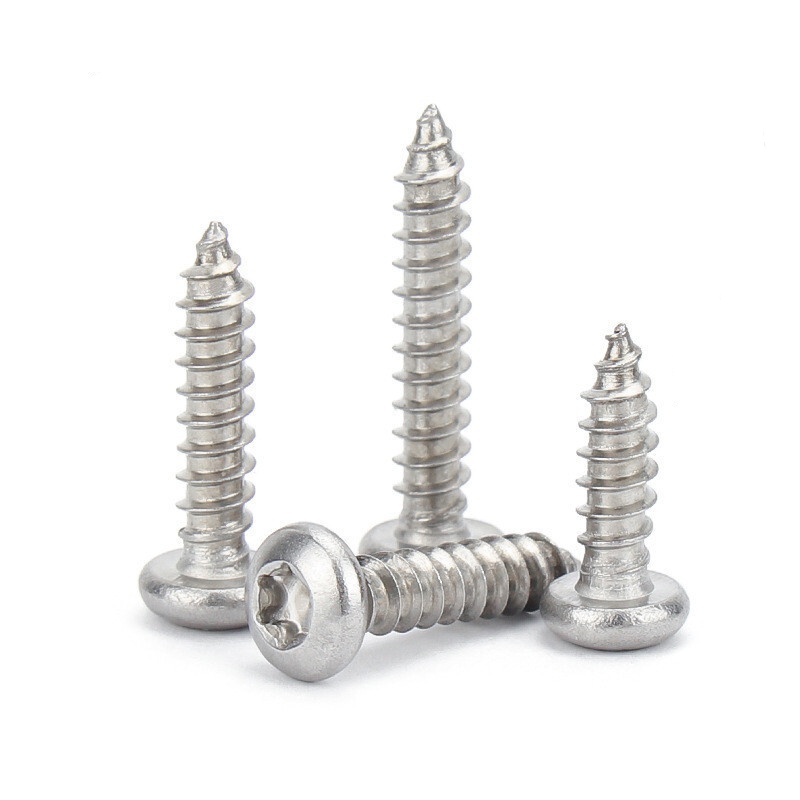

Buy the xiaoguo® premium sturdy 6 Lobe Pan Torx Head Self Tapping Screws, which is a self-tapping screw with a small circular head and a six-lobed flower-shaped groove on the top, engineered to deliver maximum torque and prevent slippage during high-speed installation. The greatest advantage of this six-lobed groove is that when tightened with a matching wrench, the screwdriver is less likely to slip out, and even when a lot of force is applied, the groove will not be damaged.

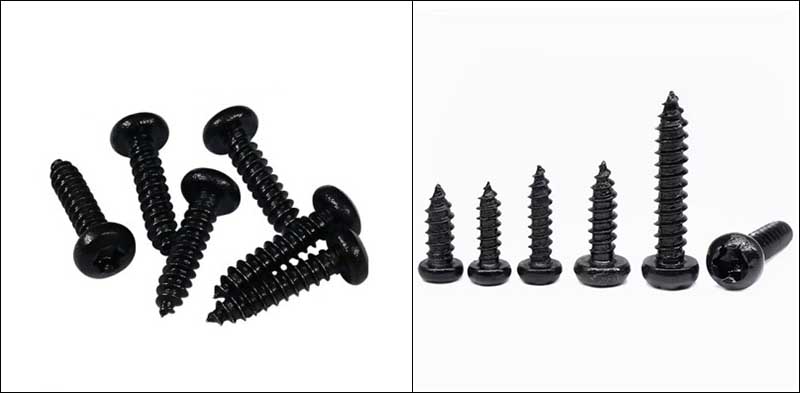

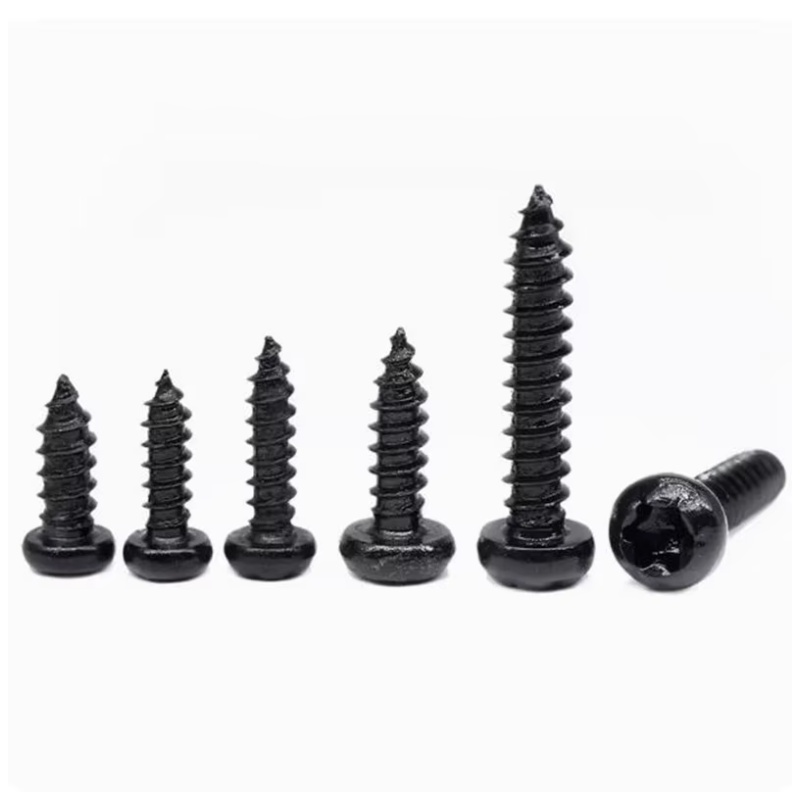

The thread of the sturdy 6 Lobe Pan Torx Head Self Tapping Screws is coarse-thread self-tapping thread. The tail is pointed and can easily pass through the pre-drilled holes. It can be directly tightened on iron sheets, plastics or woods, and the thread can be formed by itself. After the head is tightened, it is exposed on the surface, and it is firmly pressed, making it suitable for rapid assembly lines, car interiors, electrical enclosures, mechanical equipment and other places. Common materials include carbon steel galvanized for indoor use and stainless steel for outdoor humid environments to prevent rust.

Sturdy 6 Lobe Pan Torx Head Self Tapping Screws

Suggestions for extending the usage time

The sturdy 6 Lobe Pan Torx Head Self Tapping Screws need to be installed into the equipment, and the process of removing and replacing them is quite troublesome. So, if you want to extend the usage time, we hope you will follow our suggestions.

Choose the right material

Understanding the material of the product and choosing the appropriate material along with the suitable surface treatment is the first step to extend its usage time in the early stage.

The diameter of the bottom hole should be accurate.

If the bottom hole is too large or too small, it will have a negative impact on the sturdy 6 Lobe Pan Torx Head Self Tapping Screws, thereby reducing their service life. The most suitable diameter of the bottom hole is approximately 70% - 80% of the screw's thread diameter.

Washer assistance

Adding a flat washer beneath the head of the screw will distribute the pressure, protecting both the workpiece and the screw at the same time.

Clear the debris from the bottom hole.

After drilling, use an air gun or vacuum cleaner to blow away the dust inside the hole.

Check the three key points

Is it loose?

How is the working condition of the6 lobes?

Is it rusted?

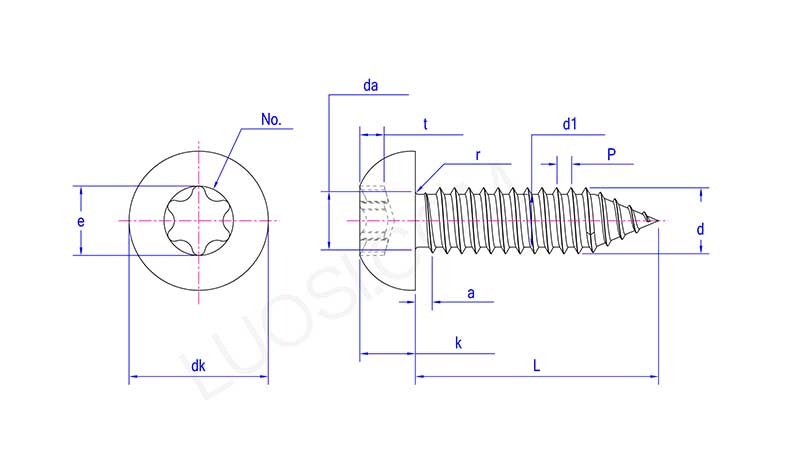

Sturdy 6 Lobe Pan Torx Head Self Tapping Screws

Mon	ST2.9	ST3.5	ST4.2	ST4.8	ST5.5	ST6.3
P	1.1	1.3	1.4	1.6	1.8	1.8
a	1.1	1.3	1.4	1.6	1.8	1.8
da max	3.5	4.1	4.9	5.6	6.3	7.3
dk max	5.6	7	8	9.5	11	12
dk min	5.3	6.64	7.64	9.14	10.57	11.57
k max	2.4	2.6	3.1	3.7	4	4.6
k min	2.15	2.35	2.8	3.4	3.7	4.3
r max	0.1	0.1	0.2	0.2	0.25	0.25
No.	T10	T15	T20	T25	T25	T30
e	2.8	3.35	3.95	4.5	4.5	5.6
t max	1.27	1.4	1.8	2.03	2.03	2.42
t min	1.01	1.14	1.42	1.65	1.65	2.02
d max	2.9	3.53	4.22	4.8	5.46	6.25
d min	2.76	3.35	4.04	4.62	5.28	6.03
d1 max	2.18	2.64	3.1	3.58	4.17	4.88
d1 min	2.08	2.51	2.95	3.43	3.99	4.7

Avoid making incorrect operations

Do not use the wrong tool: The matching tool must be used. Using a tool that is too large or too small will damage the slot.

Do not use an impact wrench: Although the 6-lobe slot can withstand a relatively high torque, it cannot be subjected to unrestricted impact. Once the head is firmly pressed against the surface of the workpiece, stop the operation.

Do not apply lubricant: Self-tapping screws do not require lubrication. Because the oil will seep into the threads and the bottom holes, which will reduce the friction and the holding power of the screws.

Do not disassemble the same hole more than 3 times: each time you disassemble, the threads in the bottom hole will be worn out. After more than 3 times, for the important load-bearing parts, it is recommended to replace the screws after each disassembly.
