Reduced Shank T Bolt With Hole

Reduced shank T bolt with hole are lighter and easier to operate. They provide flexibility for connecting wires, chains or other components. The bolts of Xiaoguo® factory comply with the execution standard of CNS 4566-1981. Our products have undergone salt spray testing and can meet your needs.

Model:CNS 4566-1981

Send Inquiry

Product Description

The head of the reduced shank T bolt with hole are similar to a rhombus and can be stuck in the T-slot to be fixed and not rotate. The middle part of its screw has become thinner, that is, the "shrunken rod", and a hole has also been drilled on the bottom of the screw. The interior is hollow.

Features:

The reduced shank T-bolt is installed on the solar power plant tracker. If you need to adjust the solar panel array every day, you can use them because they can withstand all kinds of weather. The slender pole body can resist wind shear. The holes are locked at an Angle by cotter pins. In desert sandstorms, it can prevent bolts from loosening.

The reduced shank T-bolt with hole is installed in the concert speaker device. Concerts usually require the hanging of heavy subwoofers, and using them can enhance safety. The lightweight bolt handle makes hoisting easier. The bolt holes can be connected to steel safety ropes. The speaker can be double-fixed 60 feet (about 18 meters) above the crowd.

Reduced shank T-bolts are used in the suspension system of Formula One racing cars. Racing cars usually need to change the fork arms in the middle of the race. The bolt handle can reduce the weight. The hole wire can be equipped with quick-release pins. According to the rules of the closed site, staff can replace parts within 5 seconds.

The reduced shank T bolt with hole design is the most prominent feature. When manufacturing some small mechanical equipment, the internal space of the small equipment is compact, and ordinary bolts are too thick to fit in. However, their retraction rod parts can easily pass through the narrow installation holes without affecting the connection strength, allowing the various components of the equipment to be assembled compactly together and ensuring the normal operation of the equipment.

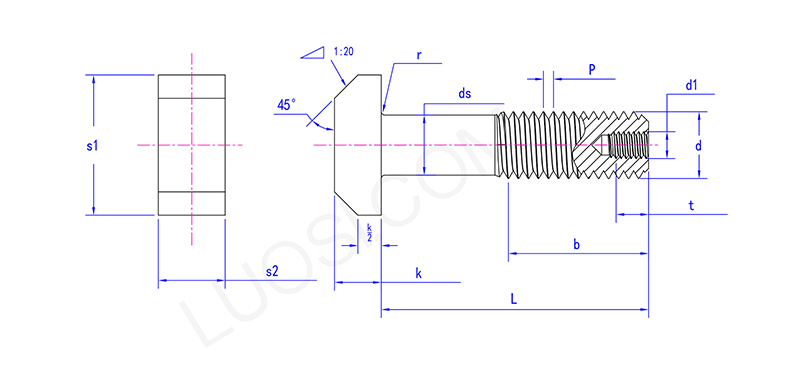

Parameters:

Mon	M42	M48	M56	M64	M72	M80	M90	M100
P	4.5	5	5.5	6	6	6	6	6
d1	M12	M12	M16	M16	M16	M20	M20	M20
t	22	22	26	26	26	33	33	33
k	26	30	35	40	45	50	55	62
s2	42	48	56	64	72	80	90	100
s1	80	88	102	115	128	140	155	170
r	2	2	3	3	4	4	4	5
ds max	34	38	45	50	55	65	70	80
ds min	33	37	44	49	53.8	63.8	66.8	78.8
