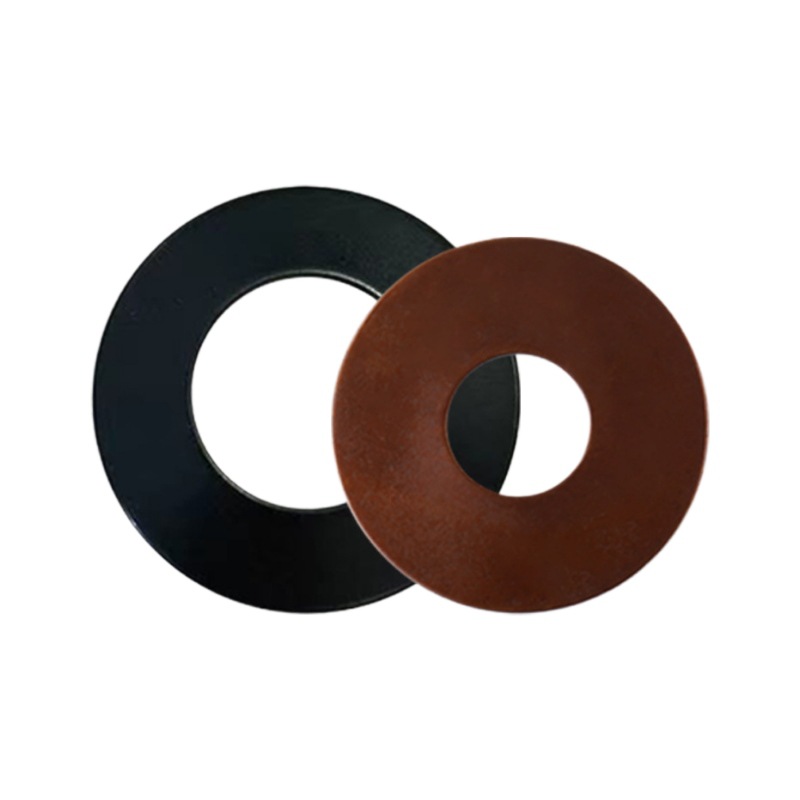

Predictably Performative Disc Shaped Spring

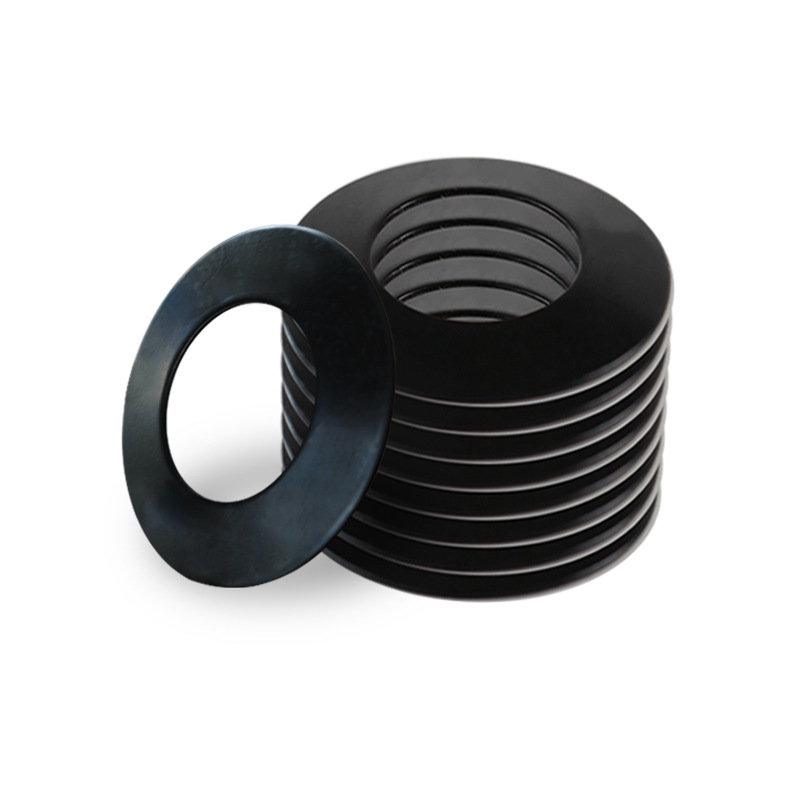

Predictably Performative Disc Shaped Spring is a product where Xiaoguo®, a manufacturer, offers custom solutions tailored to specific pressure and height requirements. Stacking multiple units of this spring in series or parallel modifies their overall performance.

Model:75LB

Send Inquiry

Product Description

For high-pressure valves and pipe flanges in different industries, Predictably Performative Disc Shaped Spring gaskets are used to maintain the tightness of the seal. Their conical structure flattens under force, thereby compensating for any looseness at the bolted connection points.

Thanks to our optimized production processes, we can always offer you highly competitive prices. For orders of 10,000 pieces or more, you will also receive a special discount of 12%. These gaskets have different coatings, and we ship them quickly through our global express network.

We place the springs in vacuum-sealed bags, which are then placed in corrugated cardboard boxes - this prevents them from rusting. Our quality management system has obtained ISO 9001 certification, so you can trust its stable performance.

Product Details

The Predictably Performative Disc Shaped Spring components play a crucial role in the precision molds and dies of the manufacturing industry - they ensure that the clamping force remains stable. These springs are small in size but can generate powerful force.

Our prices are competitive, which is very beneficial for mold manufacturing factories. If you have repeat orders, we will also offer loyalty discounts. They usually have a natural stainless steel surface treatment.

We ship from the local warehouse, which not only can deliver to you faster, but also help save some transportation costs. The packaging is small but sturdy, so the springs will not be lost or damaged. Before shipment, each spring will be checked for its flatness and load capacity.

Predictably Performative Disc Shaped Spring

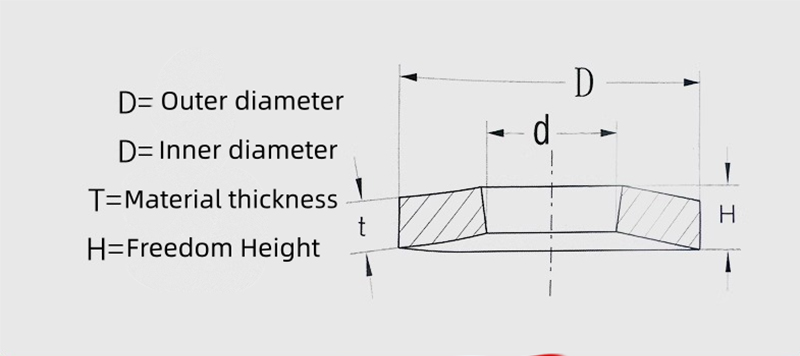

Disc-shaped spring standard version
	Geometric parameters				Mechanical properties				Weight
	Geometric parameters				f=0.50h f=0.75h				Weight
	D	d	t	h/t	F	P	F	P	kg/100
C	8.0	4.2	0.20	0.45	0.125	33	0.188	39	0.06
B	8.0	4.2	0.30	0.55	0.125	89	0.188	118	0.09
A	8.0	4.2	0.40	0.65	0.100	147	0.150	210	0.11
C	10.0	5.2	0.25	0.55	0.150	48	0.225	58	0.11
B	10.0	5.2	0.40	0.70	0.150	155	0.225	209	0.18
A	10.0	5.2	0.50	0.75	0.125	228	0.188	325	0.22
D	12.0	6.2	0.60	0.95	0.175	394	0.262	552	0.39
C	12.5	6.2	0.35	0.80	0.225	130	0.338	151	0.25
B	12.5	6.2	0.50	0.85	0.175	215	0.262	293	0.36
A	12.5	6.2	0.70	1.00	0.150	457	0.225	660	0.51
C	14.0	7.2	0.35	0.80	0.225	106	0.338	123	0.31
B	14.0	7.2	0.50	0.90	0.200	210	0.300	279	0.44
A	14.0	7.2	0.80	1.10	0.150	547	0.225	797	0.71
C	16.0	8.2	0.40	0.90	0.250	131	0.375	154	0.47
B	16.0	8.2	0.60	1.05	0.225	304	0.388	410	0.70
A	16.0	8.2	0.90	1.25	0.175	697	0.262	1013	1.05
C	18.0	9.2	0.45	1.05	0.300	185	0.450	214	0.68
B	18.0	9.2	0.70	1.20	0.250	417	0.375	566	1.03
A	18.0	9.2	1.00	1.40	0.200	865	0.300	1254	1.48

If you need any other data, pleasecontact us. We will provide you with moredetailed parameters.

FAQ

Q:What is the expected service life of your spring?

A:The service life of a Predictably Performative Disc Shaped Spring depends on the application's dynamic load and operating conditions. Under proper static or moderately dynamic loads, our spring is designed for long-term, maintenance-free operation, often exceeding millions of cycles.
