      Precision Fit Pin
      • Precision Fit PinPrecision Fit Pin
      • Precision Fit PinPrecision Fit Pin

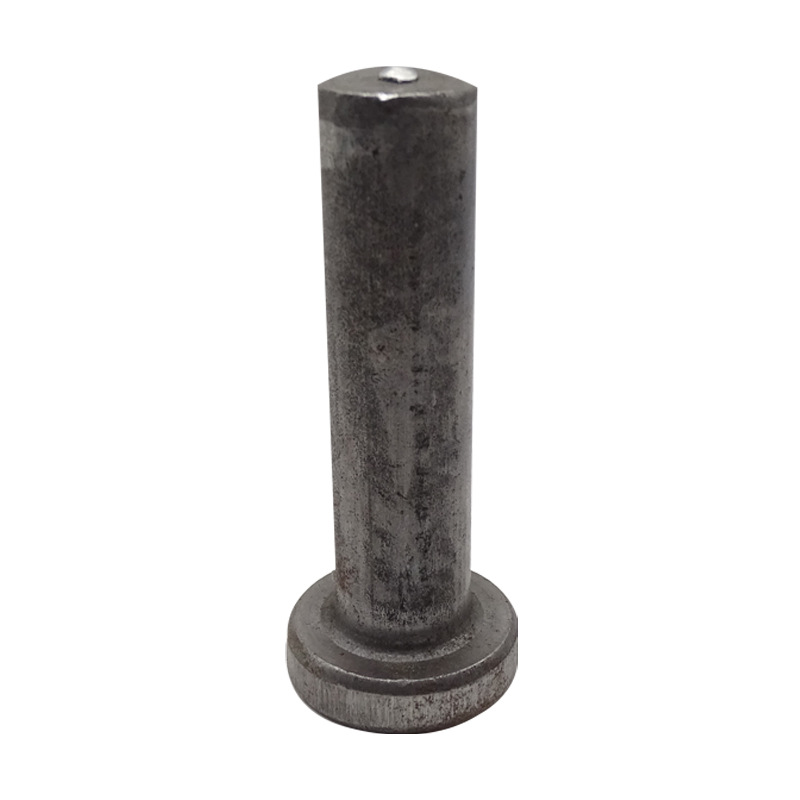

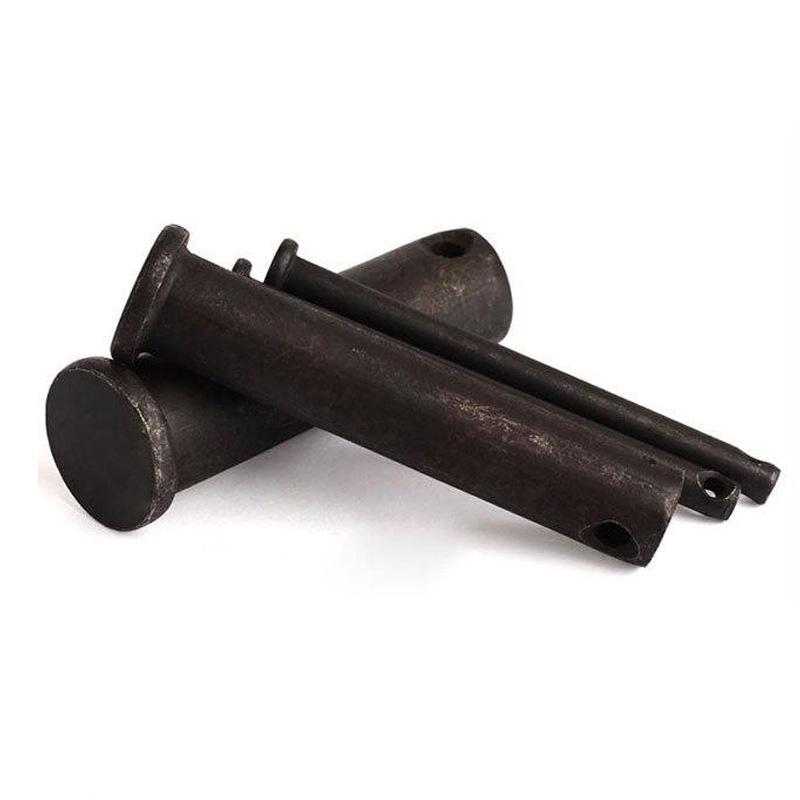

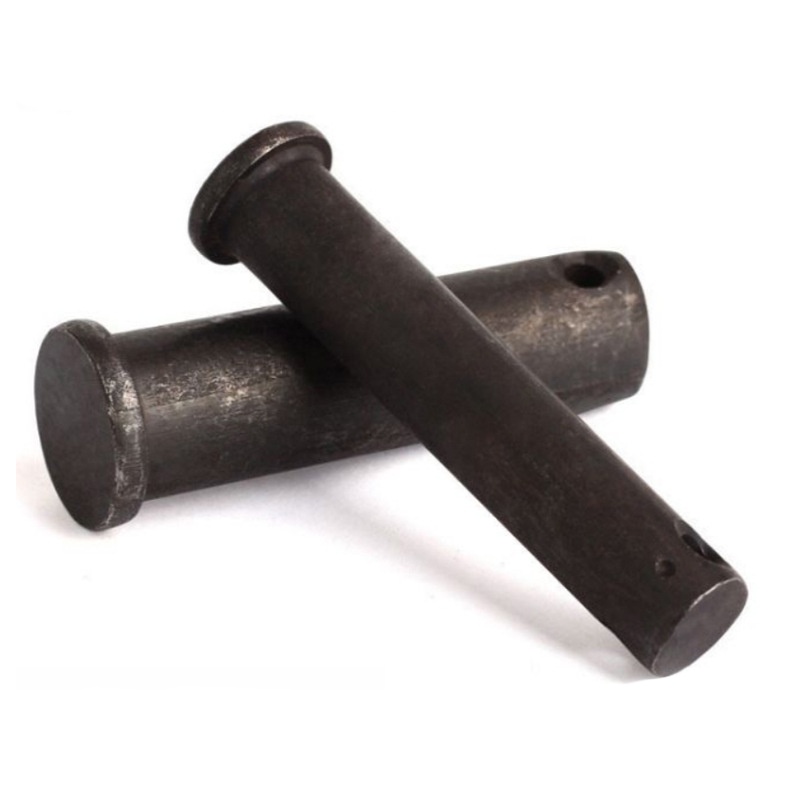

      Precision Fit Pin

      The Precision Fit Pin produced by XiaoGuo Company is made of high-hardness material, which has excellent deformation resistance and can meet the strict assembly requirements This provides a variety of precision locating pins for your choice.

      Send Inquiry

      Product Description

      Select the appropriate precision fit pin from the sales, open or locking pin as needed.

      For a standard push pin: Just hold the head, line up the pointy end with whatever you're poking into (like a corkboard or some fabric), and push in until it feels snug. Don't push too hard, or you might bend the pin or mess up your surface.

      If you're using a cotter pin: Slide it through the holes in a bolt or shaft. Then, bend the two prongs apart to keep it from falling out.

      For a locking pin: Push it through the matching holes until you hear or feel the lock (usually a spring) click into place. To take it out, just release that lock and pull.

      Our Precision Fit Pin packaging is designed to protect the product and make things clear.It is securely packed in a blister pack or small cardboard box, so it arrives without damage. The clear plastic front lets you see the Pin’s design and size.The packaging is compact, so it’s easy to store. It’s also clearly labeled, making the Pin simple to find .On the back, there’s a simple card that lists key features, specifications, and basic usage instructions. Our  Pin packaging is designed to protect the product and make things clear.

      Question: What’s the lead time for a custom  Pin order once it’s approved?

      Answer: Our standard lead time for a custom Precision Fit Pin order is 15-20 working days. That starts after we confirm the final artwork and your deposit. This timeline makes sure your custom Pin gets the necessary production and shipping steps done properly.


      Precision Fit Pin

      Specification d dk k d1 Lh
      φ4 4 6 1.5 1.6 3
      φ5 5 8 2 2 3
      ①6 6 10 2 2 3
      ①8 8 12 2.5 3.2 4
      φ10 10 14 2.5 3.2 4
      ①12 12 16 3 4 5
      φ14 14 18 3 4 5
      φ16 16 20 3.5 4 5
      ①18 18 22 3.5 5 5
      φ20 20 25 4 5 6
      φ25 25 32 5 6.3 6
      φ30 30 38 5 6.3 8
