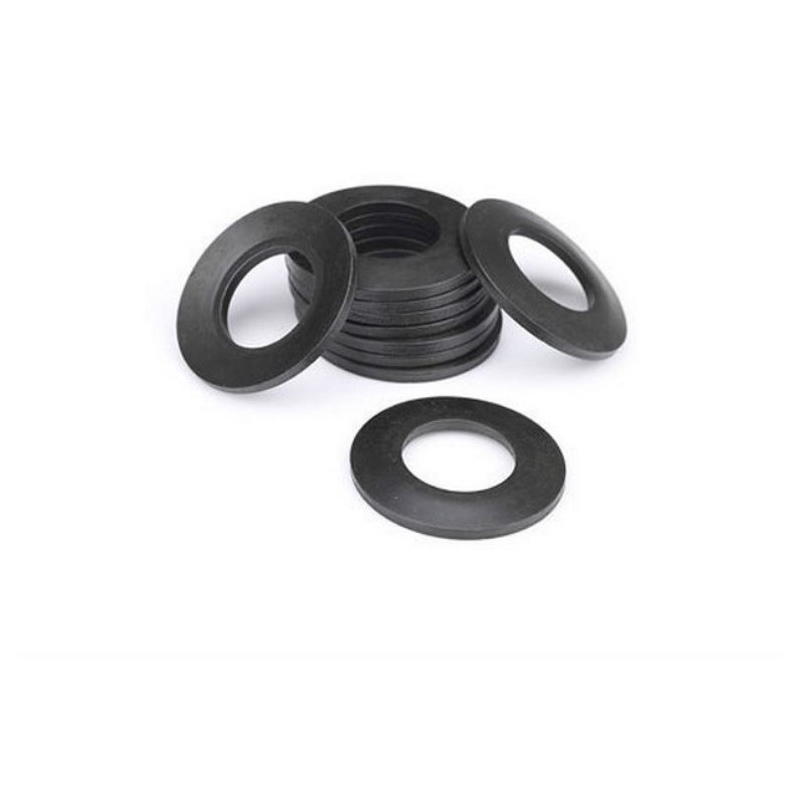

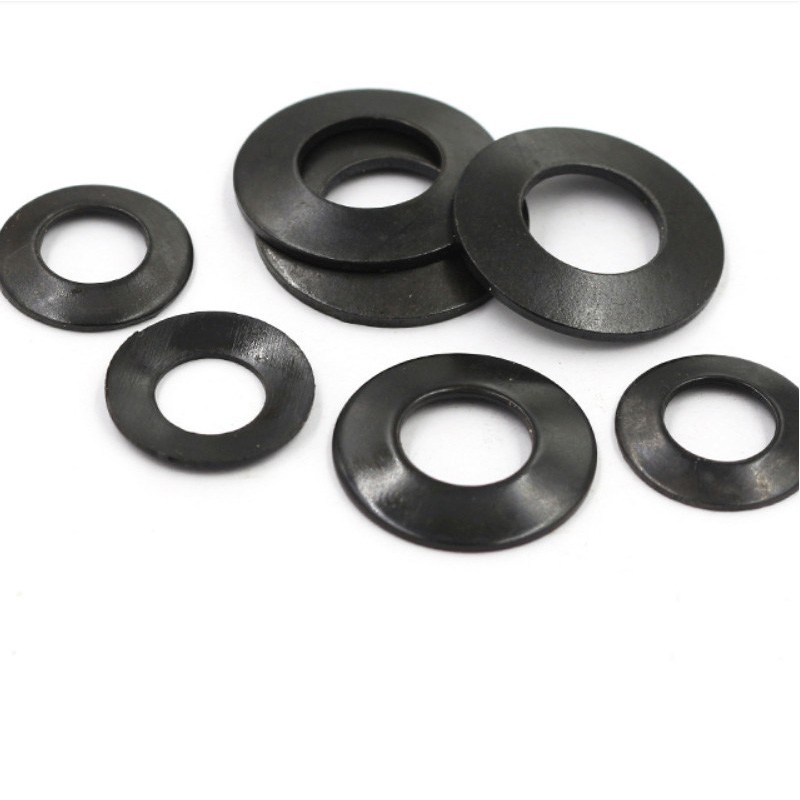

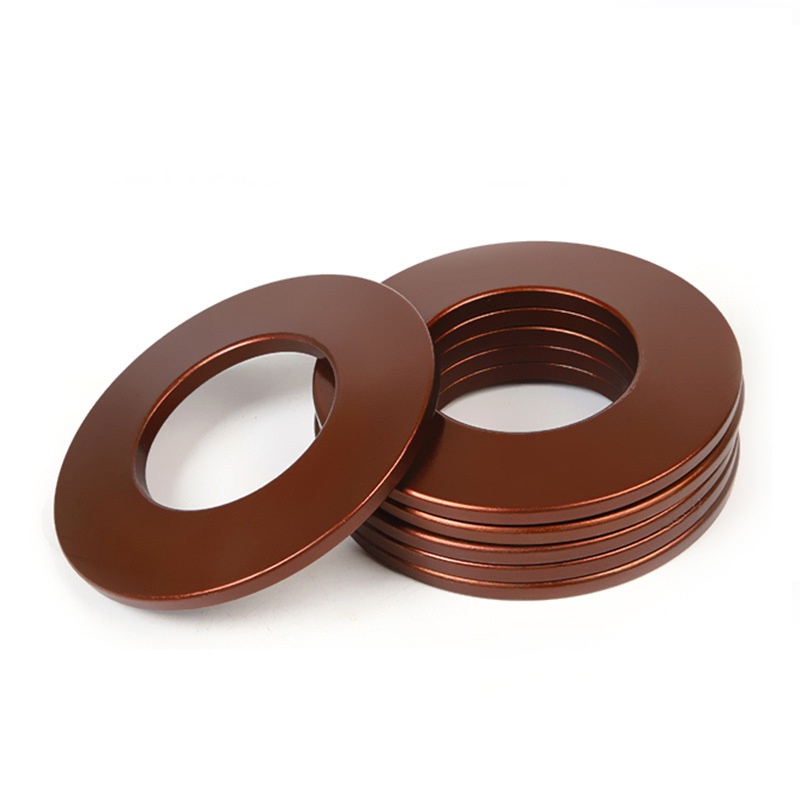

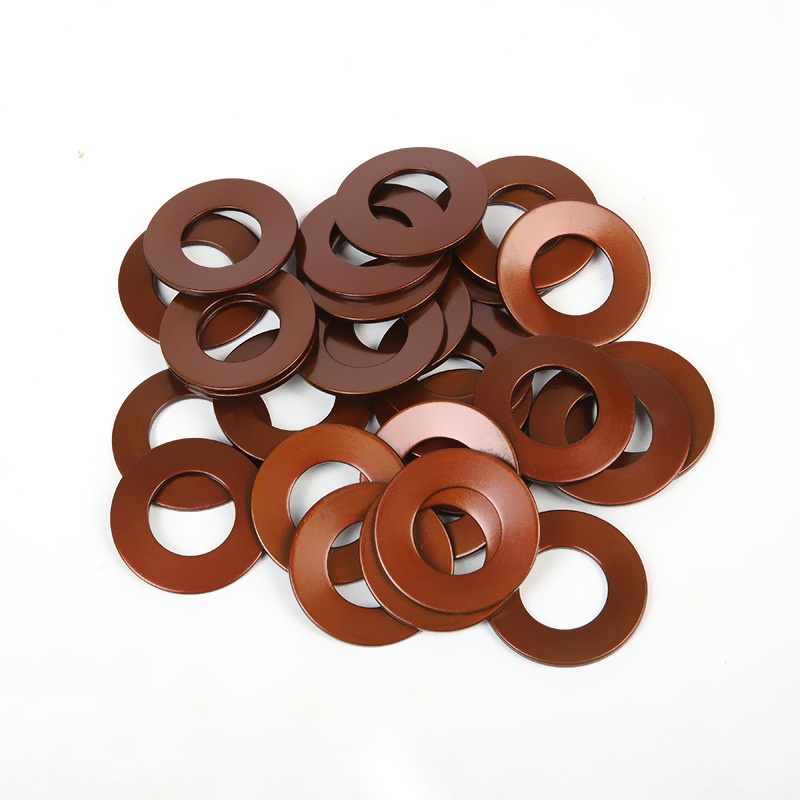

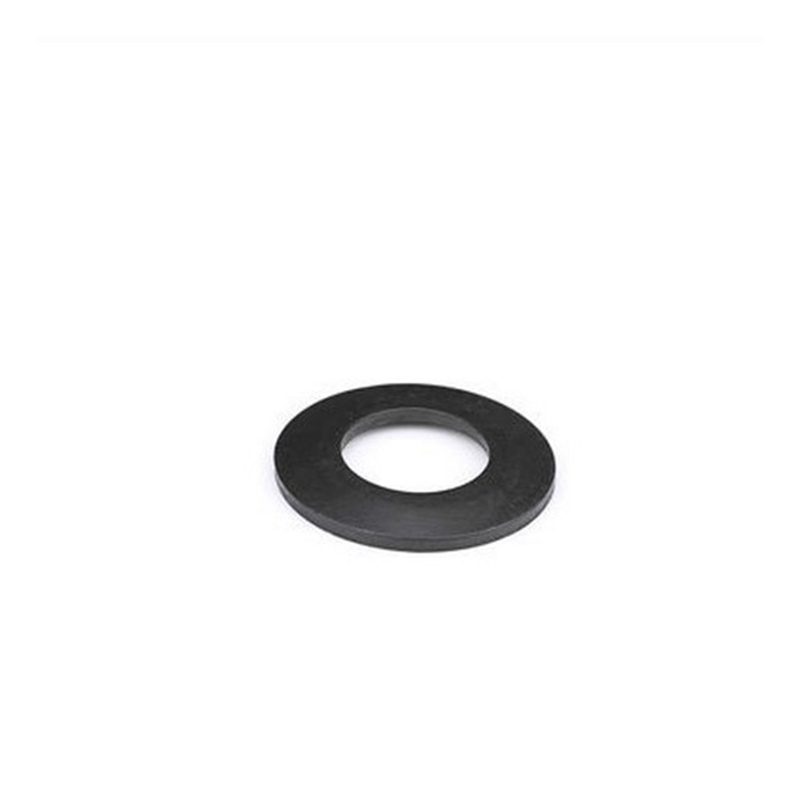

Powerfully Compressive Disc Shaped Spring

You will often find a Powerfully Compressive Disc Shaped Spring used in demanding applications like valves and heavy machinery. manufacturer trust Xiaoguo® for stacked disc spring assemblies that maintain reliability under extreme conditions.

Model:75LB

Send Inquiry

Product Description

In the construction industry, Powerfully Compressive Disc Shaped Spring are commonly used in large-scale structural projects, such as bridge support devices. They help to deal with the movement and vibration generated by the structure.

The diameters of these springs are usually quite large and they are made of high-strength steel. We deliver them directly from the factory, so the prices are very favorable. If you have a project-based order, we can provide you with customized quotations and discounts.

Most of the time, we will apply hot-dip galvanizing treatment to prevent long-term rusting. Due to their large size, we use heavy transportation methods to deliver them. The packaging design is to maintain their integrity under outdoor construction site conditions. Each spring also has certifications that comply with relevant structural engineering standards.

Product Details

In the railway transportation system, the Powerfully Compressive Disc Shaped Spring group is a key component of the suspension and buffering devices - they help to dampen vibrations and absorb energy. Their design enables them to be durable, even when subjected to dynamic and high loads.

We provide cost-effective solutions for railway suppliers. If you order 1500 or more, you can enjoy a bulk discount. The standard surface treatment is black oxide treatment. We have established in-depth cooperation with professional logistics companies. On the one hand, we guarantee the timeliness of delivery and ensure that orders are delivered on time; on the other hand, we carry out refined optimization of freight rates for bulk cargo transportation scenarios to reduce overall logistics costs.

The packaging is sturdy and waterproof. spring has undergone fatigue life and load characteristic tests, and all comply with railway industry standards.

Powerfully Compressive Disc Shaped Spring

Disc-shaped spring standard version

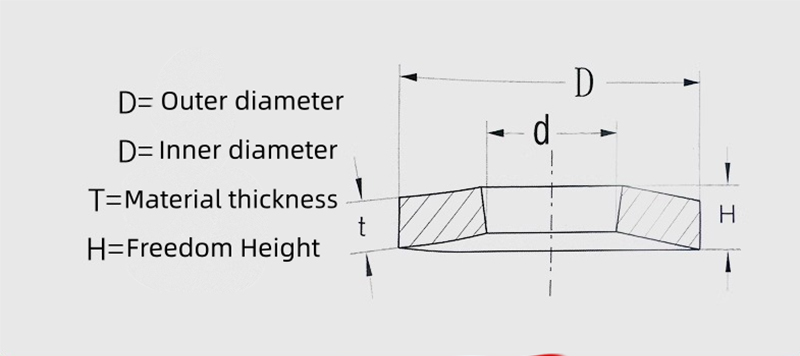

	Geometric parameters				Mechanical properties				Weight
	Geometric parameters				f=0.50h f=0.75h				Weight
	D	d	t	h/t	F	P	F	P	kg/100
C	8.0	4.2	0.20	0.45	0.125	33	0.188	39	0.06
B	8.0	4.2	0.30	0.55	0.125	89	0.188	118	0.09
A	8.0	4.2	0.40	0.65	0.100	147	0.150	210	0.11
C	10.0	5.2	0.25	0.55	0.150	48	0.225	58	0.11
B	10.0	5.2	0.40	0.70	0.150	155	0.225	209	0.18
A	10.0	5.2	0.50	0.75	0.125	228	0.188	325	0.22
D	12.0	6.2	0.60	0.95	0.175	394	0.262	552	0.39
C	12.5	6.2	0.35	0.80	0.225	130	0.338	151	0.25
B	12.5	6.2	0.50	0.85	0.175	215	0.262	293	0.36
A	12.5	6.2	0.70	1.00	0.150	457	0.225	660	0.51
C	14.0	7.2	0.35	0.80	0.225	106	0.338	123	0.31
B	14.0	7.2	0.50	0.90	0.200	210	0.300	279	0.44
A	14.0	7.2	0.80	1.10	0.150	547	0.225	797	0.71
C	16.0	8.2	0.40	0.90	0.250	131	0.375	154	0.47
B	16.0	8.2	0.60	1.05	0.225	304	0.388	410	0.70
A	16.0	8.2	0.90	1.25	0.175	697	0.262	1013	1.05
C	18.0	9.2	0.45	1.05	0.300	185	0.450	214	0.68
B	18.0	9.2	0.70	1.20	0.250	417	0.375	566	1.03
A	18.0	9.2	1.00	1.40	0.200	865	0.300	1254	1.48

If you need any other data, pleasecontact us. We will provide you with moredetailed parameters.

FAQ

Q:Can you provide custom-designed spring solutions?

A:Absolutely. We specialize in customizing the Powerfully Compressive Disc Shaped Spring to meet specific requirements. We can adjust dimensions, load capacity, material, and coatings. Provide us your specifications, and we will engineer the perfect spring for your application.
