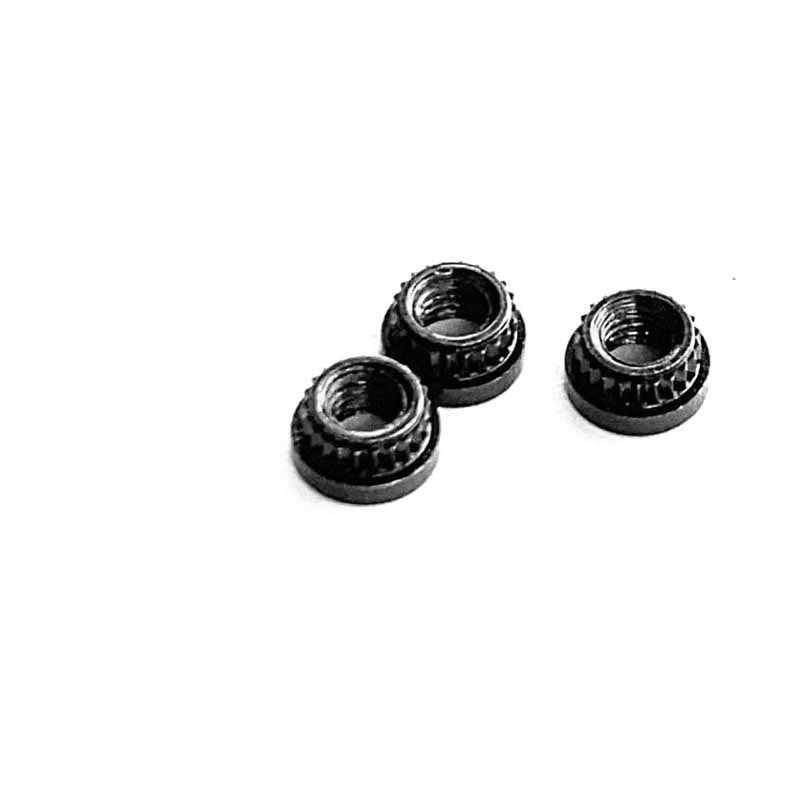

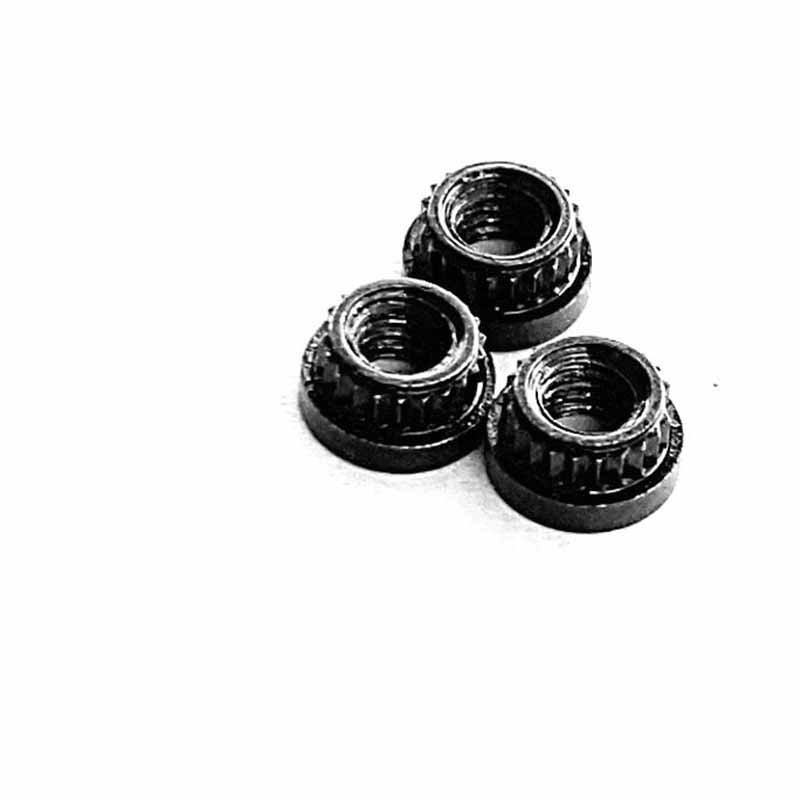

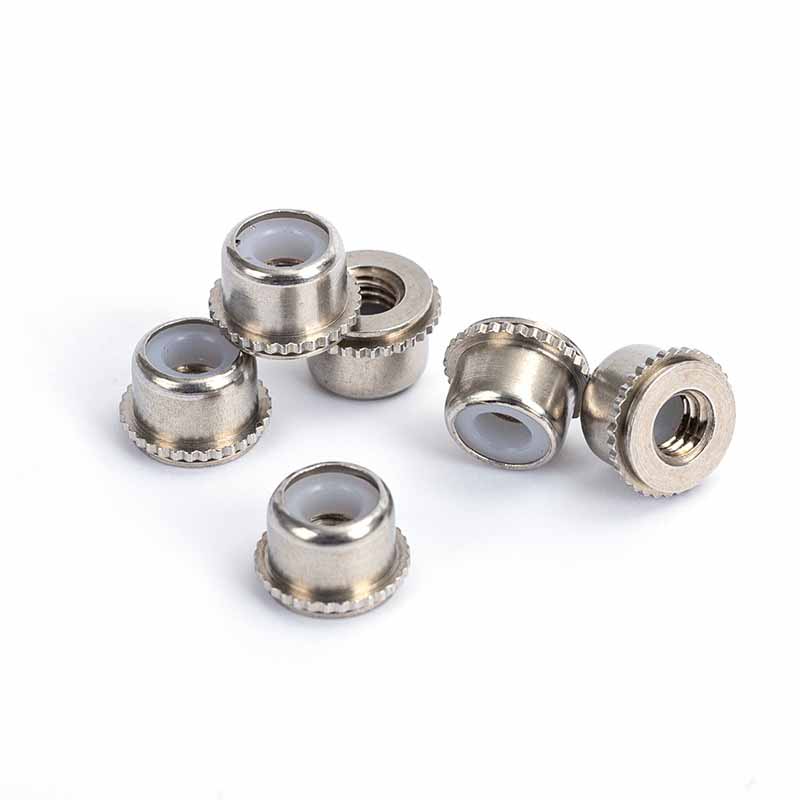

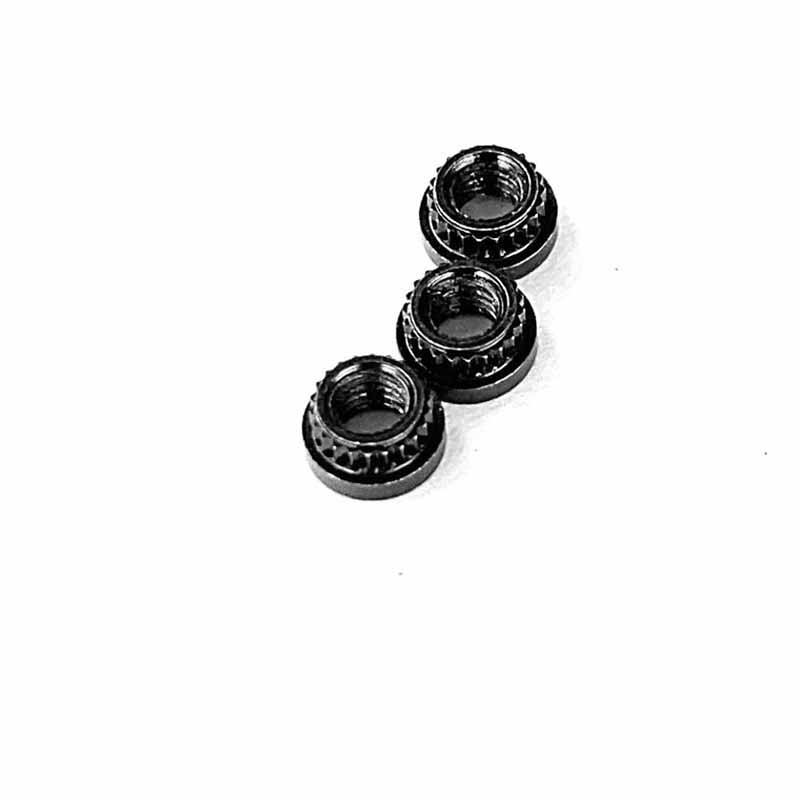

Micro Press-in Lock Nuts with Unified Threads

Self clinching nuts with unified threads are small and compact, making them suitable for use in small devices such as electronics, aerospace, and medical equipment. The Xiaoguo® factory is equipped with a variety of professional production equipment capable of mass production.

Send Inquiry

Product Description

The material of a self clinching nuts with unified threads really affects how strong it is, how much it weighs, and how well it resists the environment. aluminum alloy nuts, often 5056 or 5052, are light and resist corrosion pretty well. AISI 304 (A2) and 316 (A4) stainless steels are great at fighting rust and are stronger. Carbon steel ones are the strongest for the cost but need protective plating. When choosing the material for these riveted nuts, you have to balance what the application needs,like the load it has to handle, the environment it’s in, and weight limits.

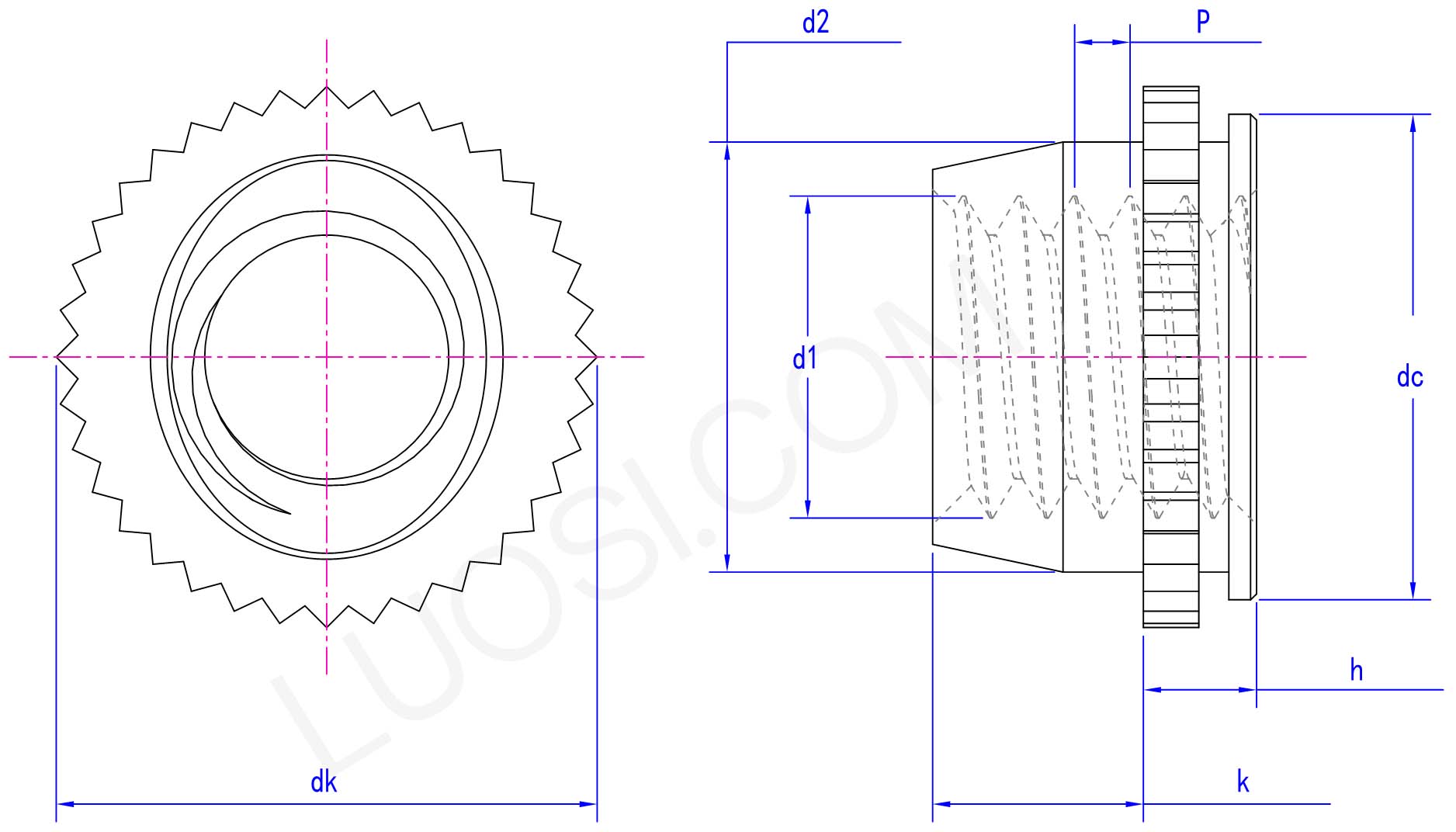

Product parameters

Mon	080-0	164-0	256-0	256-1
P	80	64	56	56
d1	#0	#1	#2	#2
d2 max	0.076	0.09	0.106	0.106
dc max	0.1095	0.1095	0.1435	0.1435
dc min	0.1045	0.1045	0.1385	0.1385
dk max	0.13	0.13	0.165	0.165
dk min	0.12	0.12	0.155	0.155
h max	0.02	0.02	0.02	0.02
k max	0.065	0.065	0.06	0.08
k min	0.05	0.05	0.065	0.065

Install

To install the self clinching nuts with unified threads, you need a special rivet nut tool that’s calibrated right, with a mandrel of the proper size. The tool pulls on the mandrel, making the nut body bend outward radially. That clamps the workpiece tight and forms the self-locking part that grabs onto the threads at the same time.

When it’s installed correctly, this riveted nut is really good at resisting vibration that would make it loosen, and it has high pull-out strength. Picking the right tool and setting it up properly is key. That way, you get the performance it’s designed for without messing up the nut or the material.

FAQ

Q: Can these nuts be used in thin sheet metal applications without causing distortion?

A: Yep, the self clinching nuts with unified threads are made for thin materials. Since it’s small, you don’t need as much force to install it, and it’s less likely to warp the panel compared to bigger fasteners. The way it rivets creates a strong, tight clinch in one spot. But make sure to check if the nut’s size and grip range match your material’s thickness,that way the joint stays solid.

A:This self clinching nuts with unified threads are made for thin materials. Its compact dimensions require minimal force during installation, allowing tightening with a lighter grip. Compared to larger fasteners, it is less likely to cause panel deformation. Its riveting method achieves a robust locking effect at a single point. Select material thicknesses that match the nut's dimensions and clamping range to ensure a secure connection.
