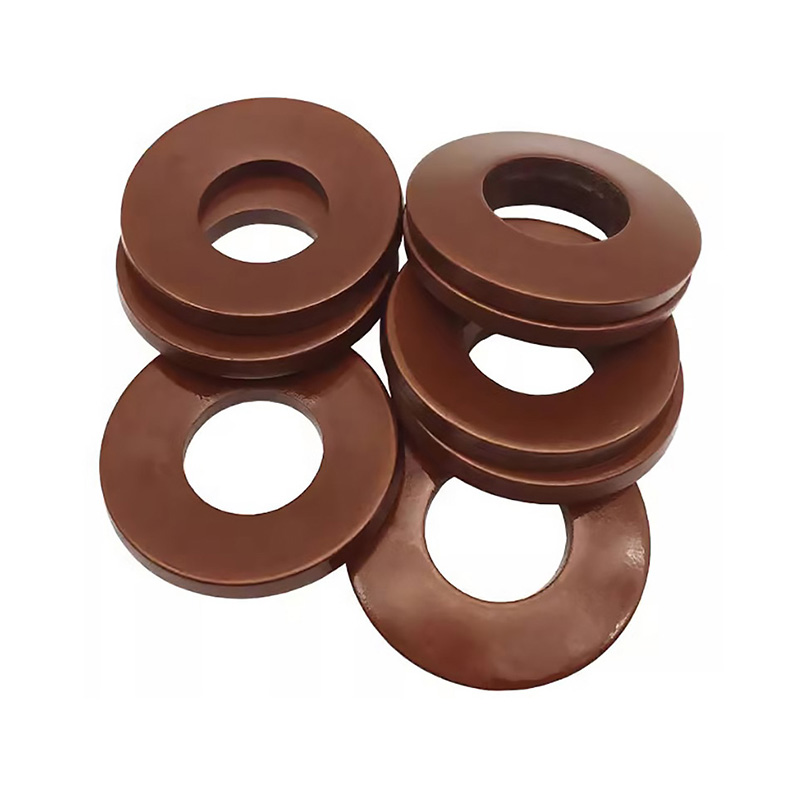

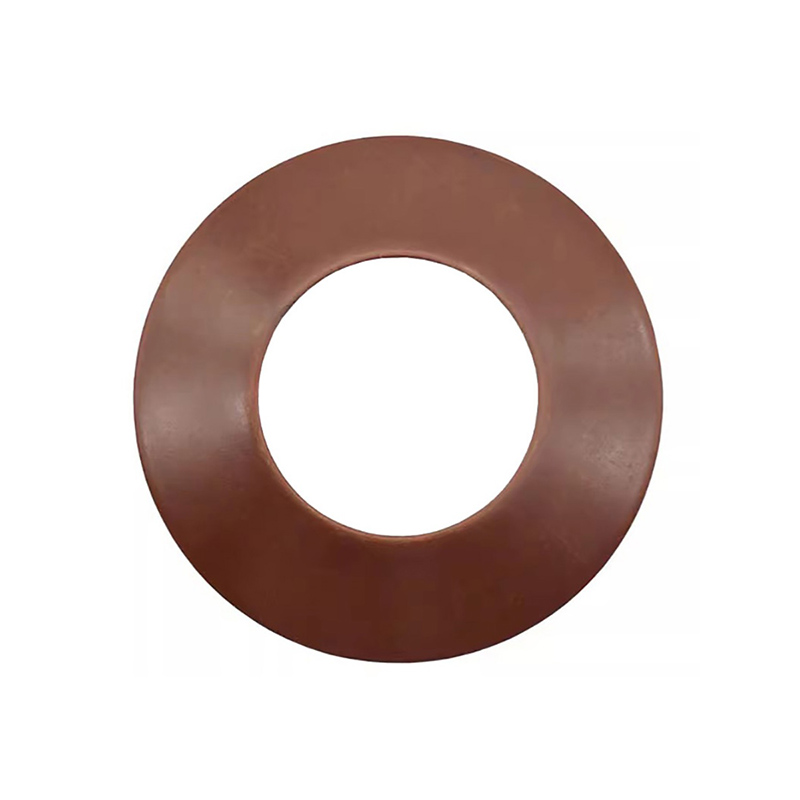

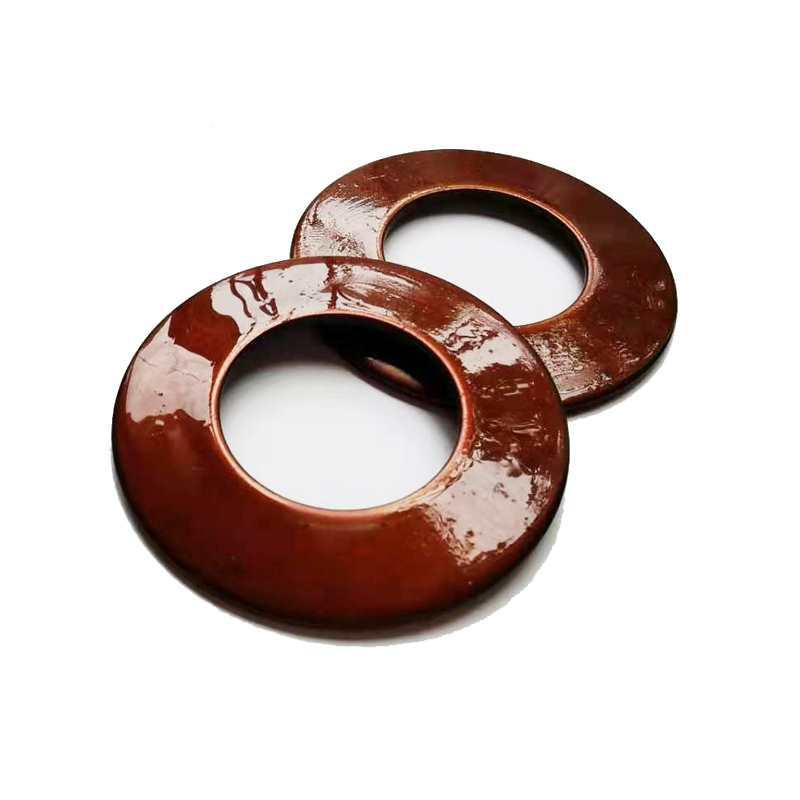

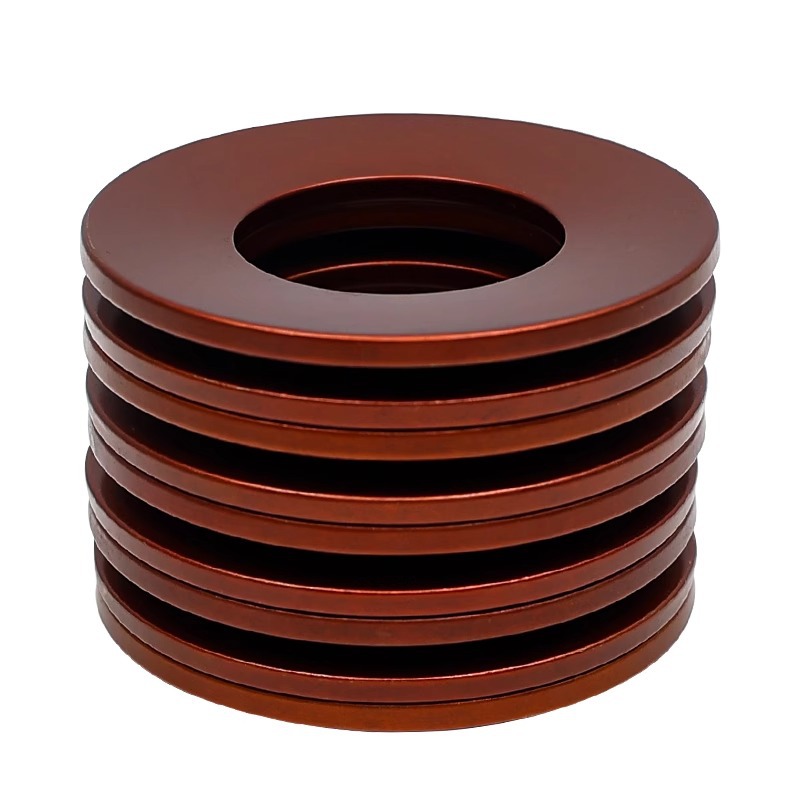

Low Profile Disc Shaped Spring

Low Profile Disc Shaped Spring is a conical-ring-shaped mechanical component. As a dedicated supplier of precision springs, the engineering team at Xiaoguo® designs such disc springs that deliver consistent force in limited spaces.

Model:75LB

Send Inquiry

Product Description

In the power generation turbines, Low Profile Disc Shaped Spring washers are used at the bolted connections. They can maintain the tension stable with temperature changes, thus ensuring that the connection parts will not loosen.

One of the key features of them is that they can generate a powerful force even in a very small axial space. We produce these washers in large quantities, so our prices are very competitive. If you order more than 3,000 units, you can enjoy a 7% discount. Usually, we use the default blue powder coating - this makes them easy to identify.

For transportation, we have two options: express delivery (if you need a quick delivery) or sea transportation (more cost-effective). Each spring will undergo size and material inspection, and we will also provide you with the necessary test reports.

Product Details

Low Profile Disc Shaped Spring are applied in precision medical equipment, such as surgical robots and implantable devices. These places have limited space and the force size needs to be kept constant. It is precisely these springs that play a role.

We carefully manufacture these springs from 316L stainless steel and other biocompatible materials that meet standards to ensure product performance and safety. Their surfaces are also electro-polished. Our pricing is targeted at the medical industry. If you are a certified original equipment manufacturer (OEM), you can also enjoy a discount.

We transport these springs in a dust-free packaging and use priority air services to ensure they can be delivered quickly. Quality control is very important here - every cylindrical spring will be 100% checked for its key dimensions and surface smoothness. They also strictly comply with the ISO 13485 standard.

Low Profile Disc Shaped Spring

Disc-shaped spring standard version

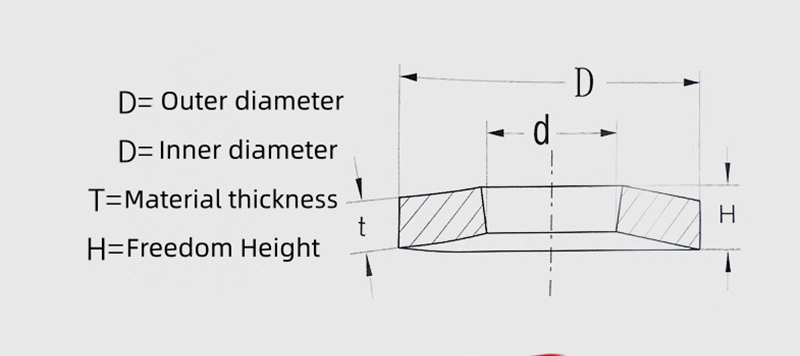

	Geometric parameters				Mechanical properties				Weight
	Geometric parameters				f=0.50h f=0.75h				Weight
	D	d	t	h/t	F	P	F	P	kg/100
C	8.0	4.2	0.20	0.45	0.125	33	0.188	39	0.06
B	8.0	4.2	0.30	0.55	0.125	89	0.188	118	0.09
A	8.0	4.2	0.40	0.65	0.100	147	0.150	210	0.11
C	10.0	5.2	0.25	0.55	0.150	48	0.225	58	0.11
B	10.0	5.2	0.40	0.70	0.150	155	0.225	209	0.18
A	10.0	5.2	0.50	0.75	0.125	228	0.188	325	0.22
D	12.0	6.2	0.60	0.95	0.175	394	0.262	552	0.39
C	12.5	6.2	0.35	0.80	0.225	130	0.338	151	0.25
B	12.5	6.2	0.50	0.85	0.175	215	0.262	293	0.36
A	12.5	6.2	0.70	1.00	0.150	457	0.225	660	0.51
C	14.0	7.2	0.35	0.80	0.225	106	0.338	123	0.31
B	14.0	7.2	0.50	0.90	0.200	210	0.300	279	0.44
A	14.0	7.2	0.80	1.10	0.150	547	0.225	797	0.71
C	16.0	8.2	0.40	0.90	0.250	131	0.375	154	0.47
B	16.0	8.2	0.60	1.05	0.225	304	0.388	410	0.70
A	16.0	8.2	0.90	1.25	0.175	697	0.262	1013	1.05
C	18.0	9.2	0.45	1.05	0.300	185	0.450	214	0.68
B	18.0	9.2	0.70	1.20	0.250	417	0.375	566	1.03
A	18.0	9.2	1.00	1.40	0.200	865	0.300	1254	1.48

If you need any other data, pleasecontact us. We will provide you with moredetailed parameters.

FAQ

Q:In what applications is a spring most suitable?

A:The Low Profile Disc Shaped Spring is ideal for applications with high loads and limited space, such as valves, pumps, clutches, and heavy machinery. Its unique structural design can provide excellent driving force in a compact axial space, making this spring the optimal solution for harsh working conditions.
