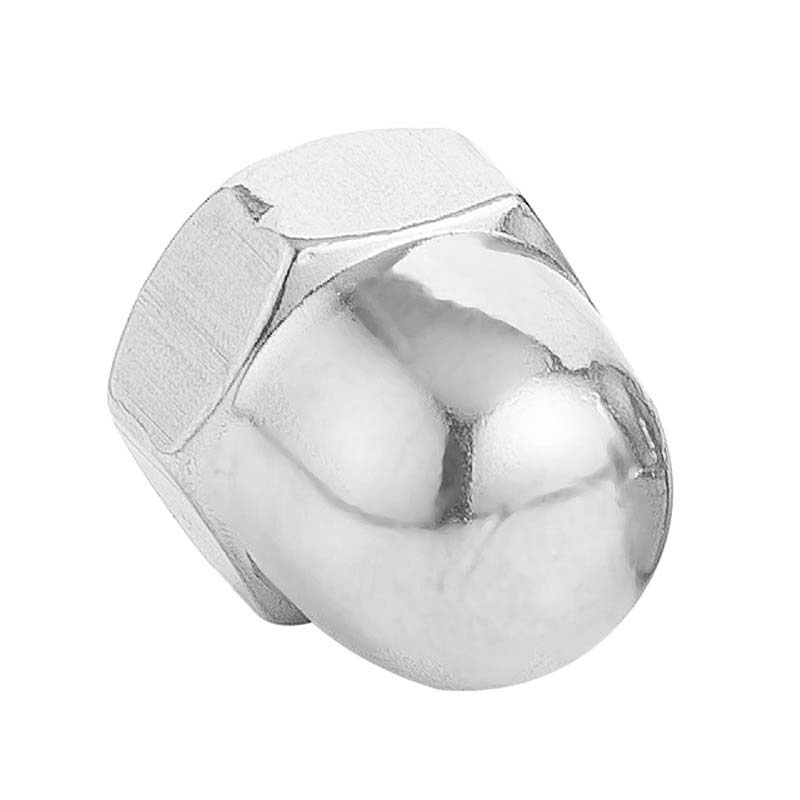

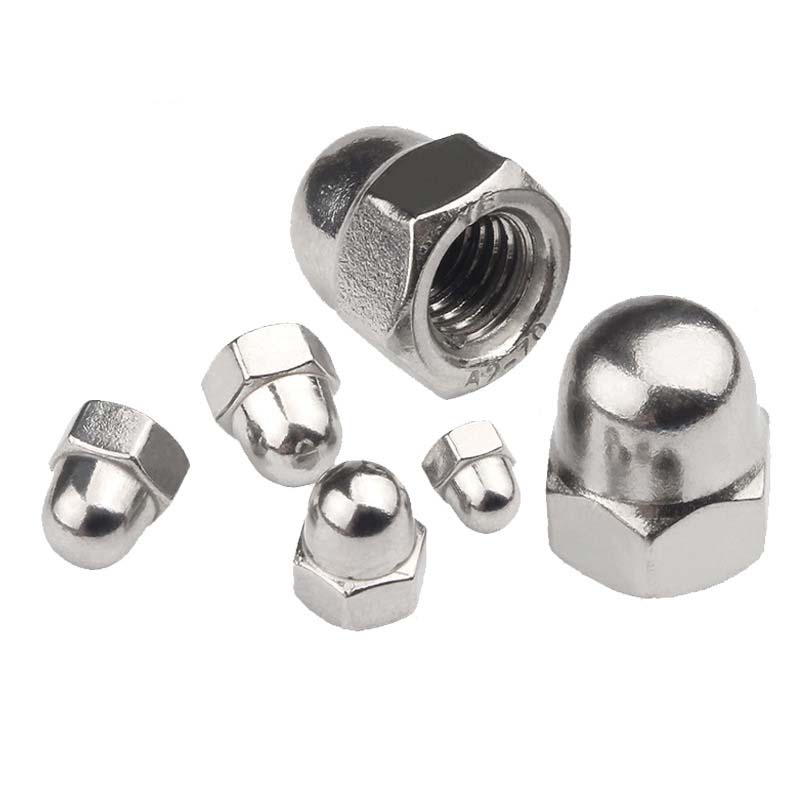

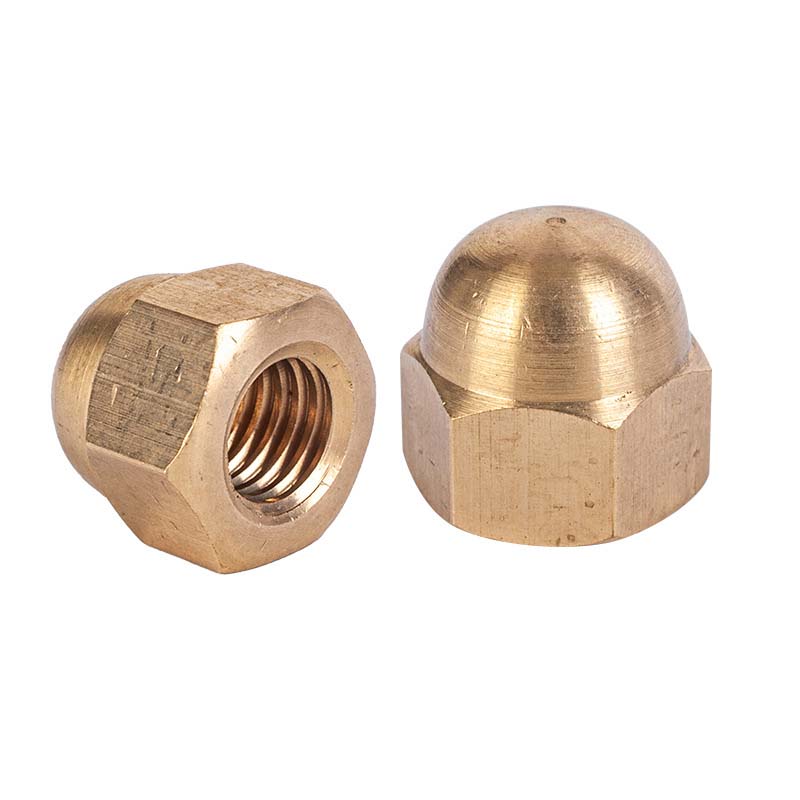

High Strength Large Hexagon Domed Cap Nuts

The dome-shaped head of high strength large hexagon domed cap nuts completely encloses the threaded end, providing excellent protection against tampering and corrosion.Xiaoguo® professional manufacturer supports customization, standard size or non-standard size.

Model:DIN 1587-1987

Send Inquiry

Product Description

High strength large hexagon domed cap nuts are made with medium or high carbon steel (like Grade 8, 10, or 12.9), alloy steel, or sometimes stainless steel (such as A2/A4 304/316). These solid materials are what make them strong.

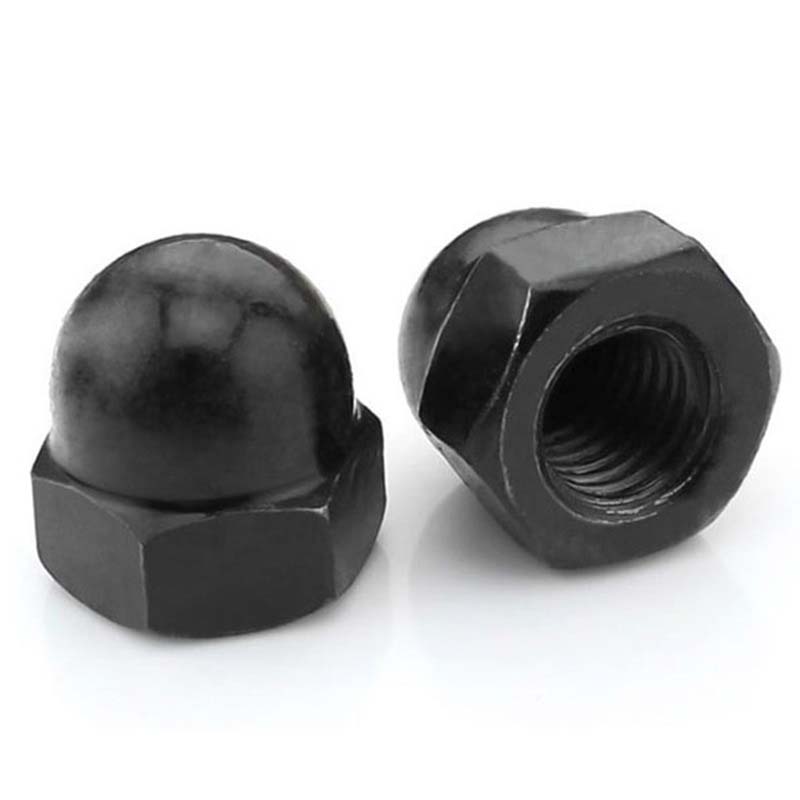

Use different surface treatments to extend the service life of nuts and improve rust resistance.Common treatments include galvanizing (clear, yellow, or black), hot-dip galvanizing, or dichromate conversion coatings.These treatments protect the nuts from rusting or environmental influences, ensuring they last longer even in harsh outdoor conditions.

Features

Besides being strong in terms of how they work, high strength large hexagon domed cap nuts also look decent and offer good protection. That smooth, rounded dome covers up the threads that stick out and the end of the fastener completely. This gets rid of sharp edges that might cut you or damage wires and cables. It also gives a clean, tidy look.

What’s more, these nuts do a good job of keeping dirt, moisture, and bits of debris from getting into the threads. They also stop rust and other stuff from getting in. That helps keep the bolted connection strong and makes them work better for longer, even when they’re out in the open.

Mon	M12	M14	M22
P	1.25\|1.5\|1.75	1.5\|2	1.5\|2\|2.5
dk max	18	21	33
e min	20.88	23.91	37.29
h max	22	25	39
h min	21.16	24.16	38
k max	10	11	18
k min	9.64	10.3	16.9
s max	19	22	34
s min	18.48	21.16	33
t min	15.65	17.65	28.58
t max	16.35	18.35	29.42

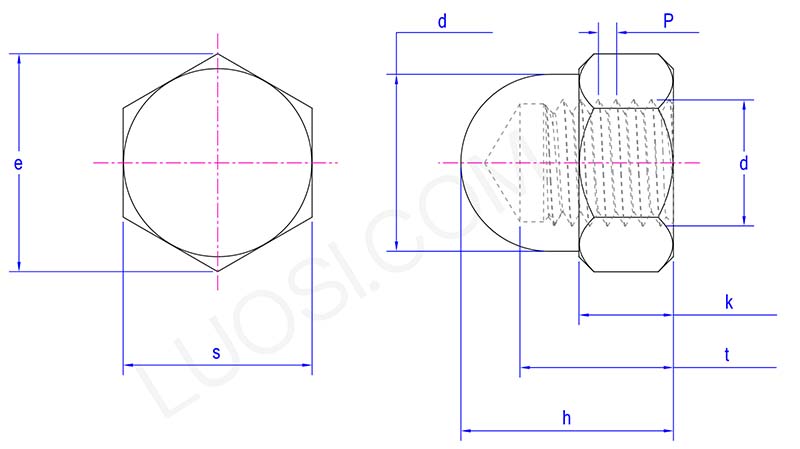

High strength large hexagon domed cap nuts parameter

Suitable for harsh marine environments

To keep that high strength intact, our high strength large hexagon domed cap nuts come with different platings. If you need them to resist rust really well in marine environments, we’d definitely suggest zinc-nickel plating (this one meets military specs) or hot-dip galvanizing. These coatings keep the nut in good shape without hurting its important high strength, even when there’s salt spray.
