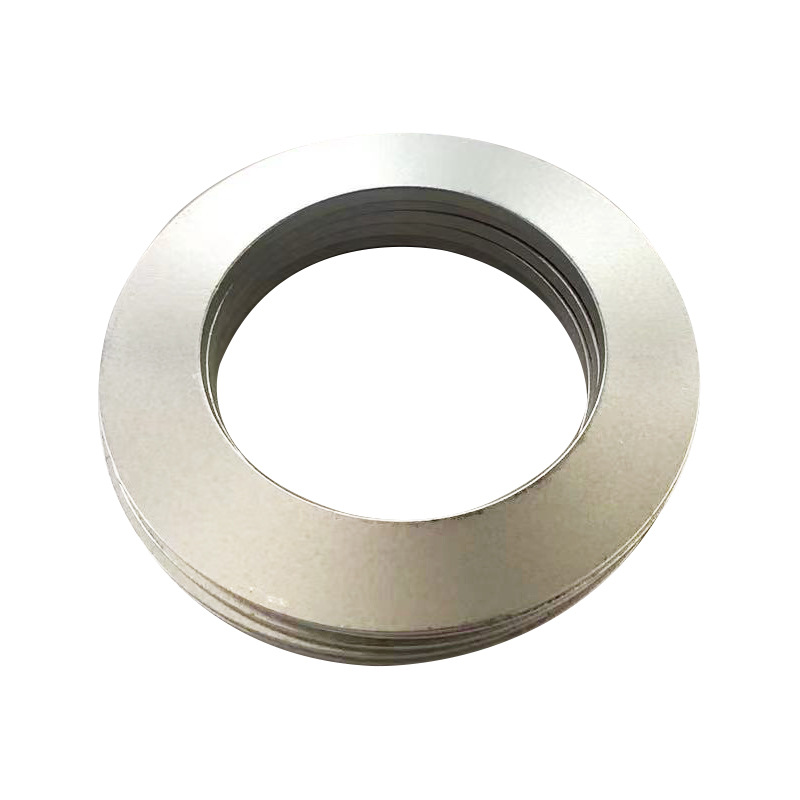

Creep Resistant Disc Shaped Spring

Creep Resistant Disc Shaped Spring, provided by manufacturer Xiaoguo®, specializes in disc spring manufacturing and delivers high-load solutions for global industrial applications. Engineers value it for its high load capacity in a compact space.

Model:75LB

Send Inquiry

Product Description

In safety-critical equipment such as pressure relief valves and fire suppression systems, the Creep Resistant Disc Shaped Spring must function reliably - this is of utmost importance. Their design purpose is to provide specific bursting or activation pressures.

For safety equipment manufacturers, our prices are competitive. If you are making large-scale purchases for government contracts, we can offer special discounted prices. These springs are usually color-coded to indicate their pressure ratings.

The transportation is fast and you can track their whereabouts. For your peace of mind, our packaging features a tamper-evident seal that clearly indicates if the product has been opened prior to your purchase. Each spring undergoes 100% testing and comes with certifications that meet the required performance specifications.

Product Benefits

For any custom engineering solutions and prototype designs in any industry, you can customize Creep Resistant Disc Shaped Spring - such as changing the material, size or coating. Its main advantage is that even if the design is very compact, it can still provide strong force.

We offer competitive prices for custom orders, regardless of the size of the order. If you need mass production, you can also enjoy discounts. There are various colors and coatings to choose from.

We conduct rapid prototype design and can deliver the products with expedited service to ensure that you can receive the products as soon as possible. Each customized round spring will undergo first article inspection (FAI). We will also provide you with detailed inspection reports and material certificates.

Creep Resistant Disc Shaped Spring

Disc-shaped spring standard version

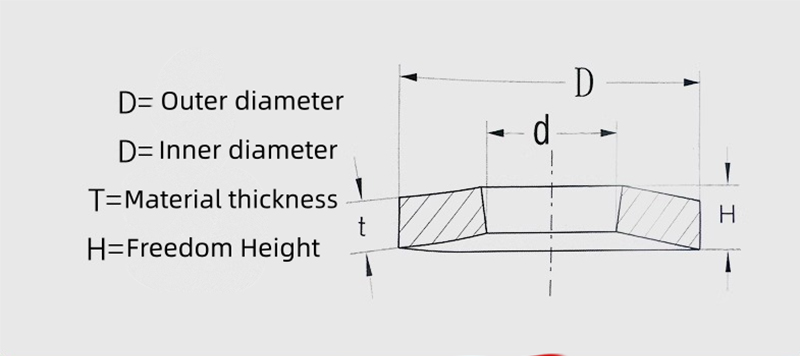

	Geometric parameters				Mechanical properties				Weight
	Geometric parameters				f=0.50h f=0.75h				Weight
	D	d	t	h/t	F	P	F	P	kg/100
C	8.0	4.2	0.20	0.45	0.125	33	0.188	39	0.06
B	8.0	4.2	0.30	0.55	0.125	89	0.188	118	0.09
A	8.0	4.2	0.40	0.65	0.100	147	0.150	210	0.11
C	10.0	5.2	0.25	0.55	0.150	48	0.225	58	0.11
B	10.0	5.2	0.40	0.70	0.150	155	0.225	209	0.18
A	10.0	5.2	0.50	0.75	0.125	228	0.188	325	0.22
D	12.0	6.2	0.60	0.95	0.175	394	0.262	552	0.39
C	12.5	6.2	0.35	0.80	0.225	130	0.338	151	0.25
B	12.5	6.2	0.50	0.85	0.175	215	0.262	293	0.36
A	12.5	6.2	0.70	1.00	0.150	457	0.225	660	0.51
C	14.0	7.2	0.35	0.80	0.225	106	0.338	123	0.31
B	14.0	7.2	0.50	0.90	0.200	210	0.300	279	0.44
A	14.0	7.2	0.80	1.10	0.150	547	0.225	797	0.71
C	16.0	8.2	0.40	0.90	0.250	131	0.375	154	0.47
B	16.0	8.2	0.60	1.05	0.225	304	0.388	410	0.70
A	16.0	8.2	0.90	1.25	0.175	697	0.262	1013	1.05
C	18.0	9.2	0.45	1.05	0.300	185	0.450	214	0.68
B	18.0	9.2	0.70	1.20	0.250	417	0.375	566	1.03
A	18.0	9.2	1.00	1.40	0.200	865	0.300	1254	1.48

If you need any other data, pleasecontact us. We will provide you with moredetailed parameters.

FAQ

Q:What international standards do your spring products comply with?

A:Our standard Creep Resistant Disc Shaped Spring production primarily complies with DIN 2093, which defines quality, dimensions, and tolerances. We can also manufacture the spring to meet other specific international standards or customer-provided specifications upon request.
