Structurally Sound Locking nut

Xiaoguo maintains extensive inventory for quick delivery worldwide. The Structurally Sound Locking nut available from Xiaoguo comes in various sizes and specifications to meet different project needs.

Send Inquiry

Product Description

For medical equipment and implants, Structurally Sound Locking nut are used for spinal fixation and other orthopedic systems. They need to be biocompatible and precise. These nuts are made of titanium or stainless steel, with smooth and clean surfaces. We offer discounted prices to medical original equipment manufacturers and give discounts based on projects. They are packaged in sterile and tamper-proof containers. We use priority air services to ensure rapid delivery. Each nut undergoes material purity and biomechanical tests. We have complete traceability records for each product and provide ISO 13485 certification.

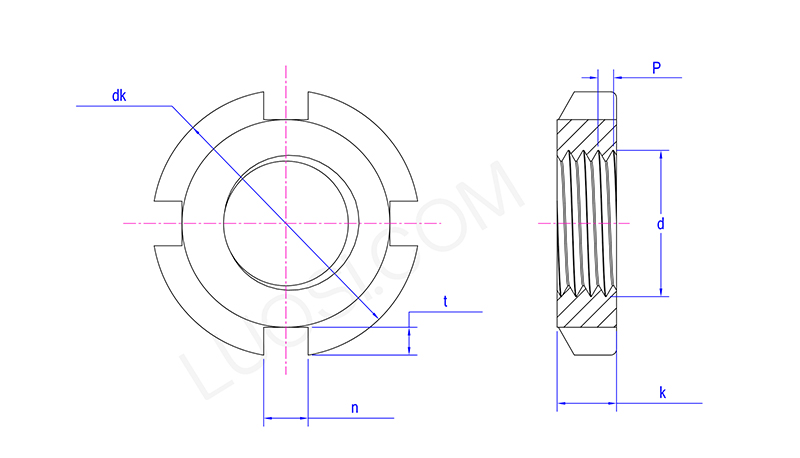

Mon	M55	M60	M65	M70	M75	M80	M85	M90	M95	M100	M105
P	2	2	2	2	2	2	2	2	2	2	2
dk max	75	80	85	92	98	105	110	120	125	130	140
dk min	74.54	79.54	84.46	91.46	97.46	104.46	109.46	119.46	124.37	129.37	139.37
k max	11	11	12	12	13	15	16	16	17	18	18
k min	10.73	10.73	11.73	11.73	12.73	14.73	15.73	15.73	16.73	17.73	17.73
n max	7.18	7.18	7.18	8.18	8.18	8.18	8.18	10.18	10.18	10.18	12.215
n min	6.82	6.82	6.82	7.82	7.82	7.82	7.82	9.82	9.82	9.82	11.785
t max	4	4	4	4.7	4.7	4.7	4.7	5.2	5.2	5.2	6.2
t min	3	3	3	3.5	3.5	3.5	3.5	4	4	4	5

In the fields of architecture and civil engineering, heavy Structurally Sound Locking nuts are used in steel structure factories and bridge construction. They can withstand dynamic loads and prevent failures at the connection points. These nuts are usually large and hexagonal, made of high-strength carbon steel. For large projects, we offer discounted prices - if the order quantity exceeds 15,000, a 10% discount can be enjoyed. They are standardly treated with hot-dip galvanizing to prevent rust. We ship by sea or rail, as this method is more cost-effective. The packaging is sturdy and waterproof. We conduct load tests to check the quality, and the products comply with ASTM or DIN standards.

Q:What temperature and chemical resistance can be expected from your Structurally Sound Locking nut with a nylon insert?

A: For our nylon insert nut, the standard nylon ring is effective from approximately -40°C to +120°C. Beyond this, high-temperature alternatives are available. The nylon offers good resistance to oils, fuels, and solvents. For highly corrosive chemical environments, we recommend an all-metal nut or specifying a stainless steel nut with a chemically inert insert material to guarantee performance and integrity.

Market	Revenue(Previous Year)	Total Revenue (%)
North America	Confidential	31
South America	Confidential	2
Eastern Europe	Confidential	15
Southeast Asia	Confidential	4
Africa	Confidential	2
Oceania	Confidential	2
Mid East	Confidential	3
Eastern Asia	Confidential	18
Western Europe	Confidential	16
Central America	Confidential	8
Northern Europe	Confidential	1
Southern Europe	Confidential
South Asia	Confidential	6
Domestic Market	Confidential	5
