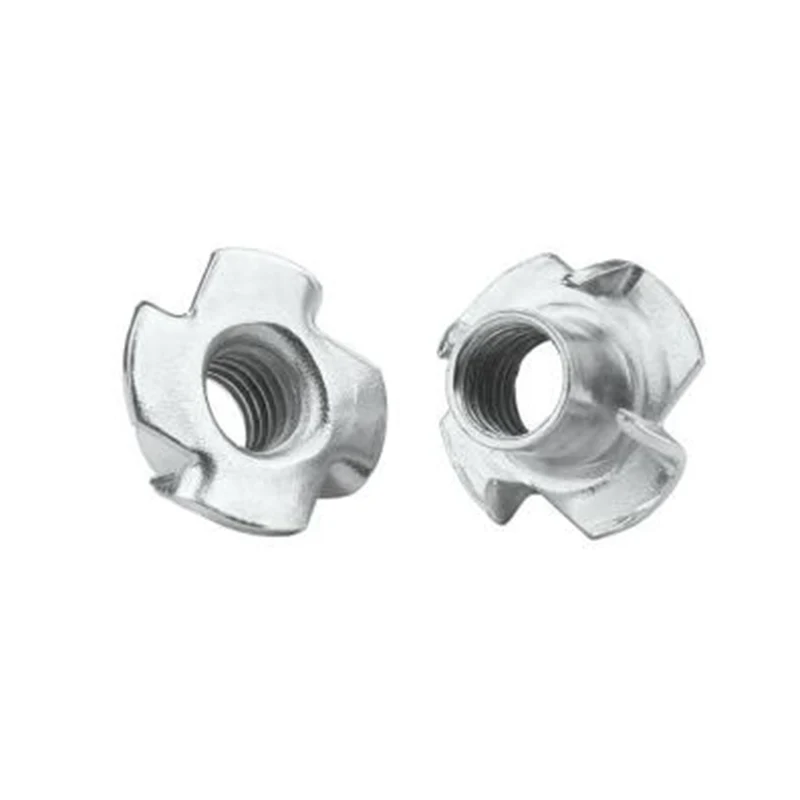

Four-Jaw Nut

This Xiaoguo® Four-jaw nutr is a part that closely connects the mechanical equipment. Through the inner thread, nuts and bolts of the same specifications can be connected together. For example, the nut of M4-P0.7 can only be connected with bolts of M4-P0.7 series (in the nut,M4 refers to the inner diameter of the nut is about 4mm, and 0.7 refers to the distance between two thread teeth is 0.7mm); American products are the same, for example, a 1/4-20 nut can only be matched with a 1/4-20 screw (the inside diameter of the 1/4 finger nut is about 0.25 inch,20 fingers per inch, there are 20 teeth).Each part of the nut has a staggered CAM, because the internal wedge design slope Angle is greater than the nut Angle of the bolt, this combination will be tightly fastened into a whole, when there is vibration, the nut convex part of each other staggered, resulting in lifting tension, so as to achieve the effect of anti-loosening.

Xiaoguo Four-jaw Nut Parameter (Specification)

Xiaoguo Four-jaw Nut Feature And Application

The four-jaw nut can be divided into two kinds of full-tooth four-jaw nut and half-tooth four-jaw nut. But choose a nut height close to the thickness of the plate

Xiaoguo Four-jaw Nut Details

This Xiaoguo Four-jaw nut in line with international standards, regular inspection qualified, thread neat, the surface is smooth and smooth without burrs Product manufacturing precision, corrosion resistance and high strength.If there is any other need for the product, we can also provide customized services.
